| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

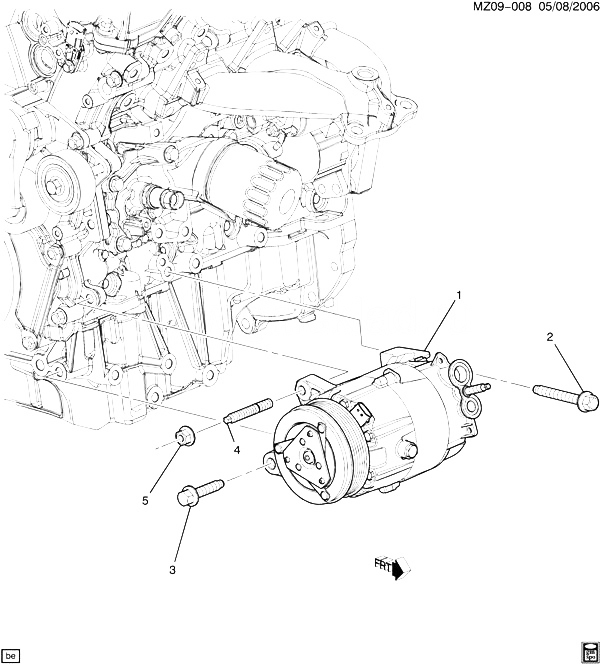

| 001 |
22951491 |
COMPRESSOR KIT, A/C (SEE GROUP 09.000 A/C COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-22283) |
N (LFW, LFX) |
2013-2013 |
01 |
| 002 |
11588694 |
BOLT, HEX-HD, M8X1.25X120.8, DOG-PT, 8.8, GMW3359 (A/C CMPR) |
|
2010-2013 |
01 |
| 003 |
11588743 |
BOLT, HFH, M10X1.5X55, 25.7 THD, 22.3 OD, 10.9 STL, GMW3359 (A/C CMPR) |
|
2010-2013 |
01 |
| 004 |
12560892 |
STUD, A/C CMPR (M10X1.5X71MM) |
N (LFW, LFX) |
2012-2013 |
01 |
| 005 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/C CMPR) (2.383) |
|
2010-2013 |
01 |
