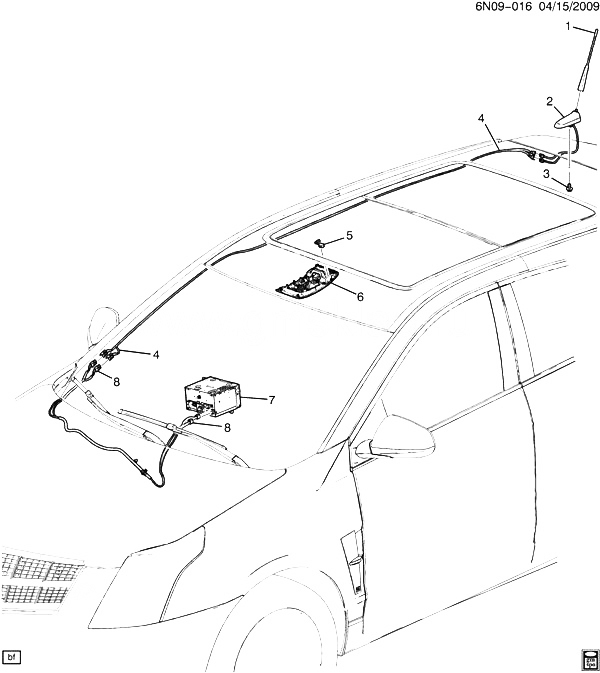

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22783398 |
ANTENNA, RDO (280MM) (ACDelco #22783398) |
N |
2013-2013 |
01 |
| 002 |
20895616 |
BASE, RDO ANT (INCLS 3) (REPLACES ALL COLORS, PAINT TO MATCH) (ACDelco #20895616) |
N (UY4) (EXC UE1, U2K, U2M) |
2013-2013 |
01 |
| 002 |
20870311 |
BASE, RDO ANT (INCLS 3) (BLACK) (ACDelco #20870311) |
N (RAO) (EXC UE1, UY4, U2K, U2M) |
2013-2013 |
01 |
| 002 |
20870338 |
BASE, RDO ANT (INCLS 3) (BLACK) (ACDelco #20870338) |
N (UE1) (EXC U2K, U2M) |
2013-2013 |
01 |
| 003 |
|
BOLT, RDO ANT (PART OF 2) |
|
2013-2013 |
|
| 004 |
20907709 |
CABLE, RDO NAVIGATION ANT (LOCATED ON RH A-PILLAR) (ACDelco #20907709) |
N (UY4) (EXC UE1) |
2013-2013 |
01 |
| 004 |
20907709 |
CABLE, RDO NAVIGATION ANT (LOCATED ON RH A-PILLAR) (9.647) (ACDelco #20907709) |
N (UY4) (EXC UE1) |
2013-2013 |
01 |
| 005 |
15241529 |
MICROPHONE, MOBILE TEL (PART OF 6) (2-WAY CAVITY) |
N (UE1) |
2010-2013 |
01 |
| 005 |
13242355 |
MICROPHONE, MOBILE TEL (PART OF 6) (3-WAY CAVITY) |
N (UA2, UTC) (EXC UE1, UG1, U19) |
2013-2013 |
01 |
| 006 |
|
CONSOLE, RF (INCLS 5) (SEE GROUP 10.000 CONSOLE/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 007 |
|
RADIO, AM/FM STEREO VIDEO DISC PLYR NAVNMP3HARD DR (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 008 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) |
|
2013-2013 |
|
