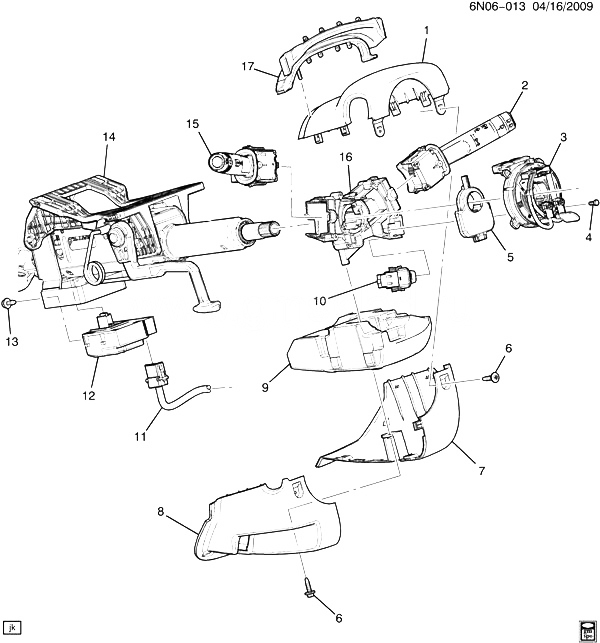

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22774123 |
SHROUD, STRG COL (BROWNSTONE) (UPPER) |
N (4AF) |
2012-2013 |
01 |
| 001 |
22774122 |
SHROUD, STRG COL (BLACK) (UPPER) |
N (4AA, 4AP, 4A5) |
2013-2013 |
01 |
| 002 |
22800194 |
SWITCH, WSW WSWA (ACDelco #22800194) |
N |
2012-2013 |
01 |
| 003 |
22880739 |
COIL, STRG WHL AIRBAG (CHOCO SAPELE) (16 CIRCUIT) |
N (44F) |
2013-2013 |
01 |
| 003 |
22942867 |
COIL, STRG WHL AIRBAG (USED WITH IMPROVED MOLEX DESIGN AIRBAG CONNECTOR FOR BETTER INSTALLATION.) (HAS 14 CIRCUIT WIRE CONNECTIONS) |
N |
2010-2013 |
01 |
| 004 |
11569833 |
BOLT, STRG WHL AIRBAG COIL (M3X12) (PHILLIPS HEAD) (2.188) |
N |
2010-2013 |
04 |
| 005 |
13584209 |
SENSOR, STRG ANGLE |
N |
2013-2013 |
01 |
| 005 |
13589257 |
SENSOR, STRG ANGLE |
NG (EXC UGN) |
2013-2013 |
01 |
| 006 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (STRG COL TR CVR) |
|
2010-2013 |
03 |
| 007 |
|
SHROUD, STRG COL (*KIT1) |
|
2010-2013 |
|
| 008 |
|
SHROUD, STRG COL (*KIT1) |
|
2010-2013 |
|
| 009 |
|
FILLER, STRG COL SHROUD LWR (*KIT1) |
|
2010-2013 |
|
| 010 |
20962925 |
SWITCH, ELEK BRK CONT BRK PED (ACDelco #20962925) |
N (JF4) |
2011-2013 |
01 |
| 011 |
|
HARNESS, I/P WRG (SEE GROUP 10.000 INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 012 |
23103652 |
MODULE, STRG COL LK CONT |
N (ULS) |
2013-2013 |
01 |
| 013 |
11611150 |
BOLT, STRG COL LK CONT MDL |
N (ULS) |
2010-2013 |
02 |
| 014 |
22961229 |
COLUMN, STRG (SEE GROUP 06.000 STEERING SYSTEM RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) |
N (ULS) |
2013-2013 |
01 |
| 014 |
22961230 |
COLUMN, STRG (SEE GROUP 06.000 STEERING SYSTEM RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) |
N (EXC ULS) |
2013-2013 |
01 |
| 015 |
22800195 |
SWITCH, T/SIG (ACDelco #22800195) |
N |
2013-2013 |
01 |
| 016 |
20934236 |
BRACKET, T/SIG SW |
N |
2010-2013 |
01 |
| 017 |
20861413 |
SEAL, STRG COL (BROWNSTONE) (HOUSING/SEAL UPPER) |
N (4AF) |
2010-2013 |
01 |
| 017 |
20847258 |
SEAL, STRG COL (BLACK) (HOUSING/SEAL UPPER) |
N (4AA, 4AP, 4A5) |
2013-2013 |
01 |
| K01 |
22863470 |
SHROUD, STRG COL (INCLS 7-9) (BLACK) (LOWER) |
N (JF4, 4AA, 4AP, 4A5) |
2013-2013 |
01 |
| K01 |
22863471 |
SHROUD, STRG COL (INCLS 7-9) (BROWNSTONE) (LOWER) |
N (JF4, 4AF) |
2013-2013 |
01 |
| K01 |
22863474 |
SHROUD, STRG COL (INCLS 7-9) (BLACK) (LOWER) |
N (4AA, 4AP, 4A5) (EXC JF4) |
2013-2013 |
01 |
| K01 |
22863475 |
SHROUD, STRG COL (INCLS 7-9) (BROWNSTONE) |
N (4AF) (EXC JF4) |
2013-2013 |
01 |
