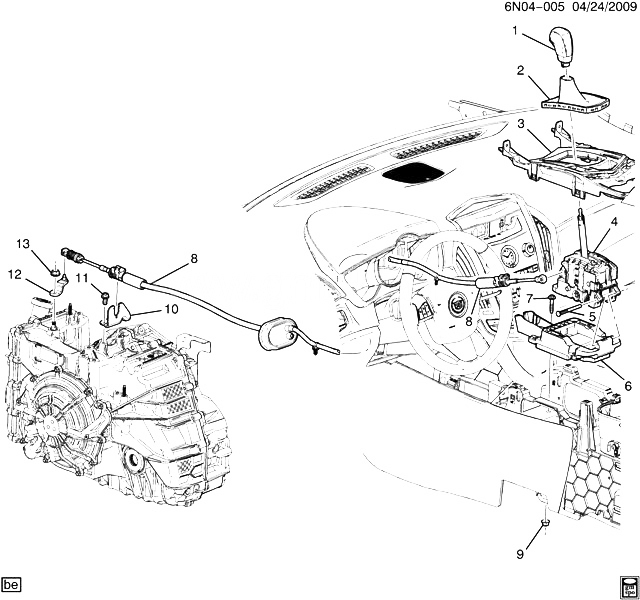

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22966325 |
KNOB, A/TRNS CONT LVR (CODE 7832, 6325) (INCLS 2) (BLACK) |
N (M7U, M7W, 4AA, 4AP, 4A5) (EXC 5AD, 5BS) |
2013-2013 |
01 |
| 001 |
22966326 |
KNOB, A/TRNS CONT LVR (CODE 7831, 6326) (INCLS 2) (BLACK) |
N (M7U, M7W, 4AP, 4A5, 5BS) |
2013-2013 |
01 |
| 001 |
22967254 |
KNOB, A/TRNS CONT LVR (CODE 7834, 7254) (INCLS 2) (BLACK) |
N (M7U, M7W, 4AA, 4A5, 5AD) |
2013-2013 |
01 |
| 001 |
22967255 |
KNOB, A/TRNS CONT LVR (CODE 7833, 7255) (INCLS 2) (BROWNSTONE) |
N (M7U, M7W, 4AF, 5AD) |
2013-2013 |
01 |
| 001 |
22967256 |
KNOB, A/TRNS CONT LVR (INCLS 2) (BROWNSTONE) |
N (M7U, M7W, 4AF, 4A5) (EXC 5AD, 5BS) |
2013-2013 |
01 |
| 002 |
|
BOOT, A/TRNS CONT (PART OF 1) |
|
2013-2013 |
|
| 003 |
22857176 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (BLACK) |
N (4AA, 4AP) |
2013-2013 |
01 |
| 003 |
22857177 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (SHALE) |
N (4AF, 4A5) |
2013-2013 |
01 |
| 003 |
22881258 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (TITANIUM) |
N (4AP) |
2013-2013 |
01 |
| 003 |
22881259 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (TITANIUM) |
N (4AP) |
2013-2013 |
01 |
| 004 |
20951250 |
CONTROL, A/TRNS (INCLS 5, 6) |
NG (LFW, LFX) |
2012-2013 |
01 |
| 004 |
20951250 |
CONTROL, A/TRNS (INCLS 5, 6) (4.004) |
NG (LFW, LFX) |
2012-2013 |
01 |
| 005 |
|
PIN, A/TRNS CONT BRKT (PART OF 4) |
|
2013-2013 |
|
| 006 |
|
BRACKET, A/TRNS CONT (PART OF 4) |
|
2013-2013 |
|
| 007 |
11589044 |
BOLT, HEX-HD, W/ WA, M6X1.0X43.0, 8.8, GMW3359 (A/TRNS CONT) |
|
2010-2013 |
04 |
| 008 |
20999986 |
CABLE, A/TRNS RANGE SEL LVR |
N (LFW, LFX, M7U, M7W) |
2013-2013 |
01 |
| 009 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (A/TRNS CONT) |
|
2010-2013 |
04 |
| 010 |
25775178 |
BRACKET, A/TRNS RANGE SEL LVR CBL |
N (M7U, M7W) |
2013-2013 |
01 |
| 011 |
15614709 |
BOLT, W/CON SPR WA, M8X1.25X20, 15.58THD, 18 O.D., 9.8, ZO (A/TRNS RANGE SEL LVR STOP PLT) (1.270) (ACDelco #15614709) |
|
2010-2013 |
02 |
| 012 |
20882083 |
LEVER, A/TRNS RANGE SEL |
N (M7U, M7W) |
2013-2013 |
01 |
| 013 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/TRNS RANGE SEL LVR) (2.383) |
|
2010-2013 |
01 |
