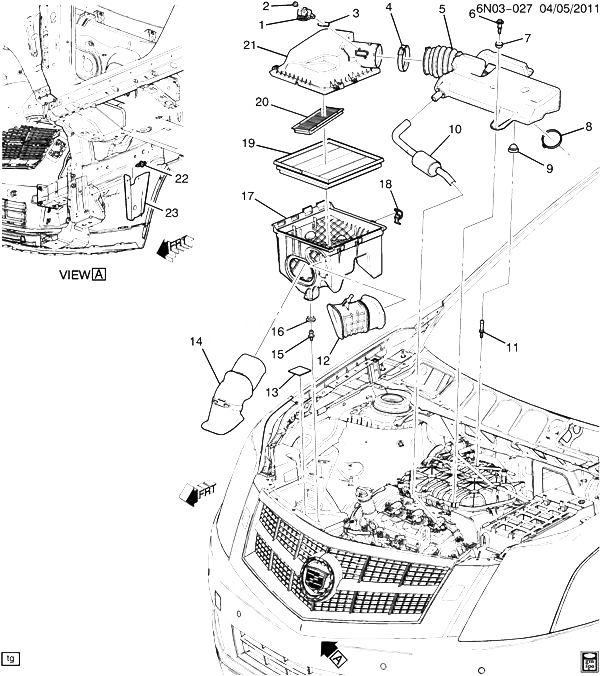

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20787043 |
SENSOR, MASS AIRFLOW (INCLS 3) (8 PIN) (W/O HOUSING AND BOLT) (MATING CONN W/LEADS USE 13583440) (ACDelco #20787043) |
N (LFW, LFX) |
2012-2013 |
01 |
| 002 |
15809005 |
BOLT, MASS AIRFLOW SEN (D40X1.46X12, 9.5THD) |
N (LFW, LFX) |
2012-2013 |
02 |
| 003 |
|
SEAL, MASS AIRFLOW SENSOR (PART OF 1) |
|
2012-2013 |
|
| 004 |
|
CLAMP, A/CL OTLT DUCT (PART OF 5) |
|
2012-2013 |
|
| 005 |
20940167 |
DUCT, A/CL OTLT (INCLS 4, 6-9) |
NG (LFW, LFX) |
2012-2013 |
01 |
| 006 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (PART OF 5) |
|
2012-2013 |
01 |
| 007 |
12591715 |
INSULATOR, A/CL OTLT RESO (PART OF 5) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) (3.265) |
N (LFW) |
2012-2013 |
01 |
| 007 |
12591715 |
INSULATOR, A/CL OTLT RESO (PART OF 5) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) (3.265) |
N (LFX) |
2012-2013 |
01 |
| 008 |
|
CLAMP, A/CL OTLT DUCT (PART OF 5) |
|
2012-2013 |
|
| 009 |
12559065 |
INSULATOR, A/CL OTLT RESO (PART OF 5) (12.0 DIA) (3.265) |
N (LFW) |
2012-2013 |
01 |
| 009 |
12559065 |
INSULATOR, A/CL OTLT RESO (PART OF 5) (12.0 DIA) (3.265) |
N (LFX) |
2012-2013 |
01 |
| 010 |
12644901 |
TUBE, PCV (FRESH AIR) |
N (LFW) |
2012-2013 |
01 |
| 010 |
12644901 |
TUBE, PCV (FRESH AIR) |
N (LFX) |
2012-2013 |
01 |
| 011 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (A/CL OTLT RESO) |
|
2012-2013 |
01 |
| 012 |
|
DUCT, FRT INT AIR (PART OF 17) |
|
2012-2013 |
|
| 013 |
11515174 |
SEAL, INT AIR DUCT (4 1/4 X 7 1/2) (TRIM AS REQD) (OUTBOARD) (12.941) |
N |
2012-2013 |
02 |
| 014 |
15913320 |
DUCT, FRT INT AIR (PART OF 17) |
N (LFW, LFX) |
2012-2013 |
01 |
| 015 |
11570295 |
RETAINER, A/CL (M6X1X28, 10 THD, 17) |
N |
2012-2013 |
03 |
| 016 |
12563914 |
INSULATOR, A/CL HSG (PART OF 17) (MOUNT TO MID RAIL) |
N (LFW) |
2012-2013 |
03 |
| 016 |
12563914 |
INSULATOR, A/CL HSG (PART OF 17) (MOUNT TO MID RAIL) |
N (LFX) |
2012-2013 |
03 |
| 017 |
22788576 |
CLEANER, AIR (INCLS 12, 14, 16, 18-21) |
N (LFW, LFX) |
2012-2013 |
01 |
| 018 |
19168954 |
CLIP, A/CL HSG (PART OF 17) |
N (LFW, LFX) |
2012-2013 |
03 |
| 019 |
20897358 |
ELEMENT, A/CL (PART OF 17) (W/O HYDROCARBON) (ACDelco #A3147C) |
N (LFW) |
2012-2013 |
01 |
| 019 |
20897358 |
ELEMENT, A/CL (PART OF 17) (W/O HYDROCARBON) (ACDelco #A3147C) |
N (LFX) |
2012-2013 |
01 |
| 020 |
|
ADSORBER, A/CL EVAP EMIS (PART OF 17) |
|
2012-2013 |
|
| 021 |
|
COVER, A/CL HSG (PART OF 17) |
|
2012-2013 |
|
| 022 |
11589295 |
RETAINER, PUSH-IN, FITS10.5 HOLE, 3-6.0 THK PNL, NYLON (INT AIR SPH SHLD (PUSH IN)) |
|
2012-2013 |
03 |
| 023 |
20807093 |
SHIELD, INT AIR SPH |
N (LFW, LFX) |
2012-2013 |
01 |
