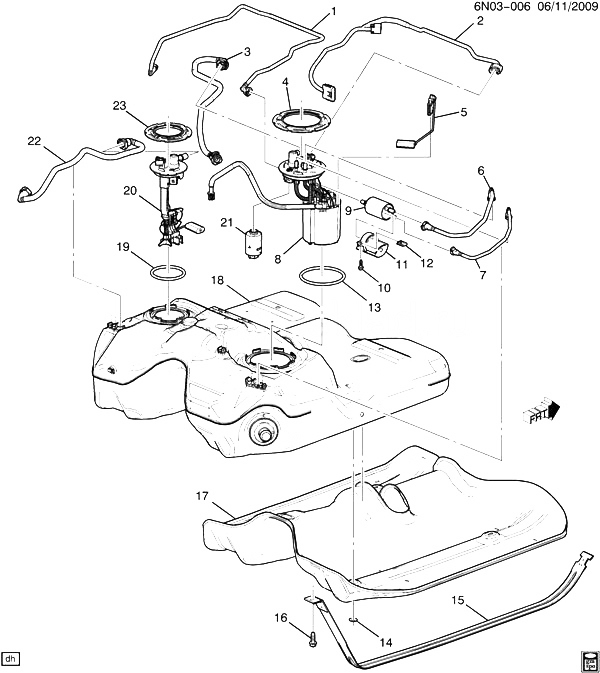

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25896668 |
TUBE, FUEL RTN (TO FUEL FEED PIPE) |
N (FHO, KX2, NE9) |
2012-2013 |
01 |
| 002 |
25896666 |
HARNESS, CHAS WRG |
N |
2012-2013 |
01 |
| 003 |
25896937 |
HOSE, F/TNK FIL EVAP EMIS |
N (FHO, KX2, NE9) (EXPORT) |
2012-2013 |
01 |
| 004 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) |
N (LFW, LFX) |
2012-2013 |
01 |
| 005 |
13581735 |
SENSOR KIT, FUEL LVL (INCLS 13) (ACDelco #SK1396) |
N |
2010-2013 |
01 |
| 006 |
25896669 |
TUBE, FUEL FEED |
N (FHO, KX2, NE9) (EXPORT) |
2012-2013 |
01 |
| 007 |
25896670 |
TUBE, FUEL RTN (TO F/PMP MODULE) |
N (FHO, KX2, NE9) |
2012-2013 |
01 |
| 008 |
13578356 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 13, 21) (ACDelco #M100025) |
N (KX2, NE9) (EXPORT) |
2010-2013 |
01 |
| 008 |
13578356 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 13, 21) (3.107) (ACDelco #M100025) |
N (KX2, NE9) (EXPORT) |
2010-2013 |
01 |
| 009 |
25993215 |
FILTER, FUEL (ACDelco #GF844) |
N |
2012-2013 |
01 |
| 010 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FUEL FLTR BRKT) |
|
2010-2013 |
01 |
| 011 |
|
BRACKET, FUEL FLTR (PART OF 18) |
|
2010-2013 |
|
| 012 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (FUEL FLTR BRKT) (ACDelco #11513599) |
|
2010-2013 |
01 |
| 013 |
22682111 |
SEAL, F/PMP (O RING) (PART OF 5, 8) (APPROX SIZE147.5MM X 6MM) (ACDelco #G41) |
N |
2010-2013 |
01 |
| 014 |
10009923 |
NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (F/TNK H/SHLD) |
|
2010-2013 |
04 |
| 015 |
22755976 |
STRAP, F/TNK |
N |
2010-2013 |
02 |
| 016 |
11515767 |
BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (F/TNK STRP) (T/W 12345493) |
|
2010-2013 |
02 |
| 017 |
15871538 |
SHIELD, F/TNK HT |
N |
2012-2013 |
01 |
| 018 |
22744669 |
TANK, FUEL (INCLS 11) |
N (FHO, KX2, NE9) |
2013-2013 |
01 |
| 019 |
15776433 |
SEAL, F/PMP (O RING) (PART OF 20) (APPROX SIZE112.5X6.0) (3.112) (ACDelco #G48) |
N |
2010-2013 |
01 |
| 020 |
20820553 |
SENDER KIT, FUEL (INCLS 20) (SECONDARY) (ACDelco #SK1341) |
N (FHO, KX2, NE9) |
2012-2013 |
01 |
| 021 |
|
VALVE, F/TNK VENT (PART OF 8) |
|
2010-2013 |
|
| 022 |
25896681 |
HOSE, EVAP EMIS |
N |
2012-2013 |
01 |
| 023 |
15776431 |
CAM, FUEL SDR (95 MM TANK OPENING CAM LOCK RING) (ACDelco #15776431) |
N (FHO, FHS) |
2012-2013 |
01 |
