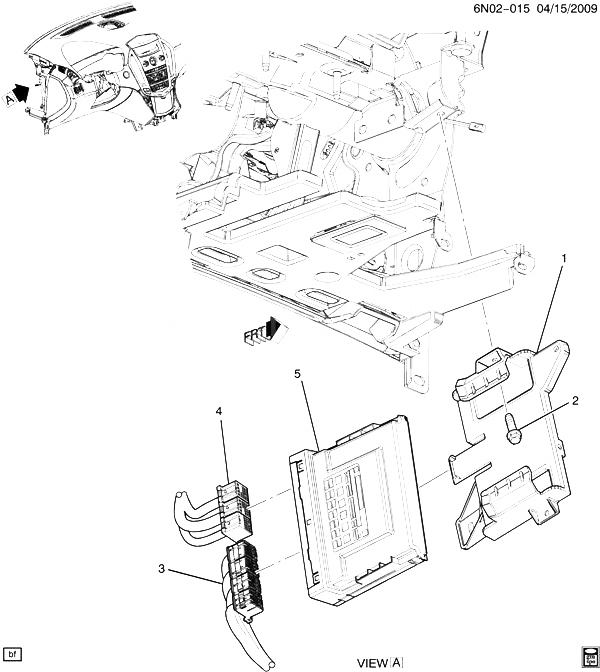

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25824019 |
BRACKET, BCM |
N (LHD) |
2010-2013 |
01 |
| 002 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (BCM BRKT) |
|
2010-2013 |
02 |
| 003 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 005 |
13586273 |
MODULE, BODY CONT (2.560) (ACDelco #13586273) (LABELED 13586273 OR 13589325 OR 13589197) |
NG |
2013-2013 |
01 |
