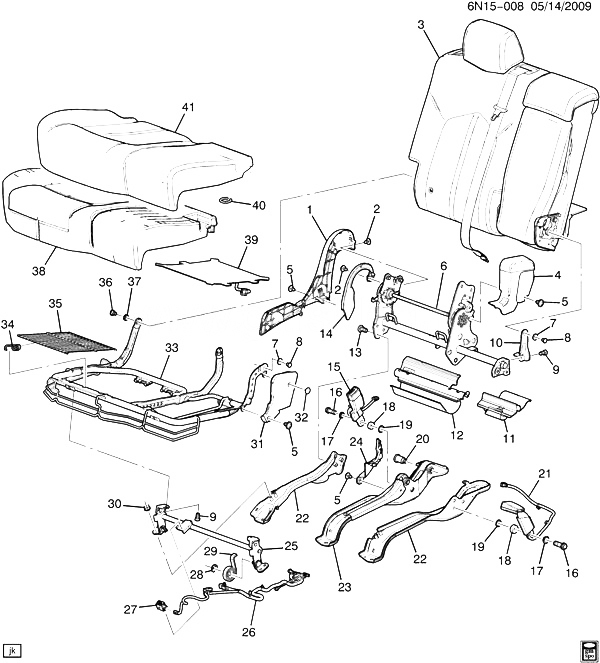

(6N15-008) 2010-2013 N СИДЕНЬЕ В СБОРЕ/ЗАДНЕЕ-ПОДУШКА 60% SIDE CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20778894 COVER, R/SEAT TRACK REAR OUTBOARD (BLACK) N (01A) 2010-2013 01
001 20778895 COVER, R/SEAT TRACK REAR OUTBOARD (TITANIUM) N (01E) 2010-2012 01
001 20778896 COVER, R/SEAT TRACK REAR OUTBOARD (SHALE) N (01F) 2010-2013 01
002 25980414 BOLT, R/SEAT RECL (M4X16) NG 2010-2012 04
003 25981131 PAD, R/SEAT BK (SEE GROUP 15.000 SEAT ASM/REAR-BACK 60% SIDE FOR DETAILED ILLUSTRATED VIEW) N 2010-2013 01
004 20779312 COVER, R/SEAT A/RST HGE FIN (BLACK) (11.651) N (01A) 2010-2013 01
004 20779313 COVER, R/SEAT A/RST HGE FIN (TITANIUM) (11.651) N (01E) 2010-2012 01
004 20779314 COVER, R/SEAT A/RST HGE FIN (SHALE) (11.651) N (01F) 2010-2013 01
005 11610936 SCREW, PAN, M4X0.7X9, 7 THD, 10 OD, 1018, GMW3044, TAPPING (R/SEAT) 2010-2013 23
006 RECLINER, R/SEAT (*KIT1) 2010-2013
007 25980497 WASHER, R/SEAT A/RST N 2010-2013 02
008 20869508 BOLT, R/SEAT A/RST BRKT N 2010-2013 03
009 11509589 BOLT, HEX, M8X1.25X16, FULL THD, 9.8, PC (R/SEAT CUSH FRM) 2010-2013 02
010 HINGE, R/SEAT A/RST 2010-2013
011 20827464 COVER, R/SEAT FRM RR FIN (CTR) NG 2010-2012 01
012 20827465 COVER, R/SEAT FRM RR FIN (O/B) NG 2010-2012 01
013 25980416 BOLT, R/SEAT RECL (M10X1.25X22.8) (*KIT1) NG 2010-2012 AR
014 20887290 COVER, R/SEAT TRACK REAR INBOARD (BLACK) NG (01A) 2010-2013 01
014 20887291 COVER, R/SEAT TRACK REAR INBOARD (TITANIUM) N (01E) 2010-2012 01
014 20887292 COVER, R/SEAT TRACK REAR INBOARD (SHALE) NG (01F) 2010-2013 01
015 19210572 BELT KIT, R/SEAT (BKL SI) (INCLS 16-19) (SHALE) N (01F) 2010-2013 01
015 19210570 BELT KIT, R/SEAT (BKL SI) (INCLS 16-19) (BLACK) N (01A) 2010-2013 01
015 19210571 BELT KIT, R/SEAT (BKL SI) (INCLS 16-19) (TITANIUM) N (01E) 2010-2012 01
016 BOLT, R/SEAT BELT BKL (PART OF 15, 21) 2010-2013
017 BUSHING, R/SEAT BELT (BKL SI) (PART OF 15, 21) 2010-2013
018 SPACER, R/SEAT BELT (BKL SI) (PART OF 15, 21) 2010-2013
019 RETAINER, R/SEAT BELT (PART OF 15, 21) 2010-2013
020 25980521 BOLT, R/SEAT RECL (M12X1.25X48.5) (*KIT1) NG 2010-2012 AR
021 19210567 BELT KIT, R/SEAT CTR (BKL SI) (INCLS 16-19) (BLACK) N (01A) 2010-2013 01
021 19210568 BELT KIT, R/SEAT CTR (BKL SI) (INCLS 16-19) (TITANIUM) N (01E) 2010-2012 01
021 19210569 BELT KIT, R/SEAT CTR (BKL SI) (INCLS 16-19) (SHALE) N (01F) 2010-2013 01
022 TRACK, R/SEAT ADJR (*KIT1) 2010-2013
023 TRACK, R/SEAT ADJR CTR (*KIT1) 2010-2013
024 20779399 COVER, R/SEAT RECL INR FIN (BLACK) N (01A) 2010-2013 01
024 20779400 COVER, R/SEAT RECL INR FIN (TITANIUM) N (EAM, EBS, 01E) 2010-2012 01
024 20779401 COVER, R/SEAT RECL INR FIN (SHALE) N (01F) 2010-2013 01
024 20779400 COVER, R/SEAT RECL INR FIN (TITANIUM) N (EXT, 01E) 2012-2012 01
025 25981161 LINK, R/SEAT HGE (*KIT1) N 2010-2013 01
026 20819130 HARNESS, R/SEAT WRG N (AL0, EBS) (EXC KA6) 2010-2012 01
026 20819133 HARNESS, R/SEAT HTR N (EAL, KA6) 2010-2012 01
027 25898802 LAMP, F/SEAT BK CTSY N (EBS) 2012-2013 01
028 RETAINER, R/SEAT CUSH SPR (*KIT1) 2010-2013
029 25982338 SPRING, R/SEAT CUSH (SEAT FRAME SPRING) NG 2010-2012 02
030 25980534 BOLT, R/SEAT RSR (*KIT1) NG 2010-2013 08
031 20779312 COVER, R/SEAT A/RST HGE FIN (BLACK) (11.651) N (01A) 2010-2013 01
031 20779313 COVER, R/SEAT A/RST HGE FIN (TITANIUM) (11.651) N (01E) 2010-2012 01
031 20779314 COVER, R/SEAT A/RST HGE FIN (SHALE) (11.651) N (01F) 2010-2013 01
032 25980446 BOLT, R/SEAT (OD 9.2, 9.8) (TAPPING POINT) NG 2010-2013 04
033 25980501 FRAME, R/SEAT CUSH (INCLS 34, 35) N (EBS) 2010-2013 01
033 25980501 FRAME, R/SEAT CUSH (INCLS 34, 35) N (EAM) (EXC KA6) 2012-2013 01
034 25980508 SPRING, R/SEAT CUSH (PART OF 33) (SEAT SUPPORT SPRING) NG 2010-2012 05
035 25980507 SUPPORT, R/SEAT (PART OF 33) (W/O LINK ASM) NG 2010-2012 02
036 25980406 BOLT, R/SEAT BK FRM N 2010-2013 06
037 25982303 SPACER, R/SEAT N 2010-2013 04
037 25981141 SPACER, R/SEAT N (AL0, EAM) (EXC KA6) 2010-2013 04
037 25981141 SPACER, R/SEAT N (AL0, EBS) 2010-2013 04
037 25981141 SPACER, R/SEAT N (EBS) 2010-2013 04
037 25981141 SPACER, R/SEAT N (EAM) (EXC KA6) 2010-2013 04
037 25981141 SPACER, R/SEAT N (EXT) 2012-2012 04
038 25981155 PAD, R/SEAT CUSH N 2010-2013 01
039 25980514 HEATER, R/SEAT CUSH N (KA6) 2010-2013 02
040 06616858 RING, R/SEAT CUSH PAD HOG (8.934) N 2010-2013 AR
041 20945144 COVER, R/SEAT CUSH (TITANIUM) N (EBS, 01E) 2010-2012 01
041 22784501 COVER, R/SEAT CUSH (BLACK) N (EBS, 01A) 2012-2012 01
041 20941544 COVER, R/SEAT CUSH (TITANIUM) (W/OPTION EAM BLT PRIOR TO 8/15/11) (FOR 2ND DES SEE 20945144) NG (EAM, 01E) (1ST DES) 2012-2012 01
041 22865332 COVER, R/SEAT CUSH (BLACK) NG (EAM, 01A) (EXC KA6) 2012-2012 01
041 20945144 COVER, R/SEAT CUSH (TITANIUM) N (EXT, 01E) (EXC KA6) 2012-2012 01
041 22784501 COVER, R/SEAT CUSH (BLACK) N (EXT, 01A) 2012-2012 01
041 22867002 COVER, R/SEAT CUSH (TITANIUM) N (EBS, KA6, 01E) 2010-2012 01
041 22910398 COVER, R/SEAT CUSH (SHALE) (W/O DYE TRANSFER PROTECTION) N (EBS, 01F) 2012-2012 01
041 22990701 COVER, R/SEAT CUSH (SHALE) (W/DYE TRANSFER PROTECTION) N (EBS, 01F) 2011-2013 01
K01 20821353 RISER, R/SEAT (INCLS 6, 13, 20, 22, 23, 25, 28-30) (11.610) N (EAM) 2010-2013 01
K01 25980500 RISER, R/SEAT (INCLS 6, 13, 20, 22, 23, 25, 28-30) (11.610) N (EBS) 2010-2013 01
K01 20821353 RISER, R/SEAT (INCLS 6, 13, 20, 22, 23, 25, 28-30) (11.610) N (EXT) 2012-2012 01
