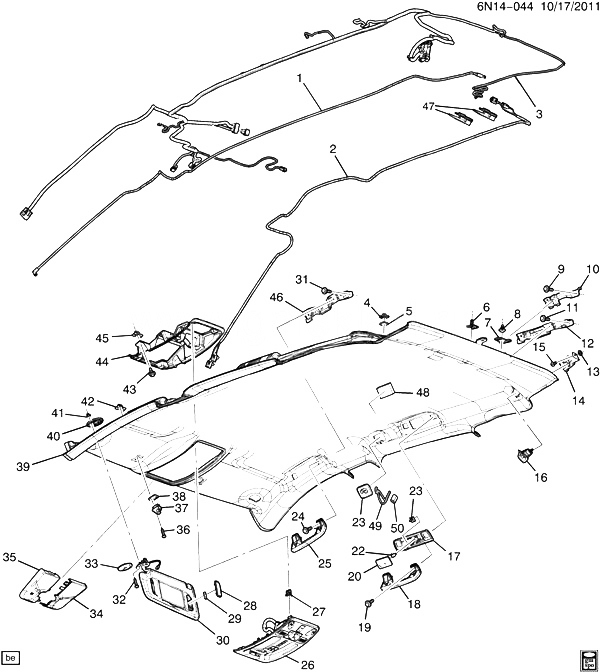

(6N14-044) 2011-2012 N ДЕТАЛИ КРЫШИ (EXC SUNROOF C3U) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15949226 HOSE, WSWA SOLV CNTNR (PART OF 39) (RR BODY) N 2011-2012 01
002 20941492 CABLE, RDO MOBILE TEL VEH LOC ANT (ACDelco #20941492) N 2011-2012 01
002 20941492 CABLE, RDO MOBILE TEL VEH LOC ANT (9.647) (ACDelco #20941492) N 2011-2012 01
002 20941492 CABLE, RDO MOBILE TEL VEH LOC ANT (9.647) (ACDelco #20941492) N 2011-2012 01
003 HARNESS, W/S HDR WRG (PART OF 39) 2011-2012
004 11610980 RETAINER, HDLNG T/PNL (PART OF 39) (26MM SQ X 5.2MM) (VELCRO) (PLASTIC) (W/DUAL LOCK) N (EXC C3U) 2011-2012 04
005 11570999 RETAINER, HDLNG T/PNL (PART OF 39) (25.4MM X 4.2MM) N (EXC C3U) 2011-2012 04
006 LOCATOR, HDLNG T/PNL (PART OF 39) 2011-2012
007 25735568 RETAINER, HDLNG RR T/PNL RET (PART OF 39) (DOG HOUSE RETAINER) N 2011-2012 02
008 11588278 RETAINER, PUSH-IN, FIT HOLE 6.0, HD OD 18, L=20.8, GMP.PA66.063, DOUBLE HD (PART OF 39) 2011-2012 02
009 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CARGO NET RR BRKT) 2011-2012 02
010 20886224 BRACKET, CARGO NET FRT N 2011-2012 01
010 20886225 BRACKET, CARGO NET FRT N 2011-2012 01
011 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (R/RL RR ASST HDL BRKT) 2011-2012 04
012 20867114 BRACKET, R/RL RR ASST HDL (INCLS 13) NG 2011-2012 01
012 20867115 BRACKET, R/RL RR ASST HDL (INCLS 13) NG 2011-2012 01
013 NUT, R/RL RR ASST HDL BRKT (PART OF 12) 2012-2012
014 20891009 BRACKET, CARGO NET RR N 2011-2012 01
014 20891010 BRACKET, CARGO NET RR N 2011-2012 01
015 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CARGO NET RR BRKT) 2011-2012 02
016 20897894 BEZEL, CARGO TIE DN LOOP (SHALE) NG (4AF, 4A5) 2011-2012 01
016 20897896 BEZEL, CARGO TIE DN LOOP (SHALE) N (4AF, 4A5) 2011-2012 01
016 22851299 BEZEL, CARGO TIE DN LOOP (TITANIUM) (RR CARGO NET BEZEL) NG (4AA, 4AJ) 2011-2012 01
016 22851297 BEZEL, CARGO TIE DN LOOP (TITANIUM) (RR CARGO NET BEZEL) NG (4AA, 4AJ) 2011-2012 01
017 BEZEL, R/RL CTSY RDG LP (*KIT1) 2011-2012
018 25943278 HANDLE, R/RL RR ASST (SHALE) NG (4AF, 4A5) 2011-2012 02
019 11569613 BOLT, HFH, M6X1X25, 19 THD, 12 OD, GM6202M STL, GMW3359, TAPTITE (R/RL RR ASST HDL) 2011-2012 04
020 25966471 LENS, R/RL CTSY RDG LP (*KIT1) N 2011-2012 01
021 01999382 BULB, (COR LP) (*KIT1) (ACDelco #W5WLL) (LONGER LIFE) 2011-2012 02
022 25966472 SWITCH, R/CMPT C/LP (*KIT1) (ACDelco #25966472) N 2011-2012 01
023 20907885 PLATE, CARGO NET BRKT TR (SHALE) NG (4AF, 4A5) 2011-2012 01
023 20907886 PLATE, CARGO NET BRKT TR (SHALE) NG (4AF, 4A5) 2011-2012 01
023 20897231 PLATE, CARGO NET BRKT TR (TITANIUM) (1 FRT/1 RR) NG (4AA, 4AJ) 2011-2012 02
023 20897234 PLATE, CARGO NET BRKT TR (TITANIUM) (1 FRT/1 RR) NG (4AA, 4AJ) 2011-2012 02
024 11569613 BOLT, HFH, M6X1X25, 19 THD, 12 OD, GM6202M STL, GMW3359, TAPTITE (R/RL RR ASST HDL) 2011-2012 04
025 25943278 HANDLE, R/RL ASST (SHALE) NG (4AF, 4A5) 2011-2012 02
025 25943279 HANDLE, R/RL ASST (TITANIUM) NG (4AA, 4AJ) 2011-2012 02
026 CONSOLE, RF (SEE GROUP 10.000 CONSOLE/ROOF FOR DETAILED ILLUSTRATED VIEW) (INCLS 27) 2011-2012
027 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 26) 2011-2012 06
028 22858871 LENS, S/S ILLUM MIR (PART OF 30) (TITANIUM) N (4AA, 4AJ) 2011-2012 04
028 22858872 LENS, S/S ILLUM MIR (PART OF 30) (SHALE) N (4AF, 4A5) 2011-2012 04
029 13502343 BULB, S/S ILLUM MIR LP (PART OF 30) (8.991) (ACDelco #13502343) N 2011-2012 04
030 22796930 SUNSHADE, (INCLS 28, 29, 32) (SHALE) NG (4AF, 4A5) (EXC CV3, EF7, Z49) 2012-2012 01
030 22796924 SUNSHADE, (INCLS 28, 29, 32) (SHALE) NG (CV3, EF7, Z49, 4AF, 4A5) 2012-2012 01
030 22796933 SUNSHADE, (INCLS 28, 29, 32) (SHALE) NG (4AF, 4A5) (EXC CV3, EF7, Z49) 2012-2012 01
030 20903739 SUNSHADE, (INCLS 28, 29, 32) (TITANIUM) N (4AA, 4AJ) (EXC CV3, EF7, Z49) 2012-2012 01
030 22796923 SUNSHADE, (INCLS 28, 29, 32) (TITANIUM) (MED SLIDE-ON-ROD W/CVRD VANITY CVR-VINYL) NG (CV3, EF7, Z49, 4AA, 4AJ) 2012-2012 01
030 22796926 SUNSHADE, (INCLS 28, 29, 32) (TITANIUM) (MED SLIDE-ON-ROD W/CVRD VANITY CVR-VINYL) NG (CV3, EF7, Z49, 4AA, 4AJ) 2012-2012 01
030 22796927 SUNSHADE, (INCLS 28, 29, 32) (SHALE) NG (CV3, EF7, Z49, 4AF, 4A5) 2012-2012 01
030 22796929 SUNSHADE, (INCLS 28, 29, 32) (TITANIUM) NG (4AA, 4AJ) (EXC CV3, EF7, Z49) 2012-2012 01
031 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (R/RL FRT ASST HDL BRKT) 2011-2012 04
032 11610271 SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (PART OF 30) 2011-2012 06
033 20772469 COVER, S/S SUPT BOLT (SHALE) (CIRCULAR S/S BOLT COVER W/HOLE IN CTR) NG (4AF, 4A5) 2011-2012 02
033 20765441 COVER, S/S SUPT BOLT (TITANIUM) (CIRCULAR S/S BOLT COVER W/HOLE IN CTR) NG (4AA, 4AJ) 2011-2012 02
034 20830028 COVER, I/S RR VIEW MIR MT PLT (BLACK) N (4AA, 4AF, 4AJ, 4A5) 2011-2012 01
035 20830029 COVER, I/S RR VIEW MIR MT PLT (BLACK) N (4AA, 4AF, 4AJ, 4A5) 2011-2012 01
036 11610271 SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (S/S) 2011-2012 02
037 15897894 SUPPORT, S/S (TITANIUM) (ROOF SIR W/ONSTAR/SUNROOF) NG (4AA, 4AJ) 2011-2012 02
037 25943202 SUPPORT, S/S (SHALE) NG (4AF, 4A5) 2011-2012 02
038 13502787 RETAINER, S/S SUPT NG 2011-2012 02
039 22816213 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (TITANIUM) N (UYS, UYT, 4AA, 4AJ) (EXC C3U) 2012-2012 01
039 22816214 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (SHALE) N (UYS, UYT, 4AF, 4A5) (EXC C3U) 2012-2012 01
039 22816201 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (SHALE) N (UYE, UYF, UYZ, 4AF, 4A5) (EXC C3U) 2012-2012 01
039 22816202 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (TITANIUM) (IF SERV 2011 VEHS-CONTACT PARTECH FOR ISRVM REWK INSTRUCTIONS) N (UYE, UYF, UYZ, 4AA, 4AJ) (EXC C3U) 2012-2012 01
039 22816219 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (SHALE) N (UXY, UYU, UYW, UYX, UYY, U44, 4AF, 4A5) (EXC C3U) 2012-2012 01
039 22816220 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (TITANIUM) N (UXY, UYU, UYW, UYX, UYY, U44, 4AA, 4AJ) (EXC C3U) 2012-2012 01
039 22816207 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (SHALE) N (UZZ, 4AF, 4A5) (EXC C3U) (EXPORT) 2012-2012 01
039 22816208 PANEL, HDLNG TR (INCLS 1, 3-8, 47-50) (TITANIUM) N (UZZ, 4AA, 4AJ) (EXC C3U) (EXPORT) 2012-2012 01
040 13502224 RETAINER, S/S RET (TIP PIN) (16.070) NG 2011-2012 01
040 13502225 RETAINER, S/S RET (TIP PIN) (16.070) NG 2011-2012 01
041 11569710 NUT, S/S SUPT (10.35 X 11.50 X 10.8) (16.070) NG 2011-2012 06
042 11569965 RETAINER, S/S (PUSH ON) (M4.2X1.41) (PUSH IN) (12.8 HOLE) (FOR .7-1.1 PANEL RNG) NG 2011-2012 02
043 11609465 BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 44) (8.977) 2011-2012 03
044 20889337 PLATE, RF CNSL BKG (INCLS 43, 45) NG (EXC C3U) 2011-2012 01
045 11569965 NUT, RF CNSL BRKT (PART OF 44) (M4.2X1.41) (PUSH IN) (12.8 HOLE) (FOR .7-1.1 PANEL RNG) (10.219) NG 2011-2012 03
046 20867112 BRACKET, R/RL FRT ASST HDL NG 2011-2012 01
046 20867113 BRACKET, R/RL FRT ASST HDL NG 2011-2012 01
047 15123133 RETAINER, HDLNG T/PNL WIRE (PART OF 39) (16.742) N 2011-2012 02
048 93439880 SPACER, HDLNG T/PNL (PART OF 39) (40X30X12.5MM) (BLACK FOAM) (8.131) N 2011-2012 AR
049 22847334 STRAP, CARGO CNTNR TIE DN (PART OF 39) (*KIT2) N 2011-2012 02
050 22819381 STRAP, CARGO CNTNR TIE DN (PART OF 39) (AL SLEVE) (*KIT2) N 2011-2012 02
K01 22781264 LAMP, R/RL CTSY RDG (INCLS 17, 20-22) (SHALE) N (4AF, 4A5) 2012-2012 01
K01 22781267 LAMP, R/RL CTSY RDG (INCLS 17, 20-22) (SHALE) NG (4AF, 4A5) 2011-2012 01
K01 22781268 LAMP, R/RL CTSY RDG (INCLS 17, 20-22) (TITANIUM) N (4AA, 4AJ) 2011-2012 01
K01 22781265 LAMP, R/RL CTSY RDG (INCLS 17, 20-22) (TITANIUM) NG (4AA, 4AJ) 2011-2012 01
K02 STRAP KIT, R/CMPT TIE DN (INCLS 49, 50) 2011-2012
