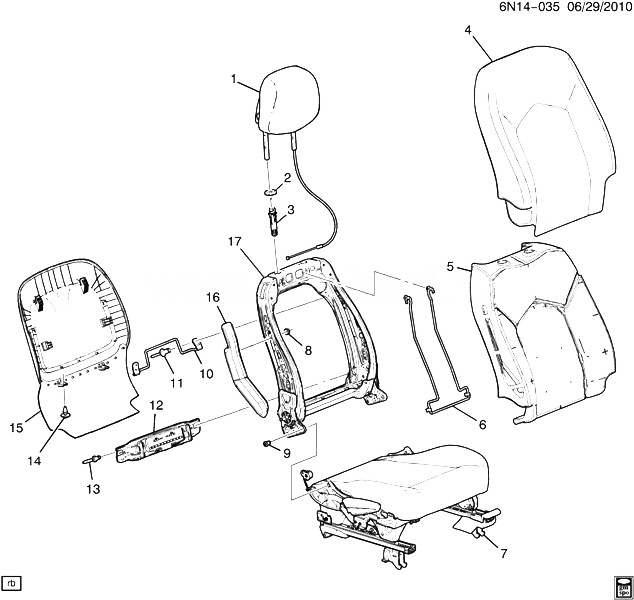

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22830198 |
RESTRAINT, P/SEAT HD (TITANIUM) (2-WAY) (PASSIVE) |
N (EAM, EBS, 01E) |
2011-2012 |
01 |
| 001 |
22830200 |
RESTRAINT, P/SEAT HD (BLACK) (2-WAY) (PASSIVE) |
N (EAM, 01A) |
2012-2012 |
01 |
| 002 |
13269719 |
BEZEL, F/SEAT H/RST GDE (PART OF 3) (BLACK) |
N (01A) |
2011-2013 |
02 |
| 002 |
20962749 |
BEZEL, F/SEAT H/RST GDE (PART OF 3) (TITANIUM) |
N (01E) |
2011-2012 |
02 |
| 003 |
13292801 |
GUIDE, P/SEAT H/RST (INCLS 2) (BLACK) |
N (01A) |
2011-2013 |
02 |
| 003 |
20768698 |
GUIDE, P/SEAT H/RST (INCLS 2) (TITANIUM) (W/BEZEL) |
N (01E) |
2011-2012 |
02 |
| 004 |
20941552 |
COVER, P/SEAT BK (BLACK) (W/OPTION EAM BLT PRIOR TO 8/15/11) (FOR 2ND DES SEE 22784432) |
N (AR9, EAM, 01A) (EXC AG2, AL2, KA1, KU3, UWG) (1ST DES) |
2012-2012 |
01 |
| 004 |
20941553 |
COVER, P/SEAT BK (TITANIUM) (W/OPTION EAM BLT PRIOR TO 8/15/11) (FOR 2ND DES SEE 22866977) |
N (AR9, EAM, 01E) (EXC AG2, AL2, KA1, KU3, UWG) (1ST DES) |
2012-2012 |
01 |
| 004 |
22784432 |
COVER, P/SEAT BK (BLACK) (W/OPTION EXT BLT 8/15/11 LTR) (FOR 1ST DES SEE 20941552) |
N (AR9, EXT, 01A) (EXC AG2, AL2, KA1, KU3, UWG) (2ND DES) |
2012-2012 |
01 |
| 004 |
22865331 |
COVER, P/SEAT BK (BLACK) |
N (AR9, EAM, 01A) (EXC AG2, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
| 004 |
22911733 |
COVER, P/SEAT BK (BLACK) |
N (AR9, EXT, LHD, 01A) (EXC AG2, AL0, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
| 004 |
22866977 |
COVER, P/SEAT BK (TITANIUM) (TRIM COVER W/HEATER MAT ATTACHED) (W/OPTION EXT BLT 8/15/11 LTR) (FOR 1ST DES SEE 20941553) |
N (AR9, EXT, 01E) (EXC AG2, AL0, AL2, KA1, KU3, UWG) (2ND DES) |
2012-2012 |
01 |
| 005 |
25959893 |
PAD, P/SEAT BK |
N (EAM) (EXC KA1, KU3, UWG) |
2011-2012 |
01 |
| 005 |
25959893 |
PAD, P/SEAT BK |
N (EXT) (EXC KA1, KU3, UWG) |
2012-2012 |
01 |
| 006 |
25960022 |
SUPPORT, P/SEAT LUMBAR (PART OF 17) |
N (EXC AL2) |
2011-2013 |
01 |
| 007 |
|
PAD, P/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/PASSENGER-CUSHION FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 008 |
11098671 |
NUT, P/SEAT SI AIRBAG (M5X11.8) |
N |
2011-2013 |
02 |
| 009 |
13272975 |
BOLT, P/SEAT (20X17.5) (14.896) |
NG |
2011-2012 |
04 |
| 010 |
25898783 |
WIRE, P/SEAT BK PAD (PART OF 17) |
N |
2011-2013 |
01 |
| 011 |
11519023 |
RIVET, POP SHANK 0.256, LENGTH 0.643, 0.189-0.268 GRIP RANGE, 1033 STL, (PART OF 17) |
|
2011-2013 |
04 |
| 012 |
20835997 |
ACTUATOR, P/SEAT H/RST (PART OF 17) |
N |
2011-2013 |
01 |
| 013 |
13272974 |
RIVET, F/SEAT BK FRM REINF (LOWER) (PART OF 17) (11.378) |
N |
2011-2013 |
08 |
| 014 |
13110832 |
BOLT, P/SEAT RECL ACTR BRKT (M5X0.8X12) (11.558) |
N |
2011-2013 |
02 |
| 015 |
22812514 |
PANEL, P/SEAT BK INR FIN (BLACK) |
N (AR9, EXT, 01A) (EXC AG2, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
| 015 |
22812515 |
PANEL, P/SEAT BK INR FIN (TITANIUM) |
N (AR9, EXT, 01E) (EXC AG2, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
| 015 |
22812514 |
PANEL, P/SEAT BK INR FIN (BLACK) |
N (AL0, AR9, EAM, 01A) (EXC AG2, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
| 015 |
22812515 |
PANEL, P/SEAT BK INR FIN (TITANIUM) |
N (AR9, EAM, 01E) (EXC AG2, AL2, KA1, KU3, UWG) |
2011-2012 |
01 |
| 016 |
20862826 |
AIRBAG, P/SEAT SI |
N |
2011-2013 |
01 |
| 017 |
20845910 |
FRAME, P/SEAT BK (INCLS 6, 10-13) (SERVICE FRAME) (USE W/PASSIVE HDRST) (W/O HDRST ACTUATOR) |
N (EAM) |
2011-2013 |
01 |
| 017 |
13260628 |
FRAME, P/SEAT BK (INCLS 6, 10-13) (MAN) |
N (AR9, EXT) (EXC AG2, AL0, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
| 017 |
13260628 |
FRAME, P/SEAT BK (INCLS 6, 10-13) (MAN) |
N (AL0, AR9, EAM) (EXC AG2, AL2, KA1, KU3, UWG) |
2012-2013 |
01 |
| 017 |
20845910 |
FRAME, P/SEAT BK (INCLS 6, 10-13) (SERVICE FRAME) (USE W/PASSIVE HDRST) (W/O HDRST ACTUATOR) |
N (AR9, EXT, LHD) (EXC AG2, AL0, AL2, KA1, KU3, UWG) |
2012-2012 |
01 |
