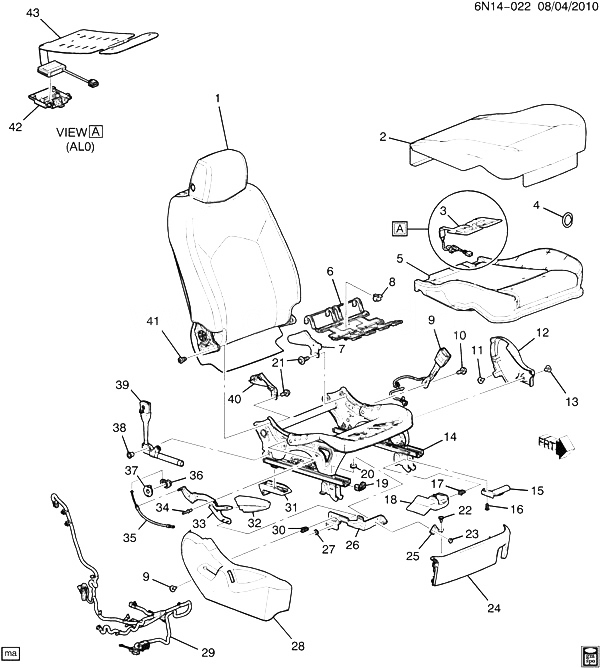

(6N14-022) 2012 N СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (LEATHERETTE TRIM EAM, EXT) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
040 20777860 COVER, P/SEAT INR RECL FIN (BLACK) (O/B) (INR) NG (01A) (EXC AG2) 2010-2012 01
040 20777861 COVER, P/SEAT INR RECL FIN (TITANIUM) (O/B) (INR) NG (01E) (EXC AG2) 2010-2012 01
041 13272975 BOLT, P/SEAT (20X17.5) (14.896) NG 2010-2012 04
042 BRACKET, AIRBAG FRT PASS POSN SEN 2010-2013
042 25962413 BRACKET, AIRBAG FRT PASS POSN SEN N (AL0) 2010-2012 01
043 20930499 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 5) (NON-VENTED LEATHERETTE. (NO LAMINATION)) N (AL0, EAM) (EXC KU3) 2011-2012 01
001 PAD, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) 2010-2013
002 20941541 COVER, P/SEAT CUSH (TITANIUM) (NOT FOR USE W/VEH BUILT VIN AS522110-VIN AS557788) (W/OPTION EAM BLT PRIOR TO 8/15/11) (FOR 2ND DES SEE 22768978) N (AR9, EAM, 01E) (EXC AG2, AL2, KA1, KU3, UWG) (1ST DES) 2012-2012 01
002 22865330 COVER, P/SEAT CUSH (BLACK) N (AR9, EAM, 01A) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
002 22884342 COVER, P/SEAT CUSH (VENTED, W/HTR MAT ATTACHED, FOR VEH BLT ON/AFT 3/15/11. CAN ALSO SERV VEH BLT PRIOR TO 3/15/11, BUT SUPPERSSION KIT 22772475 REQD.) (BLACK) (TRIM COVER W/HEATER MAT ATTACHED) N (AR9, EXT, LHD, 01A) (EXC AG2, AL0, AL2, KA1, KU3, UWG) 2012-2012 01
002 22768978 COVER, P/SEAT CUSH (TITANIUM) (W/OPTION EXT BLT 8/15/11 LTR) (FOR 1ST DES SEE 20941541) N (AR9, EXT, 01E) (EXC AG2, AL0, AL2, KA1, KU3, UWG) (2ND DES) 2012-2012 01
003 25928986 SENSOR, ST BELT ALARM N (EXC AL0) 2010-2012 01
004 25898794 RING, P/SEAT CUSH CVR HOG N 2010-2013 01
005 PAD, P/SEAT CUSH (PART OF 43) 2012-2012
006 25898768 SPRING, P/SEAT CUSH PAD SUPT (PART OF 14) N 2010-2013 01
007 20777959 COVER, P/SEAT OTR RECL FIN (BLACK) (11.588) N (01A) (EXC AG2) 2010-2013 01
007 20777960 COVER, P/SEAT OTR RECL FIN (TITANIUM) (INNER) (11.588) N (01E) (EXC AG2) 2010-2012 01
008 11562261 CLIP, P/SEAT WRG HARN (2.480) N 2010-2013 02
009 19258556 BELT KIT, P/SEAT (BKL SI) (BLACK) N (AL0, 01A) 2011-2012 01
009 19258564 BELT KIT, P/SEAT (BKL SI) (TITANIUM) N (AR9, 01E) (EXC AL0) 2010-2012 01
009 19257604 BELT KIT, P/SEAT (BKL SI) (BLACK) N (01A) (EXC AL0) 2011-2012 01
009 19258558 BELT KIT, P/SEAT (BKL SI) (TITANIUM) N (AL0, AR9, 01E) 2011-2013 01
010 11610518 BOLT, P/SEAT BELT BKL (7/16-20X30MM) N 2010-2013 02
011 13110832 RETAINER, P/SEAT BK INR FIN PNL (M5X0.8X12) (11.558) N 2010-2013 04
012 20777996 COVER, P/SEAT INR RECL FIN (BLACK) (I/B) (OTR) N (01A) (EXC AG2) 2010-2012 01
012 20777997 COVER, P/SEAT INR RECL FIN (TITANIUM) (I/B) (OTR) N (01E) (EXC AG2) 2010-2012 01
013 00332364 RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT INR ADJR FIN CVR) 2010-2013 01
014 22813723 FRAME, P/SEAT CUSH (INCLS 6, 19, 20, 23, 25) (SERVICE FRAME) (2-WAY MAN) N (AR9, EAM, LHD) (EXC AG2, AL2, KA1, KU3, UWG) 2011-2012 01
014 22813723 FRAME, P/SEAT CUSH (INCLS 6, 19, 20, 23, 25) (SERVICE FRAME) (2-WAY MAN) N (AR9, EXT, LHD) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
015 20777595 HANDLE, P/SEAT ADJR (BLACK) N (EAM, 01A) 2010-2013 01
015 20777596 HANDLE, P/SEAT ADJR (TITANIUM) N (EAM, 01E) 2010-2012 01
015 20777595 HANDLE, P/SEAT ADJR (BLACK) N (EXT, 01A) 2012-2012 01
015 20777596 HANDLE, P/SEAT ADJR (TITANIUM) N (EXT, 01E) 2012-2012 01
016 25960059 RETAINER, P/SEAT ADJR HDL (PUSH ON) (4/16X14) N 2010-2013 02
017 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18) 2010-2013 01
018 25988143 COVER, P/SEAT INR ADJR TRK FRT FIN (INCLS 17) (TITANIUM) N (AR9, EAM, 01E) (EXC AG2, UWG) 2010-2012 01
018 25988143 COVER, P/SEAT INR ADJR TRK FRT FIN (INCLS 17) (TITANIUM) N (AR9, EXT, 01E) (EXC AG2, UWG) 2012-2012 01
018 25988144 COVER, P/SEAT INR ADJR TRK FRT FIN (INCLS 17) (BLACK) N (AR9, EAM, 01A) (EXC AG2, UWG) 2010-2013 01
018 25988144 COVER, P/SEAT INR ADJR TRK FRT FIN (INCLS 17) (BLACK) N (AR9, EXT, 01A) (EXC AG2, UWG) 2012-2012 01
019 13100009 COVER, P/SEAT ADJR FIN (PART OF 14) (TRACK END CAP) N 2010-2013 04
020 11514596 NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PART OF 14) (8.915) (ACDelco #11514596) 2010-2013 06
021 13110832 RETAINER, P/SEAT BK INR FIN PNL (M5X0.8X12) (11.558) N 2010-2013 04
022 13272975 BOLT, P/SEAT (20X17.5) (14.896) NG 2010-2012 04
023 25898774 RETAINER, P/SEAT ADJR FIN CVR (PART OF 14) N 2010-2013 04
024 20777786 COVER, P/SEAT CUSH FRT (BLACK) N (AR9, EAM, LHD, 01A) (EXC AG2, AL2, KA1, KU3, UWG) 2011-2013 01
024 20777786 COVER, P/SEAT CUSH FRT (BLACK) N (AR9, EXT, 01A) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
024 20777787 COVER, P/SEAT CUSH FRT (TITANIUM) N (AR9, EXT, 01E) (EXC AG2, AL0, AL2, KA1, KU3, UWG) 2012-2012 01
024 20777787 COVER, P/SEAT CUSH FRT (TITANIUM) N (AR9, EAM, 01E) (EXC AG2, AL0, AL2, KA1, KU3, UWG) 2011-2012 01
024 20777787 COVER, P/SEAT CUSH FRT (TITANIUM) N (AL0, AR9, EAM, 01E) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
025 BRACKET, P/SEAT ADJR FIN CVR (PART OF 14) 2012-2012
026 BRACKET, P/SEAT RECL 2012-2012
027 11098671 NUT, P/SEAT RECL (M5X11.8) (14.865) N 2010-2013 02
028 20965254 COVER, P/SEAT OTR ADJR FIN (INCLS 30) (BLACK) (INCLS 20965257) N (AR9, EAM, 01A) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
028 20965254 COVER, P/SEAT OTR ADJR FIN (INCLS 30) (BLACK) (INCLS 20965257) N (AR9, EXT, 01A) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
028 20965255 COVER, P/SEAT OTR ADJR FIN (INCLS 30) (TITANIUM) (INCLS 20965258) N (AR9, EXT, 01E) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
028 20965255 COVER, P/SEAT OTR ADJR FIN (INCLS 30) (TITANIUM) (INCLS 20965258) N (AR9, EAM, 01E) (EXC AG2, AL2, KA1, KU3, UWG) 2012-2012 01
029 20825247 HARNESS, P/SEAT WRG N (AR9, EAM, LHD) (EXC AG2, AL0, AL2, KA1, KU3, UWG) 2011-2012 01
029 20825247 HARNESS, P/SEAT WRG N (AR9, EXT, LHD) (EXC AG2, AL0, AL2, KA1, KU3, UWG) 2012-2012 01
029 20872676 HARNESS, P/SEAT WRG (MANUAL SEAT) N (AL0, AR9, EAM, LHD) (EXC AG2, AL2, KA1, KU3, UWG) 2011-2012 01
029 20872676 HARNESS, P/SEAT WRG (MANUAL SEAT) N (AE4, AL0, A88, EAM, LHD) (EXC AG2, KA1, KU3, UWG) 2012-2012 01
030 25962409 RETAINER, P/SEAT OTR ADJR FIN CVR (PART OF 28) (OUTBOARD) N 2010-2013 02
031 20778112 COVER, F/SEAT ADJR RR FIN (BLACK) N (01A) 2010-2012 04
031 20778113 COVER, F/SEAT ADJR RR FIN (TITANIUM) N (01E) 2010-2012 04
032 20965251 HANDLE, P/SEAT RECL (BLACK) N (01A) 2011-2013 01
032 20965252 HANDLE, P/SEAT RECL (TITANIUM) N (01E) 2011-2012 01
033 BRACKET, P/SEAT RECL (INCLS 35) 2012-2012
034 25960036 RETAINER, P/SEAT RECL HDL N (EAM) 2010-2013 03
034 25960036 RETAINER, P/SEAT RECL HDL N (EXT) 2012-2012 03
035 CABLE, P/SEAT RECL ACTR (PART OF 33) 2012-2012
036 COUPLING, P/SEAT RECL ACTR CBL 2012-2012
037 20888674 CAP, P/SEAT ADJR STUD N 2010-2013 01
038 BOLT, P/SEAT (PART OF 39) 2012-2012
039 19209482 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 38) (BLACK) N (01A) 2010-2012 01
039 19209484 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 38) (TITANIUM) N (01E) 2010-2012 01
