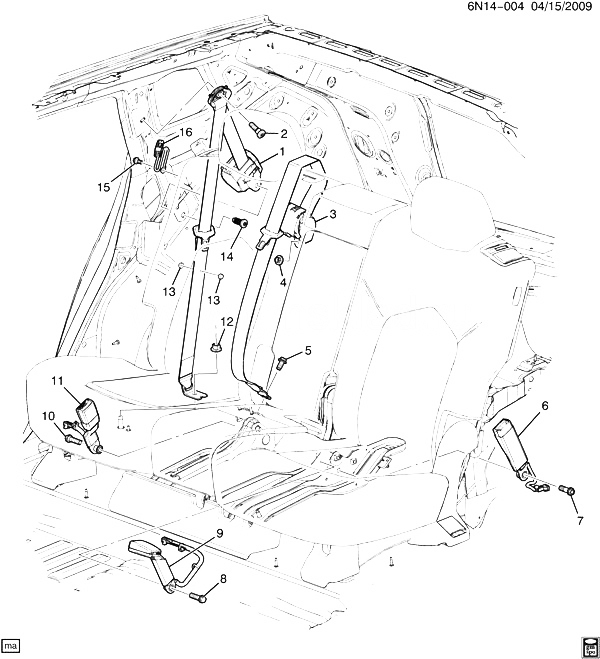

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19210997 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 13) (TITANIUM) |
N (AL0, 4AJ) |
2010-2012 |
01 |
| 001 |
19211000 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 13) (TITANIUM) |
N (AL0, 4AJ) |
2010-2012 |
01 |
| 001 |
19210998 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 13) (BLACK) |
N (AL0, 4AA, 4AP) |
2010-2013 |
01 |
| 001 |
19210999 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 13) (SHALE) |
N (AL0, 4AF, 4A5) |
2010-2013 |
01 |
| 001 |
19211001 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 13) (BLACK) |
N (AL0, 4AA) |
2010-2013 |
01 |
| 001 |
19210996 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 13) (SHALE) |
N (AL0, 4AF, 4A5) |
2010-2013 |
01 |
| 001 |
20854474 |
BELT, R/SEAT (INCLS 2, 13) (SHALE) |
N (AX4, 4AF, 4A5) (EXPORT) |
2010-2013 |
01 |
| 001 |
20854475 |
BELT, R/SEAT (INCLS 2, 13) (TITANIUM) |
N (AX4, 4AJ) (EXPORT) |
2010-2012 |
01 |
| 001 |
20854476 |
BELT, R/SEAT (INCLS 2, 13) (BLACK) |
N (AX4, 4AA) (EXPORT) |
2010-2013 |
01 |
| 001 |
20854478 |
BELT, R/SEAT (INCLS 2, 13) (SHALE) |
N (AX4, 4AF, 4A5) (EXPORT) |
2010-2013 |
01 |
| 001 |
20854479 |
BELT, R/SEAT (INCLS 2, 13) (TITANIUM) |
N (AX4, 4AJ) (EXPORT) |
2010-2012 |
01 |
| 001 |
20854480 |
BELT, R/SEAT (INCLS 2, 13) (BLACK) |
N (AX4, 4AA) (EXPORT) |
2010-2013 |
01 |
| 002 |
|
BOLT/SCREW (PART OF 1) |
|
2010-2013 |
|
| 003 |
19211008 |
BELT KIT, R/SEAT CTR (RETR SI) (BLACK) |
N (AL0, 01A) |
2010-2012 |
01 |
| 003 |
19211009 |
BELT KIT, R/SEAT CTR (RETR SI) (TITANIUM) |
N (AL0, 01E) |
2010-2012 |
01 |
| 003 |
19211010 |
BELT KIT, R/SEAT CTR (RETR SI) (SHALE) |
N (AL0, 01F) |
2010-2012 |
01 |
| 003 |
20870097 |
BELT, R/SEAT CTR (BLACK) |
N (01A) (EXC AL0) |
2010-2012 |
01 |
| 003 |
20870098 |
BELT, R/SEAT CTR (TITANIUM) |
N (01E) (EXC AL0) |
2010-2012 |
01 |
| 003 |
20870099 |
BELT, R/SEAT CTR (SHALE) |
N (01F) (EXC AL0) |
2010-2013 |
01 |
| 004 |
|
NUT, R/SEAT SHLDR BELT RETR |
|
2010-2013 |
|
| 005 |
11561965 |
BOLT, R/SEAT CTR BELT (8.900) |
N |
2010-2012 |
01 |
| 006 |
19210573 |
BELT KIT, R/SEAT (BKL SI) (INCLS 7) (BLACK) |
N (EAM, 01A, 01C) (EXC KA6) |
2010-2013 |
01 |
| 006 |
19210574 |
BELT KIT, R/SEAT (BKL SI) (INCLS 7) (TITANIUM) |
N (01E) |
2010-2013 |
01 |
| 006 |
19210575 |
BELT KIT, R/SEAT (BKL SI) (INCLS 7) (SHALE) |
N (01F) |
2010-2013 |
01 |
| 006 |
19210573 |
BELT KIT, R/SEAT (BKL SI) (INCLS 7) (BLACK) |
N (EBS, 01A, 01C, 05B) |
2010-2013 |
01 |
| 007 |
|
BOLT, R/SEAT BELT BKL (PART OF 6) |
|
2010-2013 |
|
| 008 |
|
BOLT, RR CTR SEAT BELT BKL (PART OF 9) |
|
2010-2013 |
|
| 009 |
19210567 |
BELT KIT, R/SEAT CTR (BKL SI) (INCLS 8) (BLACK) |
N (01A) |
2010-2013 |
01 |
| 009 |
19210568 |
BELT KIT, R/SEAT CTR (BKL SI) (INCLS 8) (TITANIUM) |
N (01E) |
2010-2012 |
01 |
| 009 |
19210569 |
BELT KIT, R/SEAT CTR (BKL SI) (INCLS 8) (SHALE) |
N (01F) |
2010-2013 |
01 |
| 010 |
|
BOLT, R/SEAT BELT BKL (PART OF 11) |
|
2010-2013 |
|
| 011 |
19210572 |
BELT KIT, R/SEAT (BKL SI) (INCLS 10) (SHALE) |
N (01F) |
2010-2013 |
01 |
| 011 |
19210570 |
BELT KIT, R/SEAT (BKL SI) (INCLS 10) (BLACK) |
N (01A) |
2010-2013 |
01 |
| 011 |
19210571 |
BELT KIT, R/SEAT (BKL SI) (INCLS 10) (TITANIUM) |
N (01E) |
2010-2012 |
01 |
| 012 |
03537772 |
NUT, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) |
|
2010-2013 |
07 |
| 013 |
19209600 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1) (BLACK) |
N (4AA) |
2010-2012 |
01 |
| 013 |
19258776 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1) (TITANIUM) |
N (4AJ) |
2010-2012 |
01 |
| 013 |
19121447 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1) (SHALE) |
N (4AF, 4A5) |
2012-2012 |
01 |
| 014 |
11610022 |
BOLT, R/SEAT BELT (RETR SI) (M12X1.75X37, 26.6 OD) |
N |
2010-2013 |
02 |
| 015 |
11609295 |
BOLT, HFH, W/FL WA, M12X1.75X43, 24 THD, 25.5 OD, 10.9, 7114M, ADH 6175M (PART OF 16) |
|
2010-2013 |
03 |
| 016 |
25980427 |
GUIDE, R/SEAT BELT INTER (INCLS 15) (BLACK) |
N |
2010-2013 |
01 |
