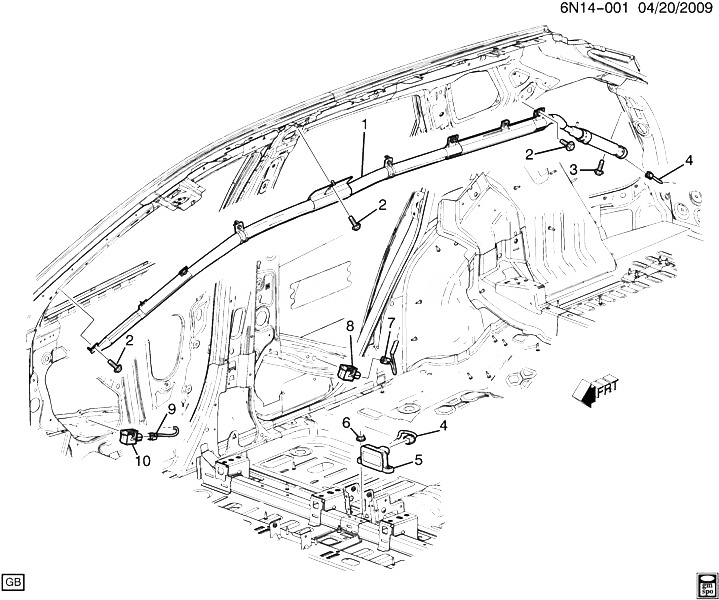

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20861353 |
AIRBAG, RF S/RL (INCLS 2, 3) |
N (AY0) |
2010-2013 |
01 |
| 001 |
20861354 |
AIRBAG, RF S/RL (INCLS 2, 3) |
N (AY0) |
2010-2013 |
01 |
| 002 |
11609989 |
BOLT, R/RL AIRBAG (PART OF 1) (M6X1X25, 15 THD, 17 OD) (8.900) |
N |
2010-2012 |
14 |
| 003 |
11588337 |
BOLT, R/RL AIRBAG (PART OF 1) (6 X 1 X 20) (8.900) |
N |
2010-2012 |
02 |
| 004 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 005 |
13505726 |
SENSOR, VEH YAW (W/ VEH LATL LGTDNL ACCLRM) |
N |
2010-2012 |
01 |
| 006 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (VEH YAW SEN) |
|
2010-2013 |
02 |
| 007 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/REAR PART 2 FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 008 |
13574936 |
SENSOR, AIRBAG SI IMP RR (INCLS BOLT) |
N (AY0) |
2012-2013 |
02 |
| 009 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 14.000 DOOR HARDWARE/FRONT PART 2 ILLUSTRATION FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 010 |
13502577 |
SENSOR, AIRBAG SI IMP (INCLS BOLT) (MATING CONN W/LEADS USE 13314084) |
N |
2010-2013 |
02 |
