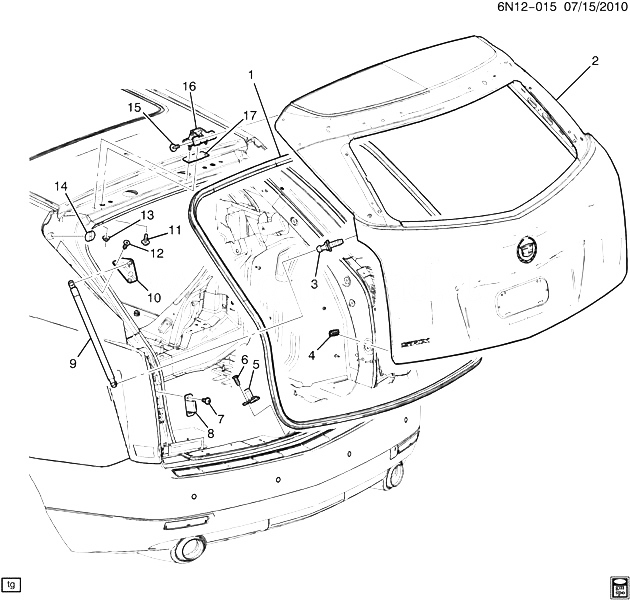

(6N12-015) 2010-2013 N ФУРНИТУРА ЗАДНЕЙ ОТКИДНОЙ ДВЕРИ PART 1 CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20909102 WEATHERSTRIP, L/GATE NG 2010-2013 01
002 20989847 GATE, LIFT NG 2010-2013 01
003 11571040 STUD, L/GATE STRUT BALL (L/GATE SI) (USE ON LEFT HAND SIDE ONLY) NG (TB5) 2010-2013 01
003 11571041 STUD, L/GATE STRUT BALL (L/GATE SI) (USE ON RIGHT HAND SIDE ONLY) NG (TB5) 2010-2013 01
003 11611235 STUD, L/GATE STRUT BALL (L/GATE SI) (M8X1.25X26.5) NG (EXC TB5) 2012-2013 02
004 25888200 PLUG, E/GATE DRN (RECTANGULAR) NG 2010-2013 02
005 15929713 STRIKER, L/GATE LAT NG 2010-2013 01
006 11518445 BOLT, L/GATE LK STKR (8 X 1.25 X 25) (T40) (8.908) N 2010-2013 02
007 11609657 SCREW, PANWASH, M6X1X20, 16.3 THD, 15 OD, 9.8, GMW4205 (L/GATE WGE (BODY SI)) 2010-2013 04
008 20914393 WEDGE, L/GATE (BODY SI) NG 2010-2013 02
009 22745512 STRUT, L/GATE (W/DUST BOOT) NG (EXC TB5) 2010-2013 01
009 22745513 STRUT, L/GATE (W/DUST BOOT) NG (TB5) 2010-2013 01
009 22745511 STRUT, L/GATE (W/DUST BOOT) NG (EXC TB5) 2010-2013 01
010 20904598 BRACKET, L/GATE STRUT (BODY SI) NG (TB5) 2010-2013 01
010 20904597 BRACKET, L/GATE STRUT (BODY SI) NG (TB5) 2010-2013 01
010 20904599 BRACKET, L/GATE STRUT (BODY SI) NG (EXC TB5) 2010-2013 02
011 11571163 BOLT-HEX W/CON WA, M10X1.5X35, 22 THD, 28 OD, 10.9, GMW3359 BLACK, 8 MM P- (L/GATE HGE (BODY SI)) 2010-2013 02
012 11609702 SCREW, FLAT 90 DEG COUNTERSINK HD 6-LOBED SOC, M8X1.25 (L/GATE STRUT BRKT (BODY SI)) 2010-2013 04
013 25632772 NUT, W/CON WA, M8X1.25, 6.5THK, 25.4 O.D., 10, ZF (L/GATE HGE (BODY SI)) 2010-2013 04
014 20895614 PLUG, L/GATE ACTR ATCH HOLE (48 X 8 X 35) NG (EXC TB5) 2010-2013 01
015 11570646 BOLT, L/GATE HGE (L/GATE SI) (USE T/W ADHESIVE 89021297) NG 2010-2013 04
016 20824425 HINGE, L/GATE (INCLS 17) NG 2010-2013 02
017 20824424 GASKET, L/GATE BODY SI HGE (PART OF 16) NG 2010-2013 02
