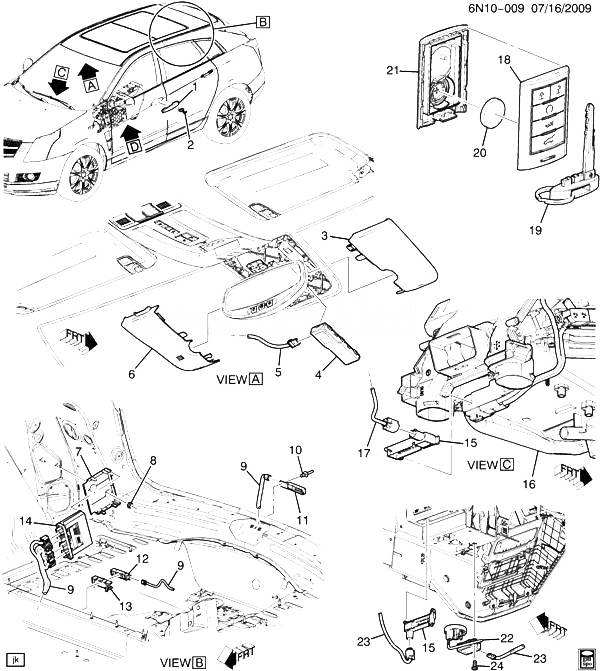

(6N10-009) 2010-2013 N СИСТЕМА ЗАМКОВ/ДИСТАНЦИОННОЕ УПРАВЛЕНИЕ БЕЗ КЛЮЧА CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HANDLE, FRT S/D O/S (SEE GROUP 10.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) (W/CHROME INSERT) 2010-2013
002 HARNESS, FRT S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) 2010-2013
003 20830028 COVER, I/S RR VIEW MIR MT PLT (BLACK) N (4AA, 4AF, 4AJ, 4A5) 2010-2012 01
004 13586942 RECEIVER, R/CON DR LK N (EXC XL8) 2012-2013 01
004 13503204 RECEIVER, R/CON DR LK N (XL8) (EXPORT) 2010-2013 01
005 HARNESS, DM LP WRG (SEE GROUP 14.000 ROOF HEADLINER FOR DETAILED ILLUSTRATED VIEW) 2010-2013
006 20830029 COVER, I/S RR VIEW MIR MT PLT (BLACK) N (4AA, 4AF, 4AJ, 4A5) 2010-2012 01
007 13248214 BRACKET, KEYLESS ENTRY CONT MDL N 2010-2013 01
008 03530297 NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (KEYLESS ENTRY CONT MDL BRKT) 2010-2013 02
009 HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) 2010-2013
010 09132667 RIVET, IGN LK KEY XMTR ANT BRKT (7.833) N (ATH) 2010-2013 01
011 13502554 ANTENNA, IGN LK KEY XMTR N (ATH) 2010-2012 01
012 13502551 ANTENNA, IGN LK KEY XMTR N 2010-2012 01
013 25891535 BRACKET, IGN LK KEY XMTR ANT N 2010-2013 01
014 13577130 MODULE, KEYLESS ENTRY CONT N (EXC ATH) 2010-2012 01
014 13578646 MODULE, KEYLESS ENTRY CONT (ACDelco #13578646) N (ATH) 2010-2012 01
015 13502549 ANTENNA, IGN LK KEY XMTR N 2010-2012 02
016 MODULE, HTR A/C EVPR BLO (SEE GROUP 09.000 A/C HEATER MODULE ASM FOR DETAILED ILLUSTRATED VIEW) 2010-2013
017 HARNESS, I/P WRG (SEE GROUP 10.000 INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2010-2013
018 20984227 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (BTV, TB5) (EXC CV5, XL8) 2011-2012 02
018 20984227 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (BTV, TB5) (EXC CV5, XL8) 2011-2012 02
018 20984232 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (EXC BTV, CV5, TB5, XL8) 2011-2012 02
018 20984232 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (EXC BTV, CV5, TB5, XL8) 2011-2012 02
018 20984229 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (BTV, CV5, TB5) (EXC XL8) (EXPORT) 2011-2012 02
018 20984229 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (BTV, CV5, TB5) (EXC XL8) (EXPORT) 2011-2012 02
018 20984231 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (CV5) (EXC BTV, TB5, XL8) (EXPORT) 2011-2012 02
018 20984231 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (CV5) (EXC BTV, TB5, XL8) (EXPORT) 2011-2012 02
018 20984228 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (BTV, TB5, XL8) (EXC CW1) (EXPORT) 2011-2012 02
018 20984228 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (BTV, TB5, XL8) (EXC CW1) (EXPORT) 2011-2012 02
018 20984230 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (BTV, CW1, TB5, XL8) (EXPORT) 2011-2012 02
018 20984230 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (BTV, CW1, TB5, XL8) (EXPORT) 2011-2012 02
018 20984233 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) (10.526) N (XL8) (EXC BTV, CW1, TB5) (EXPORT) 2011-2012 02
018 20984233 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) N (XL8) (EXC BTV, CW1, TB5) (EXPORT) 2011-2012 02
018 22865376 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) NG (BTV, CV5, TB5) (EXC XL8) (EXPORT) 2011-2013 02
018 22865385 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) NG (BTV, TB5, XL8) (EXC CW1) (EXPORT) 2011-2013 02
018 22865386 TRANSMITTER, R/CON DR LK THEFT DTRNT (INCLS 20, 21) NG (BTV, CW1, TB5, XL8) (EXPORT) 2011-2013 02
019 20765513 KEY, DR LK (UNCODED) (UNCODED) N 2010-2013 01
019 25962393 KEY, DR LK IGN LK (CUT KEY) N (UA6) 2010-2013 02
019 25962393 KEY, DR LK IGN LK (CUT KEY) N (UA2) (EXPORT) 2010-2013 02
020 12538938 BATTERY, DR LK IGN LK KEY (PART OF 18) (LITHIUM) (TRADE CR2032) (10.485) N 2010-2013 01
021 COVER, R/CON DR LK THEFT DTRNT (PART OF 18) 2010-2013
022 13504287 MODULE, THEFT DTRNT (ACDelco #13504287) N 2012-2013 01
023 HARNESS, F/FLR CNSL WRG (SEE GROUP 10.000 CONSOLE FOR DETAILED ILLUSTRATED VIEW) 2010-2013
024 11569991 BOLT, F/FLR CNSL (M4X0.7X11.86) (16.650) NG 2010-2012 14
