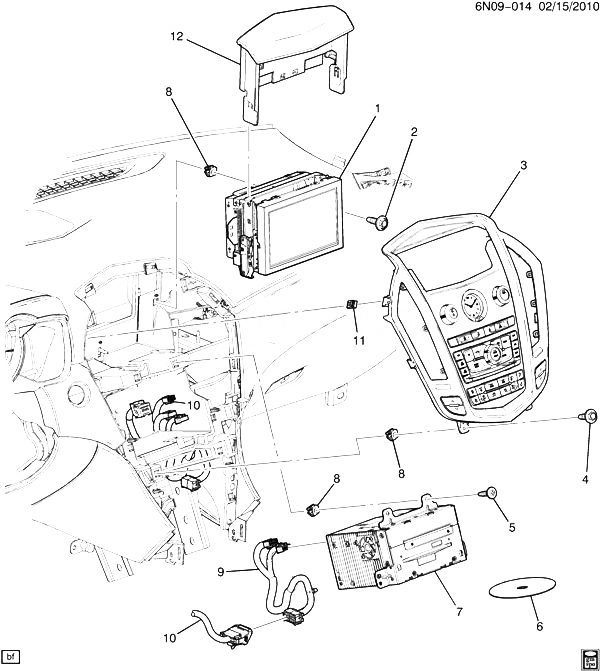

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22809317 |
DISPLAY, DRVR INFO (9.680) (ACDelco #22809317) |
N (UXY, UYS, UYT, UYU, UYW, UYX, UYY, U44) |
2011-2012 |
01 |
| 002 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (DRVR INFO DISPLAY) |
|
2010-2012 |
02 |
| 003 |
20927854 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 11) (ARGENT) (ACDelco #20927854) |
N (KA1, UYS, UYT, UYU, UYW, UYX, UYY, U44) (EXC KU1) |
2011-2012 |
01 |
| 003 |
20927853 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 11) (ARGENT) (ACDelco #20927853) |
N (UYS, UYT, UYU, UYW, UYX, UYY, U44) (EXC KA1, KU1) (EXPORT) |
2011-2012 |
01 |
| 003 |
20927855 |
CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 11) (ARGENT) (ACDelco #20927855) |
N (KA1, KU1, UYS, UYT, UYU, UYW, UYX, UYY, U44) |
2011-2012 |
01 |
| 004 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) |
|
2010-2012 |
02 |
| 005 |
11609457 |
SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (RDO) |
|
2010-2012 |
04 |
| 006 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2010-2012 |
|
| 007 |
22856975 |
RADIO, RECEIVER NAV (ACDelco #22856975) (LABELED 22856975) |
N (UYX) (EXPORT) |
2012-2012 |
01 |
| 008 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P CARR) (10.701) |
|
2010-2012 |
40 |
| 009 |
20838854 |
HARNESS, RDO WRG HARN EXTN |
N (UA2, UTC, UBT) (EXPORT) |
2012-2012 |
01 |
| 010 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2012 |
|
| 011 |
|
CLIP, STEREO CLK RDO) (PART OF 3) |
|
2010-2012 |
|
| 012 |
20908396 |
COVER, I/P UPR TR (BLACK) (POP UP CVR FOR NAV DISPLAY) |
N (UXY, UYS, UYT, UYU, UYW, UYX, UYY, U44, 4AA, 4AJ, 4A5) |
2011-2012 |
01 |
| 012 |
20908397 |
COVER, I/P UPR TR (BROWNSTONE) (POP UP CVR FOR NAV DISPLAY) |
N (UXY, UYS, UYT, UYU, UYW, UYX, UYY, U44, 4AF) |
2011-2012 |
01 |
