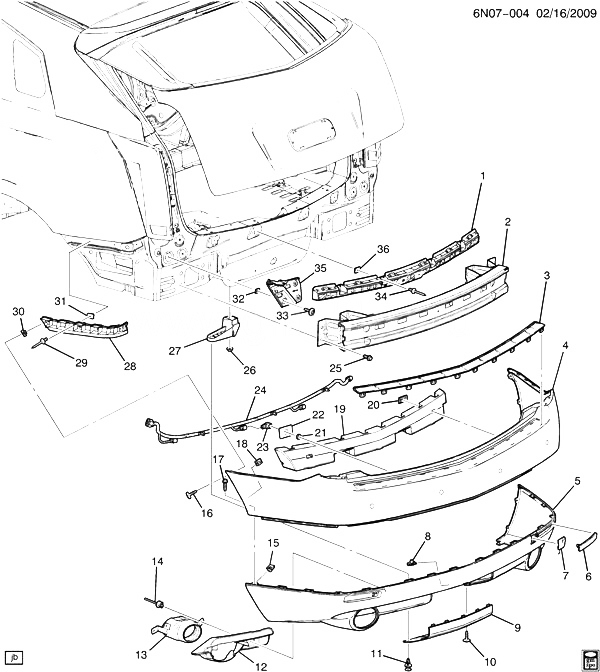

(6N07-004) 2010-2012 N БАМПЕР ЗАДНИЙ CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20904552 BRACKET, RR BPR FASCIA CTR (INCLS 36) N 2010-2012 01
002 15925979 BAR, RR BPR IMP N (EXC VGP) 2010-2012 01
002 15925980 BAR, RR BPR IMP N (VGP) 2010-2012 01
003 22875126 PROTECTOR, RR BPR FASCIA (BLACK) N 2010-2012 01
004 20835692 FASCIA, RR BPR UPR (INCLS 22) (PAINT TO MATCH) N (EXC UD5) 2010-2012 01
004 20835693 FASCIA, RR BPR UPR (INCLS 22) (PAINT TO MATCH) N (UD5) 2010-2012 01
005 25777280 FASCIA, RR BPR LWR (INCLS 12) N 2010-2012 01
006 25881881 REFLECTOR, RR N 2010-2012 01
006 25881882 REFLECTOR, RR N 2010-2012 01
007 25777324 COVER, RR BPR FASCIA TOW HOOK ACC HOLE (BLACK) N 2010-2012 01
008 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR BPR FASCIA OPG CVR) (ACDelco #11513599) 2010-2012 02
009 25777325 COVER, RR BPR FASCIA TRLR HITCH ACC HOLE (BLACK) N 2010-2012 01
010 11609762 SCREW, RND HD W/FL WA, M4.2X1.41X25, 17 OD, 18 THD, STL PER ISO2702, GMW42 (RR BPR FASCIA OPG CVR) 2010-2012 02
011 11589290 RETAINER, PUSH-IN, FITS 6.5 HOLE, 4.5 -7.0 THK PNL, NYLON 6/6 GMP.PA66.0 (RR BPR LWR FASCIA (PUSH IN)) 2010-2012 04
012 BRACKET, EXH PIPE RR H/SHLD (PART OF 5) 2010-2012
013 25827292 SLEEVE, EXH TAIL PIPE HT N 2010-2012 01
013 25859596 SLEEVE, EXH TAIL PIPE HT N 2010-2012 01
014 11516807 RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (RR BPR FASCIA REINF) 2010-2012 06
015 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR BPR FASCIA) (ACDelco #11513599) 2010-2012 04
016 11609762 SCREW, RND HD W/FL WA, M4.2X1.41X25, 17 OD, 18 THD, STL PER ISO2702, GMW42 (RR W/H LNR) 2010-2012 12
017 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR BPR FASCIA) 2010-2012 04
018 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR W/H LNR) (ACDelco #11513599) 2010-2012 06
019 25777323 ABSORBER, RR BPR ENGY N 2010-2012 01
020 94515232 RETAINER, RR BPR ENGY ABS ANC PLT (PUSH ON) (7.836) N 2010-2012 02
021 RING, PARK ASST ALARM SEN (PART OF 23) 2010-2012
022 15271277 BRACKET, RR PARK ASST ALARM SEN (PART OF 4) (7.831) N (UD5) 2010-2012 04
022 20945244 BRACKET, RR PARK ASST ALARM SEN (0.1 KGS) (PART OF 4) (INCLS SENSOR BEZELS) (7.831) N (EXC UD5) 2010-2012 01
022 20945244 BRACKET, RR PARK ASST ALARM SEN (PART OF 4) (INCLS SENSOR BEZELS) (7.831) N (EXC UD5) 2012-2012 01
023 20777093 SENSOR, RR PARK ASST ALARM (INCLS 21) (PRIMED) N (UD5) 2010-2012 04
024 20846751 HARNESS, RR OBJECT ALARM SEN WRG N (UD5) 2010-2012 01
025 11515767 BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (RR BPR IMP BAR) (T/W 12345493) 2010-2012 08
026 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR BPR LWR FASCIA) 2010-2012 02
027 20823532 BRACKET, RR BPR LWR FASCIA N 2010-2012 01
027 20823533 BRACKET, RR BPR LWR FASCIA N 2010-2012 01
028 20907398 BRACKET, RR BPR FASCIA SI (INCLS 30, 31) N 2010-2012 01
028 22804736 BRACKET, RR BPR FASCIA SI (INCLS 30, 31) N 2010-2012 01
029 09132667 RIVET, RR BPR FASCIA SI BRKT (7.833) N 2010-2012 08
030 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 28) (10.512) 2010-2012 01
031 SEAL, RR BPR FASCIA SI BRKT (PART OF 28) 2010-2012
032 11610510 NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (RR BPR FASCIA BRKT) 2010-2012 06
033 11609935 SCREW, HEX HD W/FLAT WA, M4.2X1.41 (RR BPR FASCIA BRKT) 2010-2012 06
034 09132667 RIVET, RR BPR FASCIA BRKT (7.833) N 2010-2012 04
035 20904549 BRACKET, RR BPR FASCIA N 2010-2012 01
035 20904550 BRACKET, RR BPR FASCIA N 2010-2012 01
036 SEAL, RR BPR FASCIA (PART OF 1) 2010-2012
