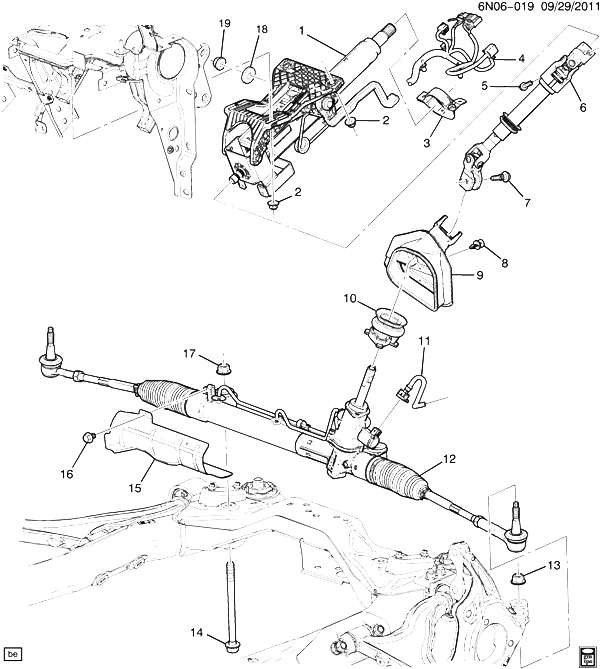

(6N06-019) 2011-2013 N СИСТЕМА РУЛЕВОГО УПРАВЛЕНИЯ И СВЯЗАННЫЕ ДЕТАЛИ CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20943673 COLUMN, STRG (INCLS 19) N (ULS) 2011-2012 01
001 22959839 COLUMN, STRG (INCLS 19) N (ULS) 2012-2012 01
001 22828134 COLUMN, STRG (INCLS 19) N (EXC ULS) 2011-2012 01
002 11588293 NUT, HFH W/NYLON INSERT, M8X1.25, 12.7 THD, 23 OD, 10 STL, GMW4707, PREV TORQ (STRG COL) 2011-2013 04
003 13261364 RETAINER, PWR ST WRG HARN CONN N 2011-2013 01
004 HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2011-2013
005 11571223 BOLT, UPR INTER STRG SHF (M8X1.25X36, 27THD) N 2011-2013 01
006 20841581 SHAFT, INTER STRG N 2011-2013 01
007 15170149 BOLT, INTER STRG SHF LWR (M8X1.25X38.7, 20THD) (INCLS NYLON SLEEVE) N 2011-2013 01
008 11589290 RETAINER, PUSH-IN, FITS 6.5 HOLE, 4.5 -7.0 THK PNL, NYLON 6/6 GMP.PA66.0 (INTER STRG SHF BOOT) 2011-2013 01
009 25918350 SEAL, INTER STRG SHF UPR N 2011-2013 01
010 15873200 SEAL, STRG COL DA N 2011-2013 01
011 HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) 2011-2013
012 15950145 GEAR, STRG (SEE GROUP 06.000 STEERING GEAR FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15950145) N (EXC NV7) 2011-2013 01
012 15950143 GEAR, STRG (SEE GROUP 06.000 STEERING GEAR FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15950143) N (NV7) 2011-2013 01
013 11609282 NUT, STRG LNKG OTR TIE ROD (M12X1.75X16, 26OD) (16.714) N 2011-2013 02
014 11571260 BOLT, S/GR (8.900) N 2011-2013 02
015 25991723 SHIELD, S/GR HT N 2011-2013 01
016 11516421 BOLT, HFH, M6X1X10, 14.2 O.D., 9.8, 7114M (S/GR H/SHLD) 2011-2013 01
017 11516382 NUT, S/GR (INR) (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) N 2011-2013 02
018 BEARING, STRG COL TILT TLSCP ADJR LVR THR 2011-2013
019 NUT, STRG COL (PART OF 1) 2011-2013
