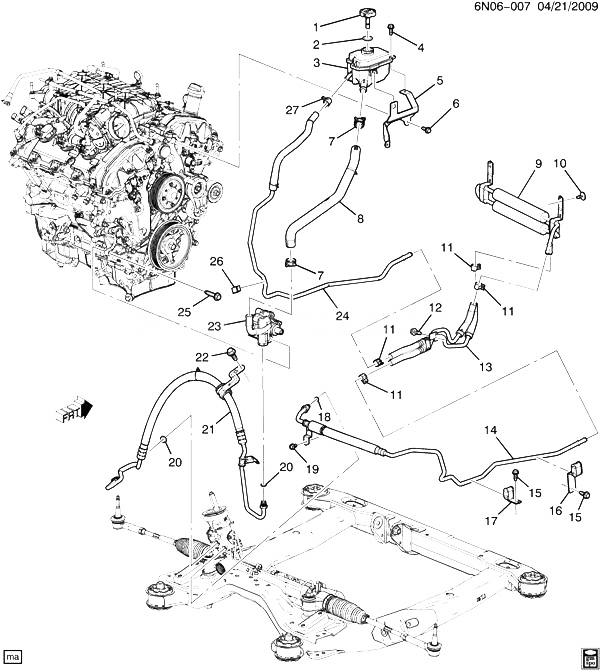

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22840018 |
CAP, P/S FLUID RSVR (INCLS 2) |
N (LFW, LFX) |
2012-2013 |
01 |
| 002 |
|
SEAL, P/S FLUID RSVR CAP (O RING) (PART OF 1) |
|
2012-2013 |
|
| 003 |
13287295 |
RESERVOIR, P/S FLUID (LESS CAP) |
N (LFW, LFX) |
2012-2013 |
01 |
| 004 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) |
|
2010-2013 |
01 |
| 005 |
13259109 |
BRACKET, P/S FLUID RSVR |
N (LFW, LFX) |
2012-2013 |
01 |
| 006 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR BRKT) |
|
2010-2013 |
02 |
| 007 |
11611305 |
CLAMP, SPRINGBAND, D 29.8, W 15, MTL SK-5M, FNSH MFC-A (PART OF 8) |
|
2010-2013 |
02 |
| 008 |
20893355 |
HOSE, P/S FLUID RSVR OTLT (INCLS 7) |
N (LFW, LFX) |
2012-2013 |
01 |
| 009 |
20907760 |
COOLER, P/S FLUID |
N |
2010-2013 |
01 |
| 010 |
11609982 |
BOLT, HEX W/FL WA, M6X1X22, 14.55 THD, 24 OD, 8.8, GMW3359, M-PT. (P/S FLUID CLR BRKT) |
|
2010-2013 |
02 |
| 011 |
92188740 |
CLAMP, P/S GR OTLT HOSE |
N |
2012-2013 |
04 |
| 012 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID CLG PIPE BRKT) |
|
2010-2013 |
01 |
| 013 |
22876334 |
HOSE, P/S FLUID CLR INL OTLT |
N (LFW, LFX) |
2012-2013 |
01 |
| 014 |
|
HOSE, P/S GR OTLT (*KIT1) |
|
2012-2013 |
|
| 015 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR OTLT HOSE BRKT) |
|
2010-2013 |
02 |
| 016 |
|
BRACKET, P/S GR OTLT PIPE INSL (*KIT1) |
|
2012-2013 |
|
| 017 |
|
BRACKET, P/S GR OTLT PIPE INSL (*KIT1) |
|
2012-2013 |
|
| 018 |
20935184 |
SEAL, P/S GR OTLT HOSE (GEAR END) (*KIT1) |
N |
2010-2013 |
02 |
| 019 |
25622442 |
BOLT, P/S GR OTLT HOSE BRKT (M8X1.25X13) (4.785) |
N (LFW, LFX) |
2012-2013 |
01 |
| 020 |
20935184 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 21) (GEAR END) |
N |
2010-2013 |
02 |
| 021 |
20893352 |
HOSE, P/S GR INL (INCLS 20) |
N |
2012-2012 |
01 |
| 022 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR INL HOSE BRKT) |
|
2010-2013 |
01 |
| 023 |
13505837 |
PUMP, P/S (ACDelco #13505837) |
N (LFW, LFX) |
2012-2013 |
01 |
| 024 |
|
HOSE, P/S FLUID RSVR INL (*KIT1) |
|
2012-2013 |
|
| 025 |
11519980 |
BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (P/S PUMP) |
|
2010-2013 |
03 |
| 026 |
|
CLIP, P/S GR INL HOSE (*KIT1) |
|
2011-2013 |
|
| 027 |
11517127 |
CLAMP, SPRING, 17MM-NOM, BLK (P/S FLUID RSVR INL HOSE) (*KIT1) |
|
2010-2013 |
01 |
| K01 |
22876336 |
HOSE, P/S GR OTLT P/S FLUID RSVR INL (INCLS 14, 16-18, 24, 26, 27) |
N (LFW, LFX) |
2012-2012 |
01 |
