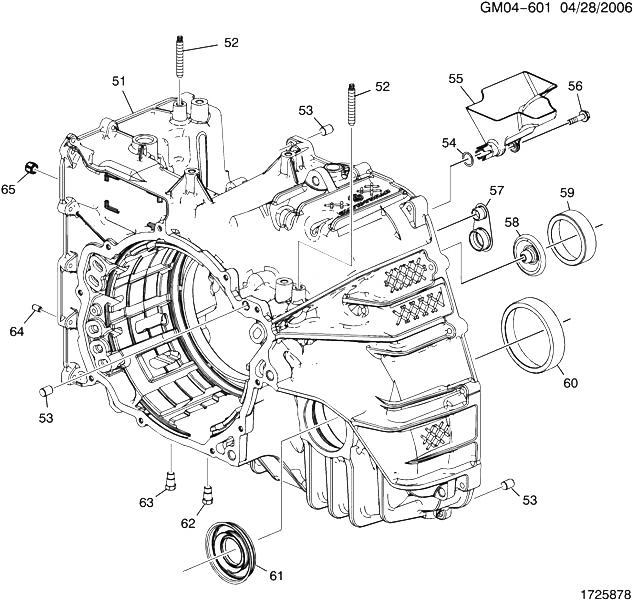

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 009 |
|
BOLT, VLV BODY |
|
2010-2013 |
04 |
| 051 |
|
CASE, A/TRNS (INCLS 53, 57-61, 64, 65) |
|
2010-2012 |
|
| 052 |
24238097 |
STUD, TRANS FLUID CLR PIPE (M8X1.25X17, M8X1.25X28, 57 OAL, 9.8, E-7 EXT TORX) (ACDelco #24238097) |
N |
2010-2013 |
02 |
| 053 |
08644685 |
PIN, TRANS CASE LOC (PART OF 51) (CHAN PLT ALIGN) (4.265) (ACDelco #8644685) |
N (MH2, MH4) |
2010-2012 |
03 |
| 054 |
|
SEAL, A/TRNS FLUID TROUGH (O-RING) (PART OF 55) |
|
2010-2012 |
|
| 055 |
24239418 |
TROUGH, A/TRNS FLUID (INCLS 54) |
N (MH2, MH4) |
2010-2012 |
01 |
| 056 |
08680884 |
BOLT, A/TRNS FLUID TROUGH (M6X1.0X31) (4.228) |
N (MH2, MH4) |
2010-2012 |
01 |
| 057 |
|
SEAL, A/TRNS PUMP FLUID OTLT (PART OF 51) (*KIT1) |
|
2010-2012 |
|
| 058 |
24217840 |
DAM, FRT DIFF DRV P/GR LUB (PART OF 51) (ACDelco #24217840) |
N (MH2, MH4, F07) |
2010-2012 |
01 |
| 059 |
24248292 |
BEARING, FRT DIFF DRV P/GR (PART OF 51) (KIT INCLS BEARING, CUP, INSTRUCTION) |
N (MH2, MH4, F07) |
2010-2012 |
02 |
| 060 |
24233947 |
CUP, FRT DIFF CARR BRG (PART OF 51) (A/TRANS CASE SIDE) (USE ON TRANS BUILT BEFORE 1/30/12 (JULIAN DATE 12-030). TRANS BUILT AFTER USE KIT 19260230) |
N (LFW, LFX, MH2, F07) (EXC F46) |
2012-2012 |
01 |
| 060 |
24233947 |
CUP, FRT DIFF CARR BRG (PART OF 51) (A/TRANS CASE SIDE) (USE ON TRANS BUILT BEFORE 1/30/12 (JULIAN DATE 12-030). TRANS BUILT AFTER USE KIT 19260230) |
N (LFW, LFX, MH4, F07, F46) |
2012-2012 |
01 |
| 061 |
19258266 |
SEAL KIT, FRT WHL DRV SHF (PART OF 51) (A/TRANS CASE SIDE) (INCLS SEAL, PROTECTOR, INSTRUCTION) (ACDelco #19258266) |
|
2010-2013 |
|
| 062 |
08654382 |
PLUG, A/TRNS FLUID PRESS TEST HOLE (ACDelco #8654382) |
N (MH2, MH4) |
2010-2012 |
01 |
| 063 |
08654382 |
PLUG, A/TRNS FLUID LVL HOLE (ACDelco #8654382) |
N (MH2, MH4) |
2010-2012 |
01 |
| 064 |
24227105 |
PIN, C/VLV BODY LOC (PART OF 51) (VLV BODY) (4.262) |
N (MH2, MH4) |
2010-2012 |
03 |
| 065 |
24225384 |
SEAL, 1-2-3-4 CLU FLUID PASG (PART OF 51) (*KIT2) |
N (MH2, MH4) |
2011-2012 |
01 |
| K01 |
24256112 |
SEAL KIT, A/TRNS SERV (INCLUDES TRANS FILTER) (DOES NOT INCLUDE CLUTCH PISTONS W/BONDED SEALS. CLUTCH PISTONS WITH BONDED SEALS MUST BE ORDERED SEPARATELY) (INCLS 57) (O/H KIT) (ACDelco #24256112) (USED FOR JULIAN DATE 12-120 (04-29-12) AND PRIOR WITH A |
N (MH2, MH4) (1ST DES) |
2012-2012 |
01 |
| K01 |
24264377 |
SEAL KIT, A/TRNS SERV (INCLUDES TRANS FILTER) (DOES NOT INCLUDE CLUTCH PISTONS W/BONDED SEALS. CLUTCH PISTONS WITH BONDED SEALS MUST BE ORDERED SEPARATELY) (INCLS 57) (ACDelco #24264377) (USED FOR JULIAN DATE 12-121 (04-30-12) AND PRIOR WITH A PLANT CODE |
N (MH2, MH4) (2ND DES) |
2012-2012 |
01 |
| K01 |
24256112 |
SEAL KIT, A/TRNS SERV (INCLUDES TRANS FILTER) (DOES NOT INCLUDE CLUTCH PISTONS W/BONDED SEALS. CLUTCH PISTONS WITH BONDED SEALS MUST BE ORDERED SEPARATELY) (INCLS 57) (O/H KIT) (ACDelco #24256112) (USED FOR JULIAN DATE 12-137 (05-16-12) AND PRIOR WITH A |
N (MH2, MH4) (1ST DES) |
2012-2012 |
01 |
| K01 |
24264377 |
SEAL KIT, A/TRNS SERV (INCLUDES TRANS FILTER) (DOES NOT INCLUDE CLUTCH PISTONS W/BONDED SEALS. CLUTCH PISTONS WITH BONDED SEALS MUST BE ORDERED SEPARATELY) (INCLS 57) (ACDelco #24264377) (USED FOR JULIAN DATE 12-138 (05-17-12) AND FORWARD WITH A PLANT CO |
N (MH2, MH4) (2ND DES) |
2012-2012 |
01 |
| K02 |
24256111 |
BODY KIT, C/VLV (INCLS 65) (VB KIT) (ACDelco #24256111) (USED FOR JULIAN DATE 12-120 (04-29-12) AND PRIOR WITH A PLANT CODE OF W) (FOR 2ND DES SEE 24264376) |
N (MH2, MH4) (1ST DES) |
2012-2012 |
01 |
| K02 |
24264376 |
BODY KIT, C/VLV (INCLS 65) (ACDelco #24264376) (USED FOR JULIAN DATE 12-121 (04-30-12) AND FWD WITH A PLANT CODE OF W) (FOR 1ST DES SEE 24256111) |
N (MH2, MH4) (2ND DES) |
2012-2012 |
01 |
| K02 |
24256111 |
BODY KIT, C/VLV (INCLS 65) (VB KIT) (ACDelco #24256111) (USED FOR JULIAN DATE 12-137 (05-16-12) AND PRIOR WITH A PLANT CODE OF 4) (FOR 2ND DES SEE 24264376) |
N (MH2, MH4) (1ST DES) |
2012-2012 |
01 |
| K02 |
24264376 |
BODY KIT, C/VLV (INCLS 65) (ACDelco #24264376) (USED FOR JULIAN DATE 12-121 (04-30-12) AND FWD WITH A PLANT CODE OF 4) (FOR 1ST DES SEE 24256111) |
N (MH2, MH4) (2ND DES) |
2012-2012 |
01 |
