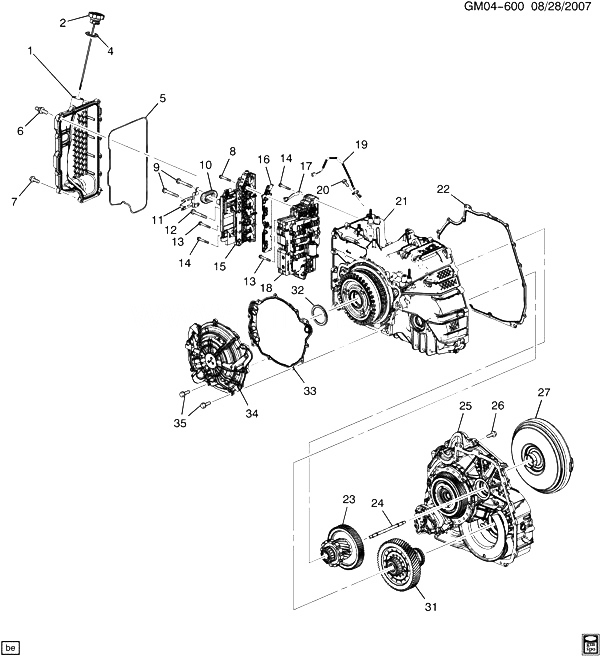

(GM04-600) 2010-2012 N АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MH2,MH4) 6T70 CASE RELATED PARTS CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24240937 COVER, C/VLV BODY (INCLS CONTROL VALVE BODY GASKET) (ACDelco #24240937) N (MH2, MH4) 2010-2012 01
002 24225190 INDICATOR, TRANS FLUID LVL N (MH2, MH4) 2010-2012 01
004 24238738 SEAL, TRANS FLUID LVL IND N (MH2, MH4) 2010-2012 01
005 24229593 GASKET, C/VLV BODY CVR (*KIT1) (ACDelco #24229593) N (MH2, MH4) 2010-2012 01
006 24232800 STUD, C/VLV BODY CVR (ACDelco #24232800) N 2010-2013 02
007 11588714 BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (VLV BODY CVR) 2010-2013 12
008 24233409 BOLT, VLV BODY (M6X1.0X42) (ACDelco #24233409) N (MH2, MH4) 2010-2012 01
009 11515286 BOLT, VLV BODY (M6X1.0X80) N (MH2, MH4) 2010-2012 01
010 SEAL, C/VLV BODY CVR WRG CONN HOLE (*KIT1) 2010-2012
011 24228953 SPRING, CONT SOL VLV (ACDelco #24228953) N (MH2, MH4) 2010-2012 01
012 24210075 BOLT, VLV BODY (M6X1.0X95.0) (NTBP) (4.226) (ACDelco #24210075) N (MH2, MH4) 2010-2012 03
013 11515262 BOLT, HFH, M6X1X55, 18THD, 14.2 O.D., 9.8, PC (VLV BODY) 2010-2013 02
014 24207861 BOLT, VLV BODY (M6X1X65) (ACDelco #24207861) N (MH2, MH4) 2010-2012 05
015 24267182 VALVE, CONT SOL (W/ BODY TCM) (INCLS 16) N (MH4, F07) 2012-2012 01
015 24267182 VALVE, CONT SOL (W/ BODY TCM) (INCLS 16) N (MH2, F07) 2012-2012 01
016 PLATE, CONT SOL VLV FLTR (PART OF 15) (*KIT1) 2010-2012
017 24237643 DETENT, MAN SHFT (ACDelco #24237643) N (MH2, MH4) 2010-2012 01
018 BODY, C/VLV (SEE GROUP 04.000 CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) 2010-2013
019 24256878 SENSOR, A/TRNS OUTPUT SPD (4.337) (ACDelco #24256878) N (MH2, MH4) 2010-2012 01
019 24256878 SENSOR, A/TRNS OUTPUT SPD (ACDelco #24256878) N (MH2, MH4) 2010-2012 01
020 08680884 BOLT, A/TRNS OUTPUT SPD SEN (M6X1.0X31) (4.228) N (MH2, MH4) 2010-2012 01
020 08680884 BOLT, A/TRNS OUTPUT SPD SEN (M6X1.0X31) (4.228) N (MH2, MH4) 2010-2012 01
021 CASE, A/TRNS (SEE GROUP 04.000 AUTOMATIC TRANSMISSION 6T70 CASE ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2012
022 24237725 SEAL, T/CV HSG OTR N (MH2, MH4) 2010-2012 01
023 GEAR, FRT DIFF DRV PINION (W/ TRFER GR) (SEE GROUP 04.000 FRONT DIFFERENTIAL TRANSFER GEAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
024 24223658 TUBE, FRT DIFF DRV P/GR LUB N (MH2, MH4, F07) 2010-2012 01
025 HOUSING, T/CV SUPT A/TRNS FLUID PMP (SEE GROUP 04.000 DIFFERENTIAL HOUSING, GEAR SUPPORT FLUID PUMP FOR DETAILED ILLUSTRATED VIEW) 2010-2013
026 11515759 BOLT, FLG HD (M8-1.25X35)9.8 ZOR (T/CV DIFF HSG) 2010-2013 17
027 24262816 CONVERTER, TORQ N (MH2, MH4) 2010-2012 01
031 CARRIER, FRT DIFF (SEE GROUP 04.000 FRONT DIFFERNTIAL CARRIER FOR DETAILED ILLUSTRATED VIEW) (6.056) 2010-2013
032 24223834 BEARING, INPUT SHF THR (ACDelco #24223834) N 2010-2013 01
033 24237724 GASKET, A/TRNS CASE CVR (ACDelco #24237724) N (MH2, MH4) 2010-2012 01
034 COVER, A/TRNS CASE (SEE GROUP 04.000 CASE COVER, 2-6 LOW REVERSE PISTONS FOR DETAILED ILLUSTRATED VIEW) 2010-2013
035 11588714 BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (A/TRNS CASE CVR) 2010-2013 10
K01 24256111 BODY KIT, C/VLV (INCLS 5, 10, 16) (VB KIT) (ACDelco #24256111) (USED FOR JULIAN DATE 12-120 (04-29-12) AND PRIOR WITH A PLANT CODE OF W) (FOR 2ND DES SEE 24264376) N (MH2, MH4) (1ST DES) 2012-2012 01
K01 24264376 BODY KIT, C/VLV (INCLS 5, 10, 16) (ACDelco #24264376) (USED FOR JULIAN DATE 12-121 (04-30-12) AND FWD WITH A PLANT CODE OF W) (FOR 1ST DES SEE 24256111) N (MH2, MH4) (2ND DES) 2012-2012 01
K01 24256111 BODY KIT, C/VLV (INCLS 5, 10, 16) (VB KIT) (ACDelco #24256111) (USED FOR JULIAN DATE 12-137 (05-16-12) AND PRIOR WITH A PLANT CODE OF 4) (FOR 2ND DES SEE 24264376) N (MH2, MH4) (1ST DES) 2012-2012 01
K01 24264376 BODY KIT, C/VLV (INCLS 5, 10, 16) (ACDelco #24264376) (USED FOR JULIAN DATE 12-121 (04-30-12) AND FWD WITH A PLANT CODE OF 4) (FOR 1ST DES SEE 24256111) N (MH2, MH4) (2ND DES) 2012-2012 01
