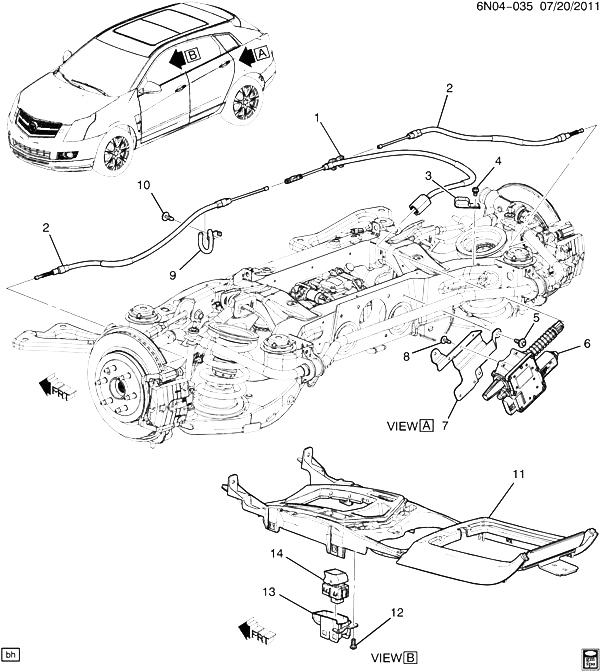

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15875094 |
CABLE, PARK BRK INTER (INCLS 3) (ACDelco #15875094) |
N |
2012-2013 |
01 |
| 002 |
20911716 |
CABLE, PARK BRK RR (ACDelco #20911716) |
N |
2012-2013 |
01 |
| 002 |
20911717 |
CABLE, PARK BRK RR (ACDelco #20911717) |
N |
2012-2013 |
01 |
| 003 |
|
RETAINER, PARK BRK INTER CBL (PART OF 1) |
|
2012-2013 |
|
| 004 |
25622442 |
BOLT, PARK BRK RR CBL CLIP (M8X1.25X13) |
N |
2012-2013 |
01 |
| 005 |
11609669 |
BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ELEK PARK BRK CONT MOD) |
|
2012-2013 |
03 |
| 006 |
13505410 |
MODULE, ELEK PARK BRK CONT (ACDelco #13505410) |
N (JJK) |
2012-2012 |
01 |
| 007 |
25846426 |
BRACKET, ELEK PARK BRK CONT MOD |
N (JJK) |
2012-2013 |
01 |
| 008 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (ELEK PARK BRK CONT MOD) |
|
2012-2013 |
04 |
| 009 |
20895654 |
BRACKET, PARK BRK CBL |
N |
2012-2013 |
01 |
| 010 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (PARK BRK CBL BRKT) |
|
2012-2013 |
01 |
| 011 |
20945235 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 CONSOLE ASM FOR DETAILED ILLUSTRATED VIEW) (TITANIUM) |
N (MH2, MH4, 4AJ) |
2012-2012 |
01 |
| 011 |
20945234 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 CONSOLE ASM FOR DETAILED ILLUSTRATED VIEW) (BLACK) |
N (MH2, MH4, 4AA) |
2012-2012 |
01 |
| 011 |
20945236 |
PLATE, F/FLR CNSL TR (SEE GROUP 10.000 CONSOLE ASM FOR DETAILED ILLUSTRATED VIEW) (SHALE) |
N (MH2, MH4, 4AF, 4A5) |
2012-2012 |
01 |
| 012 |
11569991 |
BOLT, F/FLR CNSL (M4X0.7X11.86) (16.650) |
NG |
2012-2013 |
AR |
| 013 |
|
RETAINER, F/FLR CNSL TRANS SHFT OPG TR PLT |
|
2012-2013 |
|
| 014 |
25887469 |
SWITCH, PARK BRK |
N |
2012-2012 |
01 |
