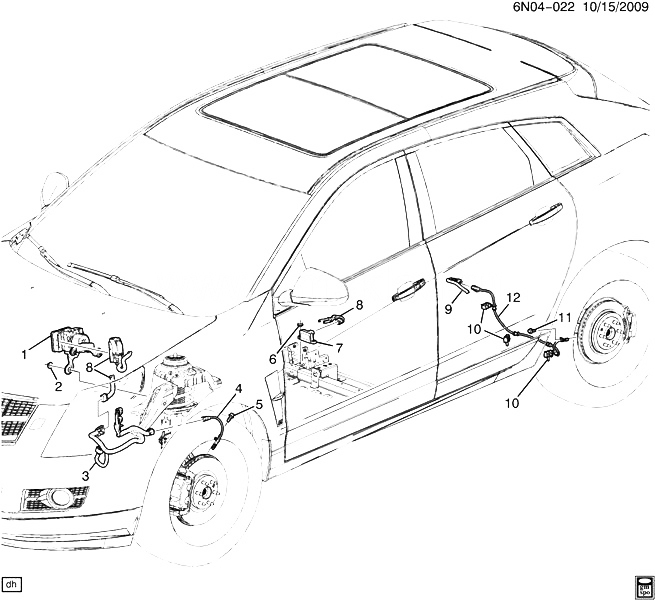

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
VALVE, BRK PRESS MOD (SEE GROUP 04.000 BRAKE CONTROL MODULATOR VALVE FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PRESS MOD VLV BRKT) |
|
2010-2013 |
03 |
| 003 |
22841383 |
HARNESS, FRT WHL SPD SEN WRG (LABELED 22841383 OR 13894204) (FOR 1ST DES SEE 22798580) |
N (F45, TT6, TT7, TT8) (2ND DES) |
2012-2012 |
01 |
| 003 |
20979199 |
HARNESS, FRT WHL SPD SEN WRG (ACDelco #20979199) (LABELED 20979199 OR 13820381) (FOR 2ND DES SEE 22806722) |
N (F45, TT6, TT7, TT8) (1ST DES) |
2012-2012 |
01 |
| 003 |
22798580 |
HARNESS, FRT WHL SPD SEN WRG (LABELED 22798580 OR 13862415) (FOR 2ND DES SEE 22841383) |
N (F45, TT6, TT7, TT8) (1ST DES) |
2012-2012 |
01 |
| 003 |
22870906 |
HARNESS, FRT WHL SPD SEN WRG (ACDelco #22870906) |
N (F45) |
2010-2013 |
01 |
| 004 |
15921849 |
SENSOR, FRT WHL SPD (ACDelco #15921849) |
N (JL9) |
2010-2012 |
02 |
| 005 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (WHL SPD SEN) |
|
2010-2013 |
04 |
| 006 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (VEH LGTDNL ACCLRM SEN) |
|
2010-2013 |
02 |
| 007 |
13505726 |
SENSOR, VEH YAW (W/ VEH LATL LGTDNL ACCLRM) |
N |
2010-2012 |
01 |
| 008 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 009 |
20944448 |
HARNESS, CHAS RR WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) (1ST DES LABELED 13802530, 22858886, 13896399 OR 20944448) (FOR 2ND DES SEE 22888847) |
N (LFW, LFX, F45, F46, JJK) (1ST DES) |
2012-2012 |
01 |
| 009 |
22888847 |
HARNESS, CHAS RR WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) (2ND DES LABELED 13923489 OR 22888847) (FOR 1ST DES SEE 20944448) |
N (LFW, LFX, F45, F46, JJK, N08) (2ND DES) |
2012-2012 |
01 |
| 009 |
22888848 |
HARNESS, CHAS RR WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
N (LFW, LFX, F45, F46, JJK) (EXC N08) |
2012-2012 |
01 |
| 010 |
19168094 |
CLIP, WHL SPD SEN WIRE (PART OF 12) (BLACK) (19X7.62) ( (2)SQUARE HOLES ON FLAT TOP) (TREE FITS 6.6 DIA HOLE, NYLON 6/6) |
N |
2010-2013 |
01 |
| 011 |
11588715 |
BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (WHL SPD SEN) |
|
2010-2013 |
01 |
| 012 |
15921850 |
SENSOR, RR WHL SPD (INCLS 10) (ACDelco #15921850) |
N (JL9) |
2010-2012 |
01 |
| 012 |
25894693 |
SENSOR, RR WHL SPD (INCLS 10) (ACDelco #25894693) |
N (JL9) |
2010-2012 |
01 |
