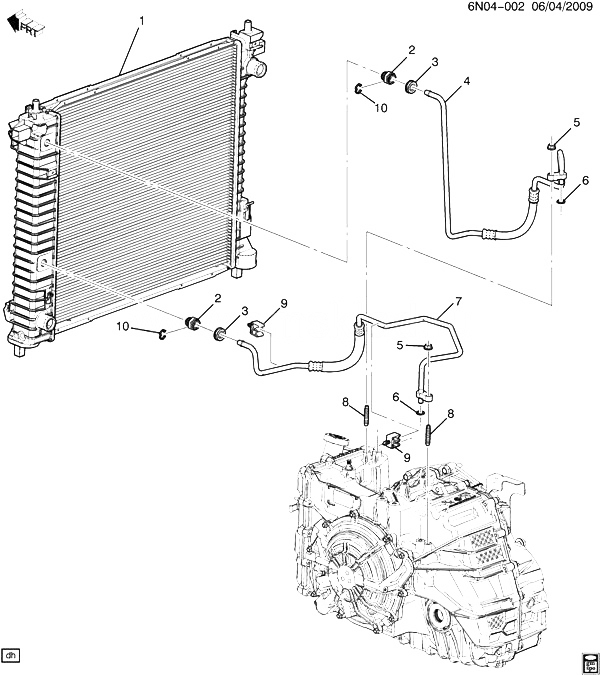

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20926497 |
RADIATOR, (INCLS 2, 10) (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #21773) |
N |
2012-2013 |
01 |
| 002 |
15226661 |
FITTING, TRANS FLUID CLR PIPE (PART OF 1) (INCLS 10) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) |
N |
2010-2013 |
02 |
| 003 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (AT RAD) (PART OF 4, 7) (PLASTIC RETAINER) (ACDelco #15052228) |
N |
2010-2013 |
AR |
| 004 |
20941877 |
PIPE, TRANS FLUID CLR INL (INCLS 3, 6) (ACDelco #20941877) |
N (MH2, MH4) |
2010-2012 |
01 |
| 005 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (TRANS FLUID CLR) (8.915) (ACDelco #11514596) |
|
2010-2013 |
02 |
| 006 |
25874797 |
SEAL, TRANS FLUID CLR PIPE (PART OF 4, 7) (SLIMLINE WASHER 3/8) (ACDelco #25874797) |
N |
2012-2013 |
01 |
| 007 |
20941878 |
PIPE, TRANS FLUID CLR OTLT (INCLS 3, 6, 9) (ACDelco #20941878) |
N (MH2, MH4) |
2010-2012 |
01 |
| 008 |
24238097 |
STUD, TRANS FLUID CLR PIPE (M8X1.25X17, M8X1.25X28, 57 OAL, 9.8, E-7 EXT TORX) (ACDelco #24238097) |
N |
2010-2013 |
02 |
| 009 |
10415915 |
CLIP, TRANS FLUID CLR PIPE (PART OF 7) (HOLDS TWO 9.50 LINES W/PUSH-IN RETAINER) (NYLON) |
N |
2010-2013 |
01 |
| 010 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 1, 2) (EXPANDING SPRING WIRE) (ACDelco #24205103) |
N |
2010-2013 |
01 |
