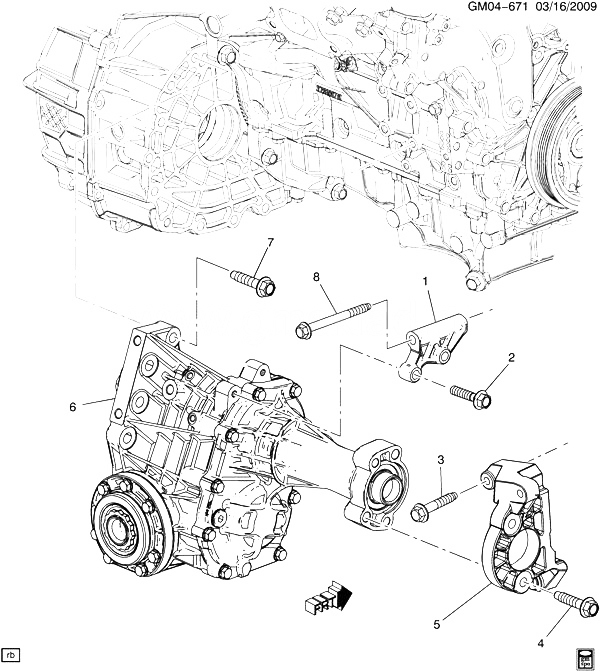

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12610059 |
BRACE, TRANSAXLE |
N (MH4) |
2011-2012 |
01 |
| 002 |
11588755 |
BOLT, HFH, M10X1.5X115, 26 THD, 22.3 OD, 10.9, GMW3359 (TRANSAXLE BR) |
|
2010-2013 |
01 |
| 003 |
11519171 |
BOLT, TRFER CASE BRKT (M8X1.25X50) (3.275) |
N |
2010-2013 |
02 |
| 004 |
11518630 |
BOLT, HFH, M10X1.5X60, 26 THD, 22.3 OD, 10.9, GMW3359, MAT POINT (TRFER CASE RR) |
|
2010-2013 |
02 |
| 005 |
55560070 |
BRACKET, TRFER CASE |
N |
2010-2013 |
01 |
| 006 |
24263835 |
CASE, TRFER (W/GEARS) (SEE GROUP 04.000 TRANSFER CASE FOR DETAILED ILLUSTRATED VIEW) (WHEN REPLACING TRANSFER CASE 55573147 WITH 55574304 MUST REPLACE VENT ASM W/ 55571898) |
N |
2012-2013 |
01 |
| 007 |
11609605 |
BOLT, HFH, M12X1.75X60, 46 THD, 26.6 OD, 10.9, GMW3359, MAT POINT (TRFER CASE) |
|
2010-2013 |
05 |
| 008 |
11588755 |
BOLT, HFH, M10X1.5X115, 26 THD, 22.3 OD, 10.9, GMW3359 (TRANSAXLE BR) |
|
2010-2013 |
01 |
