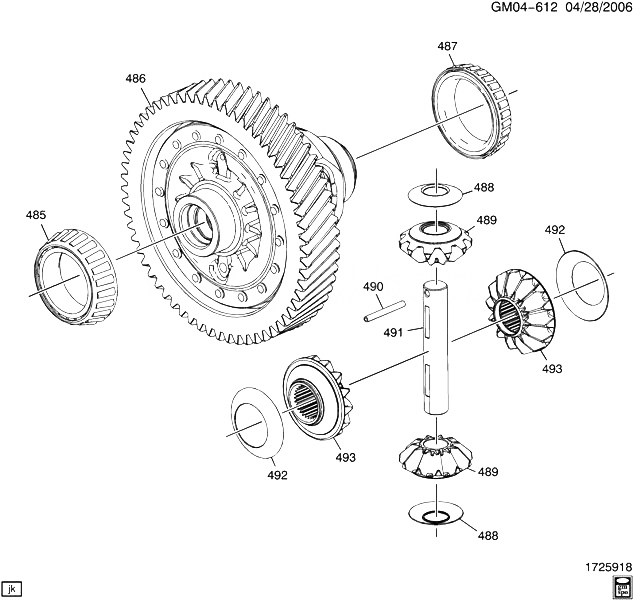

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 485 |
|
BEARING, FRT DIFF CARR (PART OF 486) |
|
2010-2012 |
|
| 485 |
|
BEARING, FRT DIFF CARR (PART OF 486) (*KIT1) |
|
2010-2012 |
|
| 486 |
|
CARRIER KIT, FRT DIFF (INCLS 485, 487-493) |
|
2010-2013 |
|
| 486 |
24233752 |
CARRIER, FRT DIFF (INCLS 485, 487-493) (ACDelco #24233752) (USE ON TRANS BUILT BEFORE 1/30/12 (JULIAN DATE 12-030). TRANS BUILT AFTER USE KIT 19260257) |
N (LFW, LFX, MH2, F07) (EXC F46) |
2012-2012 |
01 |
| 486 |
24243523 |
CARRIER, FRT DIFF (INCLS 485, 487-493) (3.39 RATIO) (ACDelco #24243523) (USE ON TRANS BUILT BEFORE 1/30/12 (JULIAN DATE 12-030). TRANS BUILT AFTER USE KIT 19260258) |
N (LFW, LFX, MH4, F07, F46) |
2012-2012 |
01 |
| 486 |
19260257 |
CARRIER KIT, FRT DIFF (INCLS 485, 487-493) (ACDelco #19260257) (USE ON TRANS BUILT ON 1/30/12 (JULIAN DATE 12-030) AFTER. TRANS BUILT PRIOR SEE 24233752) |
N (LFW, LFX, MH2, F07) (EXC F46) |
2012-2012 |
01 |
| 486 |
19260257 |
CARRIER KIT, FRT DIFF (INCLS 485, 487-493) (6.056) (ACDelco #19260257) (USE ON TRANS BUILT ON 1/30/12 (JULIAN DATE 12-030) AFTER. TRANS BUILT PRIOR SEE 24233752) |
N (LFW, LFX, MH2, F07) (EXC F46) |
2012-2012 |
01 |
| 486 |
19260258 |
CARRIER KIT, FRT DIFF (INCLS 485, 487-493) (ACDelco #19260258) (USE ON TRANS BUILT ON 1/30/12 (JULIAN DATE 12-030) AFTER. TRANS BUILT PRIOR SEE 24243523) |
N (LFW, LFX, MH4, F07, F46) |
2012-2012 |
01 |
| 486 |
19260258 |
CARRIER KIT, FRT DIFF (INCLS 485, 487-493) (6.056) (ACDelco #19260258) (USE ON TRANS BUILT ON 1/30/12 (JULIAN DATE 12-030) AFTER. TRANS BUILT PRIOR SEE 24243523) |
N (LFW, LFX, MH4, F07, F46) |
2012-2012 |
01 |
| 487 |
24233777 |
BEARING, FRT DIFF CARR (PART OF 486) (T/CV DIFF HSG SIDE) (*KIT1) (ACDelco #24233777) (USE ON TRANS BUILT BEFORE 1/30/12 (JULIAN DATE 12-030). TRANS BUILT AFTER USE KIT 19260230) |
N (MH2, MH4) |
2012-2012 |
01 |
| 488 |
|
WASHER, FRT DIFF P/GR THR (PART OF 486) |
|
2010-2012 |
|
| 489 |
|
GEAR, FRT DIFF PINION (PART OF 486) |
|
2010-2012 |
|
| 490 |
24242827 |
PIN, FRT DIFF P/GR SHF LK (PART OF 486) |
N (MH2, MH4) |
2010-2012 |
01 |
| 491 |
|
SHAFT, FRT DIFF PINION (PART OF 486) |
|
2010-2012 |
|
| 492 |
|
WASHER, FRT DIFF SI GR THR (PART OF 486) |
|
2010-2012 |
|
| 493 |
|
GEAR, FRT DIFF SI (PART OF 486) |
|
2010-2012 |
|
| K01 |
19260230 |
BEARING KIT, FRT DIFF (INCLS 485, 487) (5.505) (ACDelco #19260230) (USE ON TRANS BUILT ON 1/30/12 (JULIAN DATE 12-030) AFTER. TRANS BUILT PRIOR SEE CPS 24233947 (CUP), 24233777 (BRG)) |
N (LFW, LFX, MH2, F07) (EXC F46) |
2012-2012 |
01 |
| K01 |
19260230 |
BEARING KIT, FRT DIFF (INCLS 485, 487) (5.505) (ACDelco #19260230) (USE ON TRANS BUILT ON 1/30/12 (JULIAN DATE 12-030) AFTER. TRANS BUILT PRIOR SEE CPS 24233947 (CUP), 24233777 (BRG)) |
N (LFW, LFX, MH4, F07, F46) |
2012-2012 |
01 |
