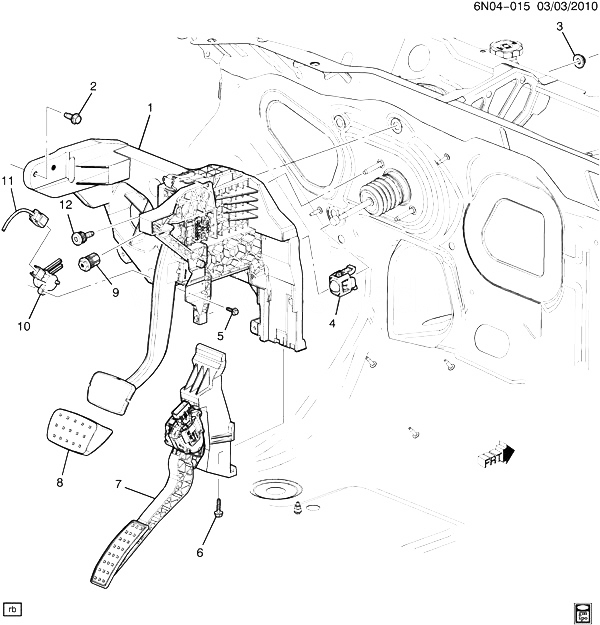

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22888757 |
BRACKET, BRK PED (INCLS 9, 12) |
N (JL9) (EXC JF4) |
2010-2013 |
01 |
| 002 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (BRK PED BRKT) |
|
2010-2013 |
04 |
| 003 |
25632772 |
NUT, BRK ACCEL CLU PED BRKT (M8X1.25X6.5) (W/CONICAL WASHER) (8.915) |
N |
2010-2013 |
04 |
| 003 |
25632772 |
NUT, BRK ACCEL CLU PED BRKT (M8X1.25X6.5) (W/CONICAL WASHER) (8.915) |
N |
2010-2013 |
04 |
| 003 |
25632772 |
NUT, BRK ACCEL CLU PED BRKT (M8X1.25X6.5) (W/CONICAL WASHER) (8.915) |
N |
2010-2013 |
04 |
| 004 |
25897230 |
RETAINER, BRK PED PUSH ROD |
N (JL9) |
2010-2013 |
01 |
| 005 |
11609999 |
BOLT, BRK ACCEL CLU PED BRKT (HXHD-M4X0.7X20, 13THD) (8.900) |
N |
2010-2013 |
01 |
| 005 |
11609999 |
BOLT, BRK ACCEL CLU PED BRKT (HXHD-M4X0.7X20, 13THD) (8.900) |
N |
2010-2013 |
01 |
| 005 |
11609999 |
BOLT, BRK ACCEL CLU PED BRKT (HXHD-M4X0.7X20, 13THD) (8.900) |
N |
2010-2013 |
01 |
| 006 |
11571022 |
BOLT, HFH, M4.2X1.41 PLASTITE, 25 LENGTH, 14 OD, GM6202M STEEL, GMW42 (BRK ACCEL PED BRKT) |
|
2010-2013 |
02 |
| 007 |
|
PEDAL, ACCEL (W/POSN SEN) (SEE GROUP 03.000 ACCELERATOR CONTROL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 008 |
25897227 |
PAD, BRK PED |
N |
2010-2013 |
01 |
| 009 |
|
NUT, BRK ACCEL PED BRKT (PART OF 1) |
|
2010-2013 |
|
| 010 |
13579088 |
SENSOR, BRK PED POSN (ACDelco #13579088) |
N (JL9) |
2012-2012 |
01 |
| 010 |
13579088 |
SENSOR, BRK PED POSN (4.625) (ACDelco #13579088) |
N (JL9) |
2012-2012 |
01 |
| 011 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 012 |
|
BOLT, BRK ACCEL PED BRKT (PART OF 1) |
|
2010-2013 |
|
