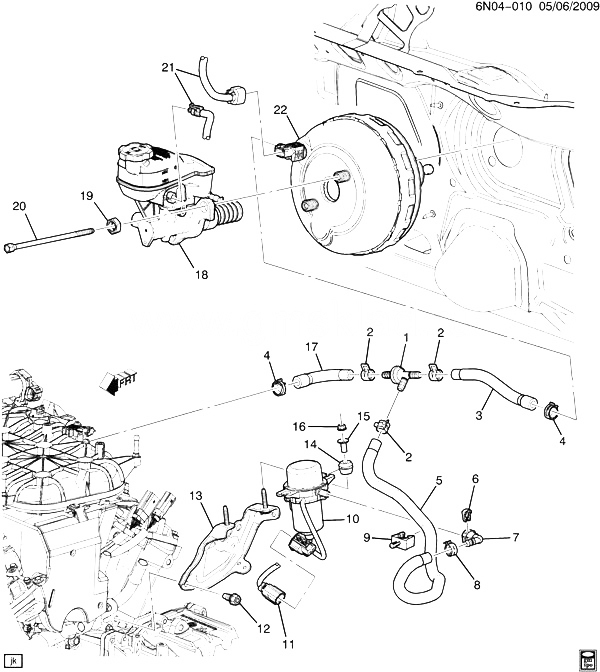

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20791947 |
VALVE, P/B BOOS VAC CHK (@ENGINE VACUUM PUMP) (4.931) (ACDelco #20791947) |
N (LFW, LFX) |
2012-2013 |
01 |
| 002 |
11516220 |
CLAMP, 20MM DIA HOSE, 15MM WIDTH, 6298M MATL (P/B BOOS VAC HOSE) |
|
2010-2013 |
01 |
| 003 |
20855429 |
HOSE, P/B BOOS VAC (ACDelco #176-1670) |
N (LFX, LFW) |
2012-2013 |
01 |
| 004 |
11609970 |
CLAMP, WORM GEAR, 14.22-26.92 DIA, 13.25 THK, STAINLESS STL. (P/B BOOS VAC HOSE) |
|
2010-2013 |
02 |
| 005 |
20791949 |
HOSE, P/B BOOS VAC (INCLS 6, 7) (ACDelco #176-1657) |
N (LFX, LFW) |
2012-2013 |
01 |
| 006 |
22717568 |
RETAINER, FUEL FEED HOSE CONN (PART OF 5, 7) (3/8 INCH QUICK CONNECT RETAINER CLIP) |
N (LFW, LFX) |
2012-2013 |
01 |
| 007 |
22696901 |
FITTING, P/B BOOS INL HOSE CONN (PART OF 5) (INCLS 6) (3.120) |
N |
2010-2013 |
01 |
| 008 |
11610794 |
CLAMP, SPRINGBAND, HOSE DIA 19MM, WIDTH 10MM, 6298M MATL. (P/B BOOS VAC HOSE) |
|
2010-2013 |
01 |
| 009 |
15045389 |
RETAINER, P/B BOOS (PUSH ON) (HOLDS (1) 17 DIA LINE) (W/TREE) (9.242) |
N (LFX, LFW) |
2012-2013 |
01 |
| 010 |
20939309 |
PUMP, P/B BOOS AUX (INCLS 14, 15) (180MM WIRE HARNESS) (4.830) (ACDelco #20939309) |
N (LFW, LFX) |
2012-2013 |
01 |
| 011 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 012 |
11589040 |
BOLT, P/B BOOS PUMP BRKT (M10X1.5X22) (4.115) (TO ATTACH VAC PUMP ASM (W/BRKT ASM)) |
N (LFW, LFX) |
2012-2013 |
02 |
| 013 |
20811016 |
BRACKET, P/B BOOS PUMP (BRKT WITH STUD (PUMP MTG-TOP)) |
N (LFW, LFX) |
2012-2013 |
01 |
| 014 |
|
INSULATOR, P/B BOOS PUMP (PART OF 10) (*KIT1) |
|
2012-2013 |
|
| 015 |
|
SPACER, P/B BOOS PUMP (PART OF 10) (*KIT1) |
|
2012-2013 |
|
| 016 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (P/B BOOS PUMP) |
|
2010-2013 |
02 |
| 017 |
20791945 |
HOSE, P/B BOOS VAC (ACDelco #176-1656) |
N (LFX, LFW) |
2012-2013 |
01 |
| 018 |
20819270 |
CYLINDER, BRK MAS (INCLS 19) (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #174-1197) |
N |
2010-2012 |
01 |
| 019 |
11571173 |
NUT, BRK M/CYL (PART OF 18) (M18X1.5, 9.2 THK) (W/ADHESIVE) |
N |
2010-2013 |
02 |
| 020 |
11516421 |
BOLT, P/B BOOS (8.900) |
N |
2010-2013 |
02 |
| 021 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 022 |
20819285 |
BOOSTER, P/B (VAC) (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #178-0820) |
N |
2012-2013 |
01 |
| K01 |
25775922 |
INSULATOR KIT, P/B BOOS PUMP (INCLS 14, 15) (ON PUMP) |
N (LFW, LFX) |
2012-2013 |
01 |
