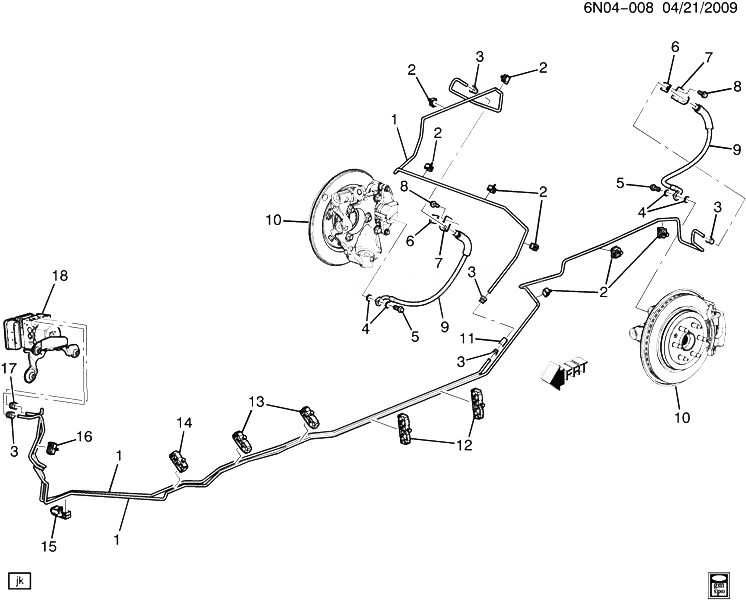

(6N04-008) 2010-2013 N ТОРМОЗНЫЕ МАГИСТРАЛИ ЗАДНИЕ CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88983905 PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) N 2010-2013 AR
002 25955888 RETAINER, FRT RR BRK PIPE (FITS 6.25 DIA HOLE AND RETAINS 5.1 DIA LINE, NYLON, BLACK) N 2010-2013 AR
003 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK PIPE) 2010-2013 05
004 21012386 WASHER, RR BRK HOSE (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) N 2010-2013 04
005 11569590 BOLT, RR BRK HOSE (M10X1X27.5, 16.9THD) (BANJO) N 2010-2013 01
006 11569742 RETAINER, RR BRK HOSE (28X25X4.7) (1 SIDED RETAINER) N 2010-2013 02
007 22812803 BRACKET, FRT RR BRK PIPE FTG (FRT/RH RR/LH) N 2010-2013 01
007 22812804 BRACKET, FRT RR BRK PIPE FTG (FRT/LH RR/RH) N 2010-2013 01
008 11569590 BOLT, RR BRK HOSE (M10X1X27.5, 16.9THD) (BANJO) N 2010-2013 01
009 20842853 HOSE, RR BRK (W/SLEEVE END-FITTINGS) (ACDelco #176-1668) N 2010-2013 01
009 20842855 HOSE, RR BRK (W/SLEEVE END-FITTINGS) (ACDelco #176-1669) N 2010-2013 01
010 KNUCKLE, RR SUSP (SEE GROUP 07.000 SUSPENSION/REAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
011 11518565 UNION, INVERTED FLARE TUBE M10X1X25.75, SAE12L14, GMW4700M (BRK PIPE) (8.963) 2010-2013 01
012 25938682 CLIP, BRK FUEL FEED EVAP EMIS PIPE (5 WAY) N (LFW, LFX) 2012-2013 02
013 25938681 CLIP, BRK FUEL FEED EVAP EMIS PIPE (HOLDS (4) LINES) (W/TREE) N (LFW, LFX) 2012-2013 02
014 25938683 CLIP, BRK FUEL FEED EVAP EMIS PIPE (4 WAY) N (LFW, LFX) 2012-2013 01
015 22734194 CLIP, BRK FUEL FEED EVAP EMIS PIPE (HOLDS (2)3/8 (2)3/16 PIPES TO WELD STUD) (3.162) N (LFW, LFX) 2012-2013 01
016 25938659 CLIP, RR BRK FRT PIPE N (LFW, LFX) 2012-2013 01
017 11569750 NUT, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (RR BRK PIPE) 2010-2013 01
018 VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE CONTROL MODULATOR VALVE MOUNTING FOR DETAILED ILLUSTRATED VIEW) 2010-2013
