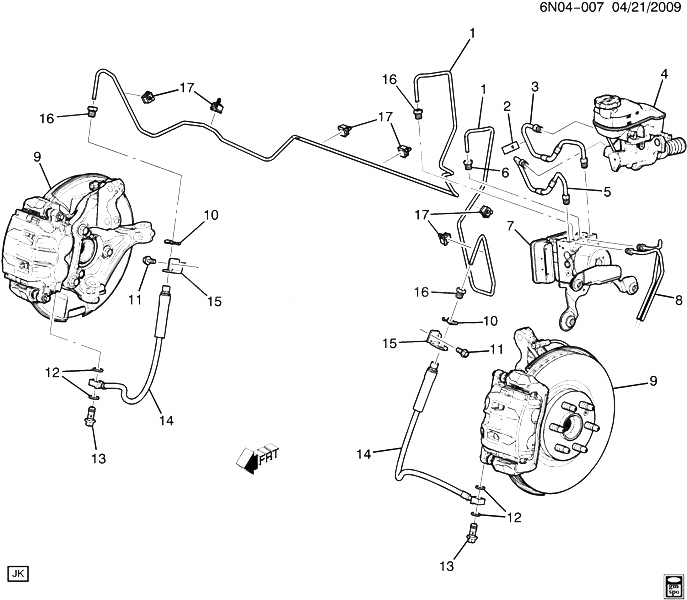

(6N04-007) 2010-2013 N ТОРМОЗНЫЕ МАГИСТРАЛИ ПЕРЕДНИЕ CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88983905 PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) N 2010-2013 02
002 22696641 CLIP, BRK PRESS MOD VLS M/CYL RSVR FRT PIPE (HOLDS (2) PIPES) (ATTACHES TO WELD STUD) (4.686) N 2010-2013 01
003 15874959 PIPE, BRK (PRIMARY-BRK PIPE MSTR CYL TO ABS) (ACDelco #15874959) N 2010-2012 01
004 20819270 CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #174-1197) N 2010-2012 01
005 15874960 PIPE, BRK (SECONDARY-BRK PIPE MSTR CYL TO ABS) (ACDelco #15874960) N (LHD) 2010-2012 01
006 11569750 NUT, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (FRT BRK PIPE) 2010-2013 01
007 VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE CONTROL MODULATOR VALVE MOUNTING FOR DETAILED ILLUSTRATED VIEW) 2010-2013
008 PIPE, BRK (SEE GROUP 04.000 BRAKE LINES/REAR FOR DETAILED ILLUSTRATED VIEW) 2010-2013
009 KNUCKLE, STRG (W/HUB) (SEE GROUP 06.000 SUSPENSION/FRONT FOR DETAILED ILLUSTRATED VIEW) 2010-2013
010 11569742 RETAINER, FRT BRK HOSE (28X25X4.7) (1 SIDED RETAINER) N 2010-2013 02
011 11561025 BOLT, HFH, M6X1X16, 13.5 THD, 14.2 OD, GMW25 STL, GMW3200, MACH, HDR-PT (FRT BRK HOSE BRKT) 2010-2013 02
012 21012386 WASHER, FRT BRK HOSE (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) N 2010-2013 04
013 11569669 BOLT, FRT BRK HOSE (M10X1.5X23, 13THD) (BANJO) N 2010-2013 02
014 20842848 HOSE, FRT BRK (W/SLEEVE END-FITTINGS) (ACDelco #176-1666) N 2010-2013 01
014 20842850 HOSE, FRT BRK (W/SLEEVE END-FITTINGS) (ACDelco #176-1667) N 2010-2013 01
015 22812803 BRACKET, FRT RR BRK PIPE FTG (FRT/RH RR/LH) N 2010-2013 01
015 22812804 BRACKET, FRT RR BRK PIPE FTG (FRT/LH RR/RH) N 2010-2013 01
016 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (FRT BRK PIPE) 2010-2013 03
017 25955888 RETAINER, FRT RR BRK PIPE (FITS 6.25 DIA HOLE AND RETAINS 5.1 DIA LINE, NYLON, BLACK) N 2010-2013 AR
