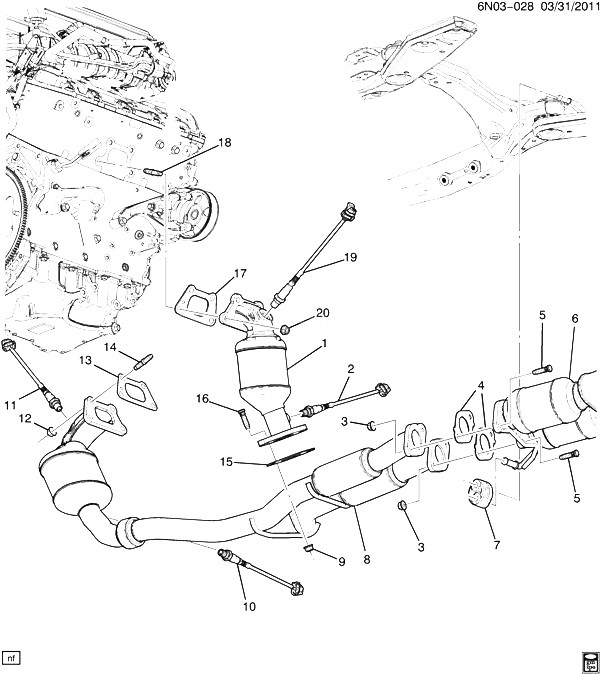

(6N03-028) 2012-2013 N ВЫПУСКНАЯ СИСТЕМА/ПЕРЕДНЯЯ ЧАСТЬ (LFW/3.0-5,LFX/3.6-3) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20899953 CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (INCLS 15, 16) N (LFW, LFX) 2012-2013 01
002 12634061 SENSOR, HTD OXY (POST-CATALYST BANK 1 SEN 2) (ACDelco #12634061) N (LFW, LFX) 2012-2013 01
003 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MUFF) (ACDelco #11517996) 2012-2013 04
004 20952540 GASKET, EXH MUFF (PART OF 6) (3.613) N 2012-2013 01
005 11569930 STUD, EXH MUFF (PART OF 6) N 2012-2013 02
006 MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 4, 5, 7) (SEE GROUP 03.000 EXHAUST SYSTEM - REAR FOR DETAILED ILLUSTRATED VIEW) 2012-2013
007 22925672 INSULATOR, EXH FRT PIPE (PART OF 6) N 2012-2013 01
008 20983455 CONVERTER, 3WAY CTLTC (W/EXH FRT MANIF PIPE) N (LFW, LFX) 2012-2013 01
009 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH FRT PIPE) (ACDelco #11517996) 2012-2013 02
010 12634061 SENSOR, HTD OXY (POST-CATALYST BANK 2 SEN 2) (ACDelco #12634061) N (LFW, LFX) 2012-2013 01
011 12634061 SENSOR, HTD OXY (PRE-CATALYST BANK 2 SEN 1) (ACDelco #12634061) N (LFW, LFX) 2012-2013 01
012 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MANIF FRT PIPE) (ACDelco #11517996) 2012-2013 04
013 20893953 GASKET, EXH MANIF FRT PIPE (W/4 MTG HOLES) N 2012-2013 01
014 11610977 STUD, EXH MANIF FRT PIPE (-FLANGE, M10X1.5X26, M10X1.5X20) N (LFW, LFX) 2012-2013 04
015 20952540 GASKET, EXH FRT PIPE (PART OF 1) N 2012-2013 01
016 11569930 STUD, CTLTC CONV OTLT PIPE FLG (PART OF 1) (3.704) N (LFW, LFX) 2012-2013 02
017 20893953 GASKET, EXH MANIF RR PIPE (W/4 MTG HOLES) N 2012-2013 01
018 11610977 STUD, EXH MANIF RR PIPE (-FLANGE, M10X1.5X26, M10X1.5X20) N (LFW, LFX) 2012-2013 04
019 12634061 SENSOR, HTD OXY (PRE-CATALYST BANK 1 SEN 1) (ACDelco #12634061) N (LFW, LFX) 2012-2013 01
020 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MANIF RR PIPE) (ACDelco #11517996) 2012-2013 04
