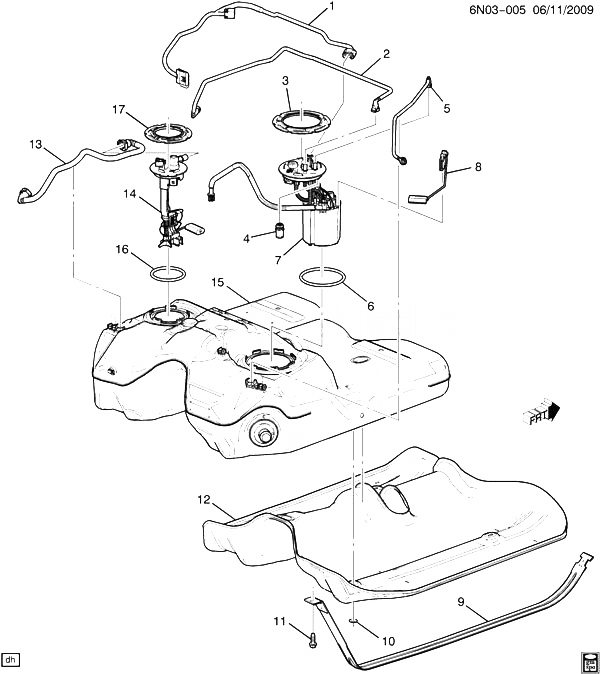

(6N03-005) 2010-2013 N ТОПЛИВНЫЙ БАК (EXC EXTERNAL FILTER KX2) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25896666 HARNESS, CHAS WRG N 2012-2013 01
002 25896667 PIPE, FUEL FEED (ATTACHES TO TOP OF FUEL TANK) N (FHO, FHS) 2012-2013 01
003 10325852 CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) N (FHO, FHS) 2012-2013 01
004 VALVE, F/TNK VENT (PART OF 7) 2010-2013
005 25896938 HOSE, F/TNK FIL EVAP EMIS N (FHS, NT7, NU5) 2012-2013 01
005 25896937 HOSE, F/TNK FIL EVAP EMIS N (FHO, NA3, NE9) (EXC KX2) (EXPORT) 2012-2013 01
005 25896938 HOSE, F/TNK FIL EVAP EMIS N (FHO, NQU) (EXC KX2) (EXPORT) 2012-2013 01
005 25896938 HOSE, F/TNK FIL EVAP EMIS N (FHS, NF9) (EXPORT) 2012-2013 01
006 22682111 SEAL, F/PMP (O RING) (PART OF 7) (APPROX SIZE147.5MM X 6MM) (ACDelco #G41) N 2010-2013 01
007 13578368 MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) N (FHS, NF9, NT7, NU5) 2012-2012 01
007 13578368 MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (3.107) N (FHS, NF9, NT7, NU5) 2012-2012 01
007 20919757 MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (ACDelco #M10282) N (FHO, NA3, NE9) (EXC KX2) (EXPORT) 2012-2013 01
007 20919757 MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (3.107) (ACDelco #M10282) N (FHO, NA3, NE9) (EXC KX2) (EXPORT) 2012-2013 01
007 13578360 MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (ACDelco #M100026) N (FHO, NQU) (EXC KX2) 2012-2013 01
007 13578360 MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (3.107) (ACDelco #M100026) N (FHO, NQU) (EXC KX2) 2012-2013 01
008 13581735 SENSOR KIT, FUEL LVL (INCLS 6) (ACDelco #SK1396) N 2010-2013 01
009 22755976 STRAP, F/TNK N 2010-2013 02
010 10009923 NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (F/TNK SHLD) 2010-2013 04
011 11515767 BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (F/TNK STRP) (T/W 12345493) 2010-2013 02
012 15871538 SHIELD, F/TNK HT N 2012-2013 01
013 25896681 HOSE, EVAP EMIS N 2012-2013 01
014 13580096 SENDER KIT, FUEL (INCLS 16) (SECONDARY) (ACDelco #SK1393) N (FHO, NQU) (EXC KX2) 2012-2013 01
014 13580096 SENDER KIT, FUEL (INCLS 16) (SECONDARY) (ACDelco #SK1393) N (FHS, NF9, NT7, NU5) 2012-2012 01
014 20820553 SENDER KIT, FUEL (INCLS 16) (SECONDARY) (ACDelco #SK1341) N (FHO, NA3, NE9) (EXC KX2) 2012-2012 01
015 22744668 TANK, FUEL (MUST USE T/W SENDER KIT 13580096) N (FHS, NF9, NT7, NU5) 2012-2012 01
015 22744668 TANK, FUEL (MUST USE T/W SENDER KIT 13580096) N (FHO, NQU) (EXC KX2) 2012-2012 01
015 22773762 TANK, FUEL N (FHO, NA3, NE9) (EXC KX2) 2012-2012 01
016 15776433 SEAL, F/PMP (O RING) (PART OF 14) (APPROX SIZE112.5X6.0) (3.112) (ACDelco #G48) N 2010-2013 01
016 22682111 SEAL, F/PMP (O RING) (PART OF 14) (APPROX SIZE147.5MM X 6MM) (ACDelco #G41) N 2010-2013 01
017 15776431 CAM, FUEL SDR (95 MM TANK OPENING CAM LOCK RING) (ACDelco #15776431) N (FHO, FHS) 2012-2013 01
