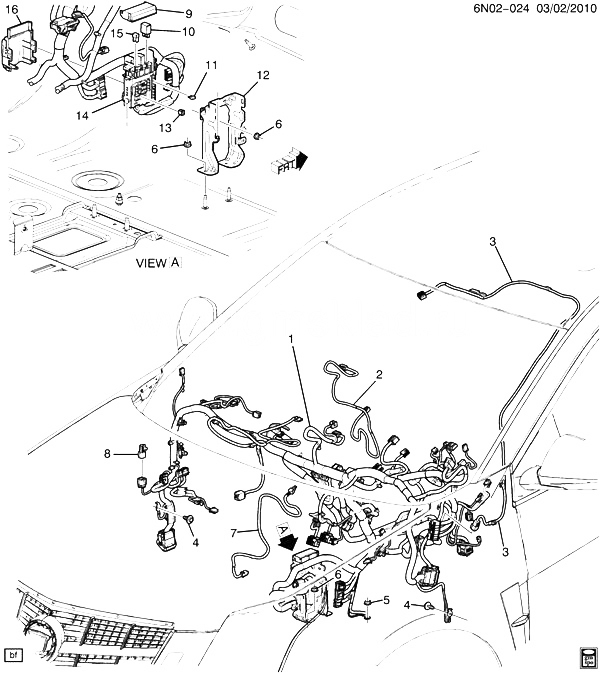

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20897431 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ2, UYS) (EXC JF4) |
2012-2012 |
01 |
| 001 |
20897432 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897432 OR 13781054) (FOR 2ND DES SEE 22924078) |
N (CJ2, JF4, UWG, UYS) (1ST DES) |
2012-2012 |
01 |
| 001 |
20897433 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, UWG, UYS) (EXC JF4) |
2012-2012 |
01 |
| 001 |
20897434 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897434 OR 13781056) (FOR 2ND DES SEE 22924080) |
N (CJ4, JF4, UWG, UYS) (1ST DES) |
2012-2012 |
01 |
| 001 |
20897435 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897435 OR 13781057) (FOR 2ND DES SEE 22924081) |
N (CJ2, JF4, UE1, UYZ) (1ST DES) |
2012-2012 |
01 |
| 001 |
20897436 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ2, JF4, UE1, UYZ) |
2012-2012 |
01 |
| 001 |
20897437 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, UE1, UYZ) (EXC JF4) |
2012-2012 |
01 |
| 001 |
20897438 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, UE1, UYZ) (EXC JF4) |
2012-2012 |
01 |
| 001 |
20897443 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897443 OR 13781065) (FOR 2ND DES SEE 22924104) |
N (CJ2, C3U, UE1, UYE) (EXC JF4) (1ST DES) |
2012-2012 |
01 |
| 001 |
20897443 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897443 OR 13781065) (FOR 2ND DES SEE 22924104) |
N (CJ2, TSQ, UE1, UYE) (EXC C3U, JF4) (1ST DES) |
2012-2012 |
01 |
| 001 |
20897444 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897444 OR 13781066) (FOR 2ND DES SEE 22924105) |
N (CJ2, JF4, UE1, UYE) (1ST DES) |
2012-2012 |
01 |
| 001 |
20897445 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, UE1, UYE) (EXC JF4) |
2012-2012 |
01 |
| 001 |
20897446 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, JF4, UE1, UYE) |
2012-2012 |
01 |
| 001 |
20897447 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897447 OR 13781069) (FOR 2ND DES SEE 22924108) |
N (CJ2, UE1, UYE) (EXC C3U, JF4, TSQ) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912942 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912942 OR 13785222) (FOR 2ND DES SEE 22924109) |
N (CJ2, UPH, UYY) (EXC JF4) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912943 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912943 OR 13785223) (FOR 2ND DES SEE 22924110) |
N (CJ2, JF4, UPH, UYY) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912944 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912944 OR 13785220) (FOR 2ND DES SEE 22924111) |
N (CJ4, UPH, UYY) (EXC JF4) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912945 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912945 OR 13785221) (FOR 2ND DES SEE 22924112) |
N (CJ4, JF4, UPH, UYY) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912946 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912946 OR 13785227) (FOR 2ND DES SEE 22924113) |
N (CJ2, UYZ) (EXC JF4, UE1) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912947 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ2, JF4, UYZ) (EXC UE1) |
2012-2012 |
01 |
| 001 |
20912948 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912948 OR 13785229) (FOR 2ND DES SEE 22924115) |
N (CJ4, UYZ) (EXC JF4, UE1) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912949 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912949 OR 13785224) (FOR 2ND DES SEE 22924164) |
N (CJ4, JF4, UYZ) (EXC UE1) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912950 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912950 OR 13785225) (FOR 2ND DES SEE 22924165) |
N (CJ2, C3U, UYE) (EXC JF4, UE1) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912950 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20912950 OR 13785225) (FOR 2ND DES SEE 22924165) |
N (CJ2, TSQ, UYE) (EXC C3U, JF4, UE1) (1ST DES) |
2012-2012 |
01 |
| 001 |
20912951 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ2, JF4, UYE) (EXC UE1) |
2012-2012 |
01 |
| 001 |
20912952 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, UYE) (EXC JF4, UE1) |
2012-2012 |
01 |
| 001 |
20912953 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, JF4, UYE) (EXC UE1) |
2012-2012 |
01 |
| 001 |
20912954 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ2, EXT, UYE) (EXC C3U, JF4, UE1) |
2012-2012 |
01 |
| 001 |
22743498 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22743498 OR 13839603) (FOR 2ND DES SEE 22924170) |
N (CJ2, JF4, UYS) (EXC UWG) (1ST DES) |
2012-2012 |
01 |
| 001 |
22743499 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22743499 OR 13839604) (FOR 2ND DES SEE 22924171) |
N (CJ4, JF4, UYS) (EXC UWG) (1ST DES) |
2012-2012 |
01 |
| 001 |
22794136 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, C99, JF4, LHD, UE1, UYF) |
2012-2012 |
01 |
| 001 |
22924078 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924078 OR 13938002) (FOR 1ST DES SEE 20897432) |
NG (CJ2, JF4, UWG, UYS) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924080 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924080 OR 13938004) (FOR 1ST DES SEE 20897434) |
NG (CJ4, JF4, UWG, UYS) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924081 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924081 OR 13938005) (FOR 1ST DES SEE 20897435) |
NG (CJ2, JF4, UE1, UYZ) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924105 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924105 OR 13938013) (FOR 1ST DES SEE 20897444) |
NG (CJ2, JF4, UE1, UYE) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924110 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924110 OR 13938020) (FOR 1ST DES SEE 20912943) |
NG (CJ2, JF4, UPH, UYY) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924112 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924112 OR 13938018) (FOR 1ST DES SEE 20912945) |
NG (CJ4, JF4, UPH, UYY) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924164 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924164 OR 13938021) (FOR 1ST DES SEE 20912949) |
NG (CJ4, JF4, UYZ) (EXC UE1) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924114 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924113 OR 13938024) (FOR 1ST DES SEE 20912946) |
NG (CJ2, JF4, UYZ) (EXC UE1) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924166 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924165 OR 13938022) (FOR 1ST DES SEE 20912950) |
NG (CJ2, C3U, UYE) (EXC JF4, UE1) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924166 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924165 OR 13938022) (FOR 1ST DES SEE 20912950) |
NG (CJ2, TSQ, UYE) (EXC C3U, JF4, UE1) (2ND DES) |
2012-2012 |
01 |
| 001 |
22924178 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, JF4, UE1, UYZ) |
2012-2012 |
01 |
| 001 |
20897427 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897427 OR 13781049) (FOR 2ND DES SEE 22924073) |
N (CJ2, C99, UPH, UPJ, UXY, UYU, UYW, UYX, U44) (EXC JF4) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897428 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897428 OR 13781050) (FOR 2ND DES SEE 22924074) |
N (CJ2, C99, JF4, LHD, UPH, UPJ, UXY, UYU, UYW, UYX, U44) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897429 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897429 OR 13781051) (FOR 2ND DES SEE 22924075) |
N (CJ4, C99, UPH, UPJ, UXY, UYU, UYW, UYX, U44) (EXC JF4) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897430 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897430 OR 13781052) (FOR 2ND DES SEE 22924076) |
N (CJ4, C99, JF4, LHD, UPH, UPJ, UXY, UYU, UYW, UYX, U44) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897439 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897439 OR 13781061) (FOR 2ND DES SEE 22924100) |
N (CJ2, C99, LHD, UPH, UPJ, UZZ) (EXC JF4) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897440 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897440 OR 13781062) (FOR 2ND DES SEE 22924101) |
N (CJ2, C99, JF4, LHD, UPH, UPJ, UZZ) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897441 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
N (CJ4, C99, LHD, UPH, UPJ, UZZ) (EXC JF4) (EXPORT) |
2012-2012 |
01 |
| 001 |
20897442 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 20897442 OR 13781064) (FOR 2ND DES SEE 22924103) |
N (CJ4, C99, JF4, LHD, UPH, UPJ, UZZ) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22794137 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22794137 OR 13863015) (FOR 2ND DES SEE 22924175) |
N (CJ2, C99, JF4, LHD, UE1, UYF) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22794138 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22794138 OR 13863016) (FOR 2ND DES SEE 22924176) |
N (CJ2, C99, JF4, LHD, UE1, UYT) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22794140 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22794140 OR 13863017) (FOR 2ND DES SEE 22924177) |
N (CJ4, C99, JF4, LHD, UE1, UYT) (1ST DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924074 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924074 OR 13937998) (FOR 1ST DES SEE 20897428) |
NG (CJ2, C99, JF4, LHD, UPH, UPJ, UXY, UYU, UYW, UYX, U44) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924076 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924076 OR 13938000) (FOR 1ST DES SEE 20897430) |
NG (CJ4, C99, JF4, LHD, UPH, UPJ, UXY, UYU, UYW, UYX, U44) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924101 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924101 OR 13938009) (FOR 1ST DES SEE 20897440) |
NG (CJ2, C99, JF4, LHD, UPH, UPJ, UZZ) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924103 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924103 OR 13938011) (FOR 1ST DES SEE 20897442) |
NG (CJ4, C99, JF4, LHD, UPH, UPJ, UZZ) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924175 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924175 OR 13938033) (FOR 1ST DES SEE 22794137) |
NG (CJ2, C99, JF4, LHD, UE1, UYF) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924176 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924176 OR 13938034) (FOR 1ST DES SEE 22794138) |
NG (CJ2, C99, JF4, LHD, UE1, UYT) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924177 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) (LABELED 22924177 OR 13938035) (FOR 1ST DES SEE 22794140) |
NG (CJ4, C99, JF4, LHD, UE1, UYT) (2ND DES) (EXPORT) |
2012-2012 |
01 |
| 001 |
22924181 |
HARNESS, I/P WRG (INCLS 2, 7-11, 13, 14, 16) |
NG (CJ2, C99, LHD, UE1, UYF) (EXC JF4) (EXPORT) |
2012-2012 |
01 |
| 002 |
20811268 |
CABLE, DIGITAL VIDEO ANT (I/P) (PART OF 1) |
N |
2011-2012 |
01 |
| 003 |
22783803 |
HARNESS, FRT VIEW CAMERA MDL RR VIEW MIR WRG |
N (CV5) (EXPORT) |
2012-2012 |
01 |
| 004 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (I/P WRG HARN GND) |
|
2011-2013 |
02 |
| 005 |
11609767 |
NUT, HFH, M6X1, 11MM THK, 14 OD, 8 STL, GMW4700 (ZN-NI). (RDO ANT COIL) |
|
2011-2013 |
AR |
| 006 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (I/P WRG HARN BRKT) |
|
2011-2013 |
03 |
| 007 |
19118738 |
CABLE, AUDIO VIDEO MDL (I/P) (PART OF 1) (9.675) (ACDelco #19118738) |
N |
2011-2012 |
01 |
| 007 |
19118740 |
CABLE, USB DATA (PART OF 1) |
N (CJ2, CJ4, UXY, UYS, UYU, UYE, UYX, U44) |
2012-2012 |
01 |
| 009 |
|
COVER, FUSE BLK (PART OF 1, 14) |
|
2011-2013 |
|
| 010 |
13500587 |
RELAY, MULTIUSE (PART OF 1) (PART OF IP WRG HARNESS) (2.485) |
N (CJ2, CJ4) |
2011-2012 |
01 |
| 010 |
19118955 |
RELAY, I/P WRG HARN (PART OF 1) (ISO MICRO LATCHING RELAY, GREEN) |
N |
2011-2013 |
01 |
| 010 |
19116057 |
RELAY, MULTIUSE (PART OF 1) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (ACDelco #D1786C) |
N |
2011-2013 |
01 |
| 011 |
|
FUSE, 5 A (PART OF 1) |
|
2011-2013 |
|
| 011 |
|
FUSE, MINI 7.5 A (PART OF 1) |
|
2011-2013 |
|
| 011 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 1) |
|
2011-2013 |
01 |
| 011 |
12191645 |
FUSE, 2A, MINI, GRAY (PART OF 1) |
|
2011-2013 |
01 |
| 011 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 1) (ACDelco #ATM15-25) |
|
2011-2013 |
01 |
| 011 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 1) (ACDelco #ATM20-25) |
|
2011-2013 |
01 |
| 011 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 1) (ACDelco #ATM25-25) |
|
2011-2013 |
01 |
| 011 |
|
FUSE, MINI 30 A (PART OF 1) |
|
2011-2013 |
|
| 012 |
25886853 |
BRACKET, I/P WRG HARN FUSE BLK |
N |
2011-2012 |
01 |
| 013 |
|
FUSE, A/C CMPR (PART OF 1) |
|
2011-2013 |
|
| 013 |
|
FUSE, ECM WRG HARN (PART OF 1) |
|
2011-2013 |
|
| 015 |
|
FUSE, I/P WRG HARN FUSE BLK |
|
2011-2013 |
|
| 016 |
|
COVER, FUSE BLK (PART OF 1) |
|
2011-2013 |
|
