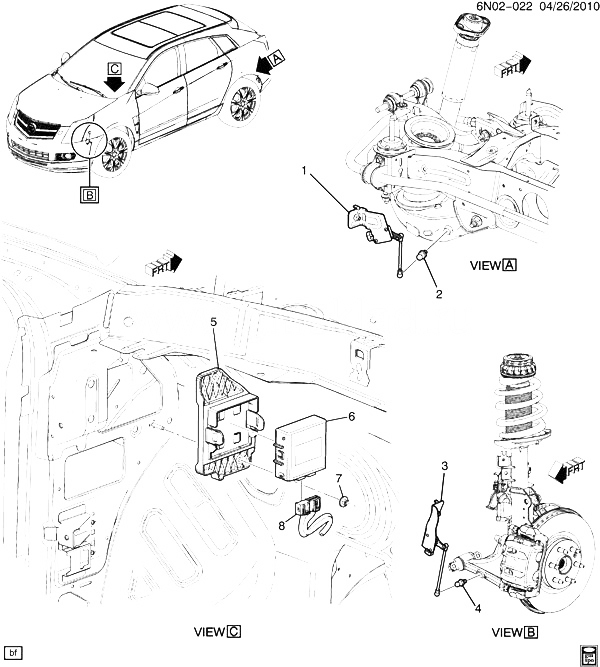

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20844458 |
SENSOR, HDLP LVLG RR SUSP HEIGHT (USE ON VEH PRIOR TO 2/6/12) (FOR 2ND DES SEE 22759606) |
N (TT6, TT7, TT8) (1ST DES) |
2012-2012 |
01 |
| 001 |
22759606 |
SENSOR, HDLP LVLG RR SUSP HEIGHT (USE ON VEH ON AND AFTER 2/6/12) (FOR 1ST DES SEE 20844458) |
N (JJK, TT6, TT7, TT8) (2ND DES) |
2012-2012 |
01 |
| 002 |
10271003 |
STUD, HDLP LVLG RR SUSP HEIGHT SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) (7.477) |
N (TT6, TT7, TT8) |
2012-2013 |
01 |
| 003 |
15872181 |
SENSOR, HDLP LVLG FRT SUSP HEIGHT (W/BRKT) (MATING CONN W/LEADS USE 19149288) (USE ON VEH PRIOR TO 2/6/12) (FOR 2ND DES SEE 22759605) |
N (TT6, TT7, TT8) (1ST DES) |
2012-2012 |
01 |
| 003 |
22759605 |
SENSOR, HDLP LVLG FRT SUSP HEIGHT (W/BRKT) (USE ON VEH ON AND AFTER 2/6/12) (FOR 1ST DES SEE 15872181) |
N (TT6, TT7, TT8) (2ND DES) |
2012-2012 |
01 |
| 004 |
10271003 |
STUD, HDLP LVLG FRT SUSP HEIGHT SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) (7.477) |
N (TT6, TT7, TT8) |
2012-2013 |
01 |
| 005 |
25774881 |
BRACKET, HDLP CONT MDL (*KIT1) |
N (TT6, TT7, TT8) |
2011-2013 |
01 |
| 006 |
20836655 |
MODULE, HDLP CONT (LESS BRACKET) (*KIT1) |
N (TT6, TT7, TT8) |
2011-2013 |
01 |
| 007 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HDLP CONT MDL) |
|
2010-2013 |
02 |
| 008 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| K01 |
20836654 |
MODULE, HDLP CONT (W/ HDLP LVLG RR SUSP HEIGHT SEN) (INCLS 5, 6) (INCLS BRACKET) |
N (TT6, TT7, TT8) |
2011-2013 |
01 |
