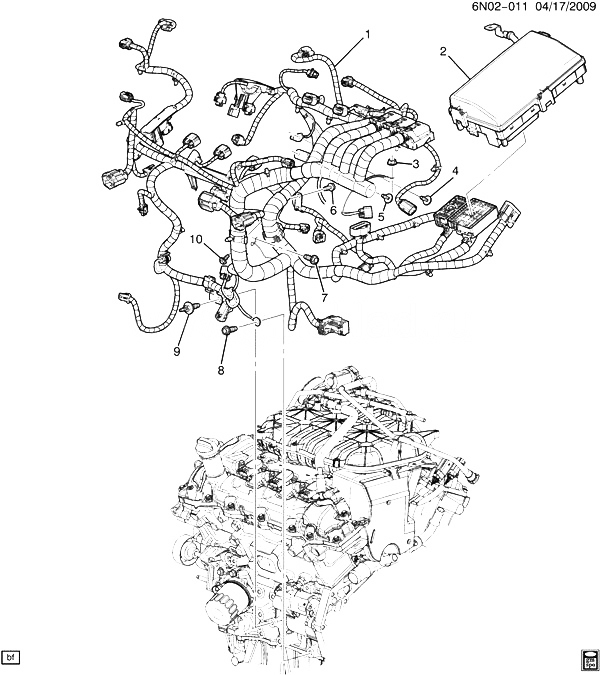

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20896237 |
HARNESS, ENG WRG (LABELED 20896237 OR 13784015) (FOR 2ND DES SEE 22917936) |
NG (LFW, LFX) (1ST DES) |
2012-2012 |
01 |
| 001 |
22917936 |
HARNESS, ENG WRG (NOT LABELED 20896237 OR 13784015) (FOR 1ST DES SEE 20896237) |
NG (LFW, LFX) (2ND DES) |
2012-2012 |
01 |
| 002 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 RELAYS/ENGINE COMPARTMENT FOR DETAIELD ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 003 |
11609716 |
NUT, HFH, M6X1X5.85, 14.2 OD, 9 STL, GMW3200 (ENG WRG HARN BAT LEAD) |
|
2012-2013 |
01 |
| 004 |
11609669 |
BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN GND) |
|
2012-2013 |
01 |
| 005 |
11609669 |
BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN BRKT) |
|
2012-2013 |
01 |
| 006 |
11588564 |
BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN BRKT) |
|
2012-2013 |
01 |
| 007 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN ECM GND) |
|
2012-2013 |
01 |
| 008 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN GND) |
|
2012-2013 |
01 |
| 009 |
11570985 |
BOLT, ENG WRG HARN (HEX W/CON WA, M10X1.5X35, M6X1X16, 28 OD, 10.9, GMW3200) |
N |
2012-2013 |
01 |
| 010 |
11609669 |
BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN CLIP BRKT) |
|
2012-2013 |
01 |
