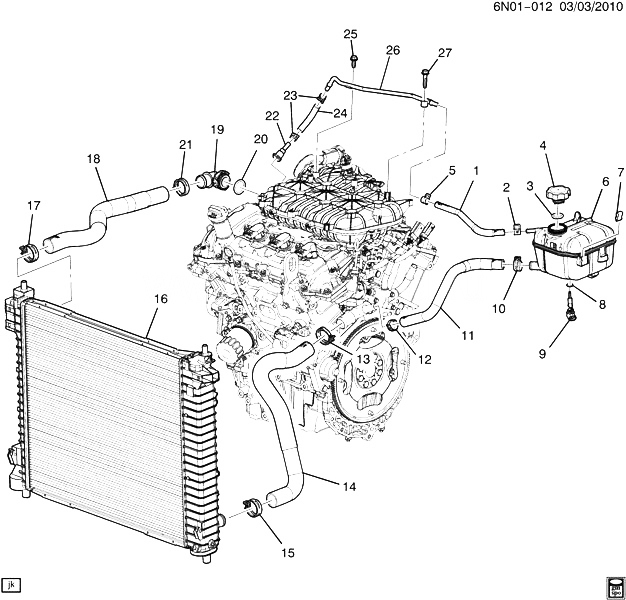

(6N01-012) 2012-2013 N ШЛАНГИ И ТРУБКИ РАДИАТОРА (LFW/3.0-5,LFX/3.6-3) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20795777 HOSE, RAD SURGE TK INL N 2012-2013 01
002 11571098 CLAMP, SPRINGBAND, 14MM NOMINAL DIA, 15MM WIDTH, STL PER GM6298M, GMW140 (RAD SURGE TK INL HOSE) 2012-2013 01
003 SEAL, RAD SURGE TK CAP (PART OF 4) 2012-2013
004 13502353 CAP, RAD SURGE TK (INCLS 3) N 2012-2013 01
005 11570614 CLAMP, SPRINGBAND, 15 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK INL HOSE) 2012-2013 01
006 22917996 TANK, RAD SURGE (W/O SENSOR) (ACDelco #22917996) N (LFW, LFX) 2012-2013 01
007 90233545 CLIP, RAD SURGE TK N 2012-2013 01
008 SEAL, ENG COOL LVL IND MDL (PART OF 9) 2012-2013
009 13271444 MODULE, ENG COOL LVL IND (INCLS 8) (ACDelco #13271444) N (LFW, LFX, UKD) (EXPORT) 2012-2013 01
010 90572594 CLAMP, RAD SURGE TK OTLT HOSE (GRAY) (27 NOM DIA, 12 WIDTH) (SPRINGBAND) (8.846) N 2012-2013 02
011 20795780 HOSE, RAD SURGE TK ENG N 2012-2013 01
012 11571143 CLAMP, SPRINGBAND, 26 NOMINAL DIA, 12 THK, STL PER GM6298M, GMW14083. (RAD SURGE TK OTLT HOSE) 2012-2013 01
013 11516234 CLAMP, HOSE, SPRING BAND TYPE A, CLOSED DIA 37.2, FULL OPEN DIA 44.5-45.5 (RAD OTLT HOSE) 2012-2013 01
014 19257724 HOSE, RAD OTLT N (LFW, LFX) 2012-2013 01
015 11516234 CLAMP, HOSE, SPRING BAND TYPE A, CLOSED DIA 37.2, FULL OPEN DIA 44.5-45.5 (RAD OTLT HOSE) 2012-2013 01
016 20926497 RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #21773) N 2012-2013 01
017 11516234 CLAMP, HOSE, SPRING BAND TYPE A, CLOSED DIA 37.2, FULL OPEN DIA 44.5-45.5 (RAD INL HOSE) 2012-2013 01
018 20795716 HOSE, RAD INL N (LFW, LFX) 2012-2013 01
019 20847910 CONNECTOR, RAD INL HOSE N (LFW, LFX) 2012-2013 01
020 20795717 SEAL, RAD INL PIPE (O RING) N (LFW, LFX) 2012-2013 01
021 11516234 CLAMP, HOSE, SPRING BAND TYPE A, CLOSED DIA 37.2, FULL OPEN DIA 44.5-45.5 (RAD INL HOSE) 2012-2013 01
022 12637187 FITTING, ENG COOL AIR BL PIPE (PART OF 26) N (LFW, LFX) 2012-2013 01
023 90572587 CLAMP, ENG COOL AIR BL HOSE (PART OF 24, 26) (D=15) (1.240) N (LFW, LFX) 2012-2013 02
024 12637185 HOSE, ENG COOL AIR BL (PART OF 26) (INCLS 23) N (LFW, LFX) 2012-2013 01
025 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (ENG COOL AIR BL PIPE) 2012-2013 01
026 12637183 PIPE, ENG COOL AIR BL (INCLS 22-24) N (LFW, LFX) 2012-2013 01
027 11588715 BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (ENG COOL AIR BL PIPE) 2012-2013 01
