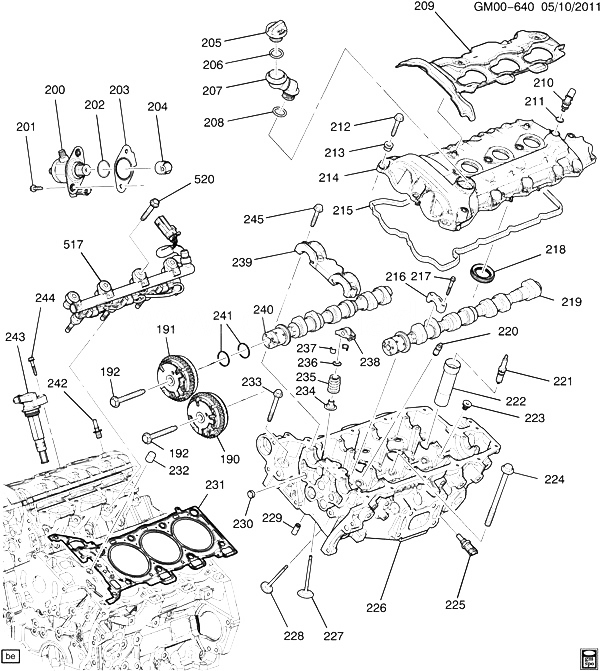

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 190 |
12614464 |
ACTUATOR, CM/SHF POSN (EXH) |
N (LFW, LFX) |
2012-2012 |
02 |
| 191 |
12626160 |
ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) |
N (LFW) |
2012-2012 |
01 |
| 191 |
12626161 |
ACTUATOR, CM/SHF POSN (INT) |
N (LFW) |
2012-2012 |
01 |
| 192 |
11588279 |
BOLT, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN) |
|
2012-2012 |
04 |
| 200 |
12641740 |
PUMP, FUEL (INCLS 201-203) (HIGH PRESSURE) (ACDelco #43519) |
N |
2012-2012 |
01 |
| 201 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 200) |
|
2012-2012 |
02 |
| 202 |
12602379 |
SEAL, F/PMP HSG (O RING) (PART OF 200) |
N |
2012-2012 |
01 |
| 203 |
12633917 |
GASKET, F/PMP BRKT (PART OF 200) |
N (LFW, LFX, MH2, MH4) |
2012-2012 |
01 |
| 203 |
12595951 |
GASKET, F/PMP BRKT (PART OF 200) |
N |
2012-2012 |
01 |
| 204 |
12590679 |
FOLLOWER, VLV LFTR (PART OF 226) (FUEL PUMP) |
N (LFW, LFX) |
2012-2012 |
01 |
| 205 |
12593353 |
CAP, OIL FIL (PART OF 207) (INCLS 206) (SAE 5W30) (ACDelco #FC220) |
N (LFW, LFX) |
2012-2012 |
01 |
| 206 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 205, 207) (27.94MM I.D.) (SIZE #320) |
N (LFX, LFW) |
2012-2012 |
01 |
| 207 |
12601942 |
TUBE, OIL FIL (INCLS 205, 206, 208) |
N (LFW, LFX) |
2012-2012 |
01 |
| 208 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 207) (27.94MM I.D.) (SIZE #320) |
N (LFX, LFW) |
2012-2012 |
01 |
| 209 |
12601744 |
INSULATOR, CM/SHF HSG CVR (0.413) |
N (LFW, LFX) |
2012-2012 |
01 |
| 209 |
12601745 |
INSULATOR, CM/SHF HSG CVR |
N (LFW, LFX) |
2012-2012 |
01 |
| 210 |
12578316 |
FITTING, PCV (INCLS 211) (PART OF 214) |
N (LFW, LFX) |
2012-2012 |
01 |
| 211 |
|
SEAL, PCV HOSE FTG (O RING) (PART OF 210, 214) |
|
2012-2012 |
|
| 212 |
11570020 |
BOLT, CM/SHF CVR (INCLS 213) (PART OF 214) |
N (LFW, LFX) |
2012-2012 |
AR |
| 213 |
12595122 |
INSULATOR, CM/SHF CVR BOLT (PART OF 212, 214) (*KIT1) |
N (LFW, LFX) |
2012-2012 |
26 |
| 214 |
12640147 |
COVER, CM/SHF (INCLS 210-213, 215, 218) (USE T/W NEW FRESH AIR PCV TUBE) |
N (LFW, LFX) |
2012-2012 |
01 |
| 214 |
12641260 |
COVER, CM/SHF (INCLS 210-213, 215, 218, 242) |
N (LFW, LFX) |
2012-2012 |
01 |
| 215 |
12607401 |
SEAL, CM/SHF CVR (PART OF 214) (*KIT1) |
N (LFW) |
2012-2012 |
01 |
| 215 |
12641261 |
SEAL, CM/SHF CVR (PART OF 214) (*KIT1) |
N (LFW, LFX) |
2012-2012 |
01 |
| 216 |
|
CAP, CM/SHF BRG (PART OF 226) |
|
2012-2012 |
|
| 217 |
11518856 |
BOLT, HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (PART OF 226) |
|
2012-2012 |
32 |
| 218 |
12607600 |
SEAL, SPLG SHLD (PART OF 214) |
N (LFW, LFX) |
2012-2012 |
06 |
| 219 |
12632270 |
CAMSHAFT, EXH (PART OF 226) (INCLS 241) |
N (LFW, LFX) |
2012-2012 |
01 |
| 219 |
12632274 |
CAMSHAFT, EXH (PART OF 226) (INCLS 241) |
N (LFW, LFX) |
2012-2012 |
01 |
| 220 |
12572638 |
ADJUSTER, HYD VLV LASH (PART OF 226) (ACDelco #HL129) |
N (LFW, LFX) |
2012-2012 |
24 |
| 221 |
12622561 |
SPARK PLUG, (ACDelco #41-109) (IRIDIUM) |
N (LFW, LFX) |
2012-2012 |
06 |
| 222 |
|
SLEEVE, SPLG WIRE (PART OF 226) |
|
2012-2012 |
|
| 223 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (PART OF 226) (M20X1.5X30.5) (1.531) |
N (LFW, LFX) |
2012-2012 |
02 |
| 224 |
11518863 |
BOLT, CYL HD (M11X2X152) |
N (LFW, LFX) |
2012-2012 |
16 |
| 225 |
12611420 |
SENSOR, ENG COOL TEMP (ACDelco #213-4232) |
N (LFW, LFX) |
2012-2012 |
01 |
| 225 |
12611420 |
SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-4232) |
N (LFW, LFX) |
2012-2012 |
01 |
| 226 |
12635547 |
HEAD, CYL (W/VLVS) (INCLS 204, 216, 217, 219, 220, 222, 223, 227-230, 235-241) |
N (LFW) |
2012-2012 |
01 |
| 226 |
12635548 |
HEAD, CYL (W/VLVS) (INCLS 204, 216, 217, 219, 220, 222, 223, 227-230, 235-241) (T/W INT CAM ACTUATOR 12626160 EXH ACTUATOR 12614464) |
N (LFW) |
2012-2012 |
01 |
| 227 |
12620501 |
VALVE, INT (PART OF 226) (STD) |
N (LFW) |
2012-2012 |
12 |
| 228 |
12621548 |
VALVE, EXH (PART OF 226) |
N (LFW, LFX) |
2012-2012 |
12 |
| 229 |
12580965 |
VALVE, ENG OIL MANIF CHK (PART OF 226) |
N (LFW, LFX) |
2012-2012 |
04 |
| 230 |
11562127 |
PLUG, CYL HD OIL GAL (PART OF 226) (CUP-14.22 OD, 6.6 THK, 304SS) |
N (LFW, LFX) |
2012-2012 |
02 |
| 231 |
12634480 |
GASKET, CYL HD (*KIT1) |
N (LFW) |
2012-2012 |
01 |
| 231 |
12634481 |
GASKET, CYL HD (*KIT1) |
N (LFW) |
2012-2012 |
01 |
| 232 |
12570326 |
PIN, CYL HD LOC |
N (LFW, LFX) |
2012-2012 |
04 |
| 233 |
11588734 |
BOLT, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (CYL HD) |
|
2012-2012 |
03 |
| 234 |
19207664 |
SEAL KIT, VLV STEM OIL (12 SEALS PER PACKAGE) |
N (LFW, LFX) |
2012-2012 |
02 |
| 235 |
12616671 |
SPRING, VLV (PART OF 226) |
N (LFW, LFX) |
2012-2012 |
24 |
| 236 |
12575196 |
RETAINER, VLV SPR (PART OF 226) |
N (LFW, LFX) |
2012-2012 |
24 |
| 237 |
12575197 |
KEY, VLV STEM (PART OF 226) |
N (LFW, LFX) |
2012-2012 |
48 |
| 237 |
12575197 |
KEY, VLV STEM (PART OF 226) |
N (LFW, LAU) |
2012-2012 |
48 |
| 238 |
24100294 |
ARM, VLV RKR (PART OF 226) |
N (LFW, LFX) |
2012-2012 |
24 |
| 239 |
|
CAP, CM/SHF BRG (PART OF 226) |
|
2012-2012 |
|
| 240 |
12638173 |
CAMSHAFT, INT (PART OF 226) (INCLS 241) |
N (LFW) |
2012-2012 |
01 |
| 240 |
12638172 |
CAMSHAFT, INT (PART OF 226) (INCLS 241) |
N (LFW) |
2012-2012 |
01 |
| 241 |
12574477 |
RING, CM/SHF SPKT OIL SEAL (PART OF 219, 226, 240) |
N (LFW, LFX) |
2012-2012 |
04 |
| 242 |
12583384 |
FITTING, PCV (PART OF 214) |
N (LFW, LFX) |
2012-2012 |
01 |
| 243 |
12632479 |
COIL, IGN (INCLS 244) (ACDelco #D515C) |
N (LFW, LFX) |
2012-2012 |
06 |
| 244 |
11588715 |
BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (PART OF 243) |
|
2012-2012 |
06 |
| 245 |
11518856 |
BOLT, HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (PCV HOSE FTG (O RING)) |
|
2012-2012 |
32 |
| 517 |
|
RAIL, DIR F/INJN FUEL (SEE GROUP 03.000 FUEL RAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2012 |
|
| 520 |
11588729 |
BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (F/INJN FUEL RL) |
|
2012-2012 |
04 |
| K01 |
12646460 |
GASKET KIT, CYL HD (INCLS 213, 215, 231) |
N (LFW) |
2012-2012 |
01 |
