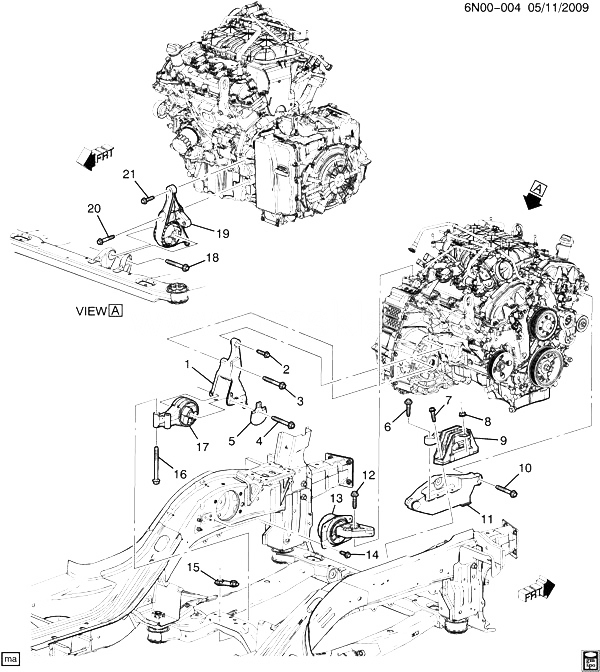

(6N00-004) 2012 N КРЕПЛЕНИЕ ДВИГАТЕЛЯ И КОРОБКИ ПЕРЕДАЧ (LFW/3.0-5,LFX/3.6-3, AUTOMATIC MH2) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 13228294 BRACKET, TRANS RR MT N (LFW, LFX, MH2) 2012-2012 01
002 11589276 BOLT, HFH, M12X1.75X55, THD 41, 26.6 OD, 10.9, GMW3359 (TRANS RR MT BRKT) 2012-2013 02
003 11589282 BOLT, HFH, M12X1.75X115.9, 44.75 THD, 26.6 OD, 10.9STL, GMW3359, REDUCED BODY (TRANS RR MT BRKT) (0.029) 2012-2013 01
004 11589283 BOLT, HFH, M12X1.75X125.9, 45 THD, 26.6 OD, 10.9, GMW3359, M-PT, REDUCED BO (TRANS RR MT) 2012-2013 01
005 09156952 SHIELD, ENG MT HT (4.081) N (MH2) 2012-2012 01
006 11570514 BOLT, ENG MT (AT ENG) (M10X1.5X60) N 2012-2013 03
007 11571051 BOLT, HFH, M10X1.5X45, 26 THD, 19 OD, 10.9, GMW3359 M-PT. (ENG MT) 2012-2013 02
008 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (ENG MT) (ACDelco #11517996) 2012-2013 01
009 25778691 MOUNT, ENG N (LFW, LFX, MH2) 2012-2012 01
010 11589280 BOLT, HFH, M12X1.75X95.9, 44.75 THD, 26.6 OD, 10.9, GMW3359, MACH, MAT POINT (ENG MT BRKT (AT ENG)) 2012-2013 03
011 13227756 BRACKET, ENG MT N (LFW, LFX) 2012-2013 01
012 11570514 BOLT, TRANS MT (AT TRANS) (M10X1.5X60) (0.002) N 2012-2013 03
013 20847581 MOUNT, TRANS (0.027) N (LFW, LFX, MH2) 2012-2012 01
014 11588723 BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TRANS MT) 2012-2013 04
015 11610557 NUT, TRANS RR MT N 2012-2013 01
016 11589285 BOLT, HFH, M12X1.75X145.9, 44 THD, 26.6 OD, 10.9, GMW3359, REDUCED (TRANS RR MT) 2012-2013 02
017 13228303 MOUNT, TRANS RR N (MH2) 2012-2012 01
018 11569601 BOLT, TRANS FRT MT (M12X1.75X108.4) (7.014) N 2012-2013 01
019 22801992 MOUNT, TRANS FRT N (MH2, MH4) 2012-2012 01
020 11518633 BOLT, HFH, M10X1.5X75, 26 THD, 22.3 OD, 10.9, GMW3359, MAT- POINT. (TRANS FRT MT) 2012-2013 01
021 11515769 BOLT, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANS FRT MT) 2012-2013 02
