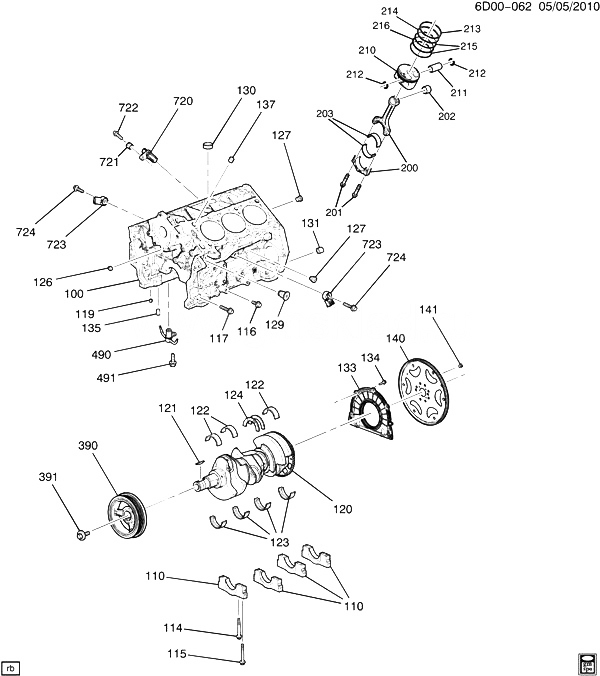

(6D00-062) 2012-2013 N ДВИГАТЕЛЬ В СБОРЕ-3.0L V6 PART 1 БЛОК ЦИЛИНДРОВ И ВНУТРЕННИЕ ДЕТАЛИ (LFW/3.0-5) CADILLAC - SRX 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG (MCHG) 2012-2013
110 CAP, CR/SHF BRG 2012-2013
114 12560272 BOLT, CR/SHF BRG CAP (M10X2X102.5, 24.5) N (LFW, LFX) 2012-2013 08
115 11518861 BOLT, HFH, W/REDCD BODY, M8X1.25X90, 26 THD, 18 O.D., 10.9, GM4277M (CR/SHF BRG CAP) 2012-2013 08
116 11609410 BOLT, HFH, M8X1.25X25, 10.9, GMW3179 (CR/SHF BRG CAP) (0.056) 2012-2013 04
117 11589000 BOLT, HFH, M8X1.25X50, 24 THD, 18 OD, 10.9, GMW3359, RED BODY, W/ADH (CR/SHF BRG CAP) 2012-2013 04
119 12557520 PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) N (LFW, LFX) 2012-2013 01
120 12616835 CRANKSHAFT, N (LFW) 2012-2013 01
121 12601937 KEY, CR/SHF BALR N (LFW) 2012-2013 01
122 BEARING, CR/SHF UPR (*KIT1) 2012-2013
123 BEARING, CR/SHF LWR (*KIT1, KIT2) 2012-2013
124 BEARING, CR/SHF THR (*KIT2) 2012-2013
126 11562127 PLUG, ENG BLK OIL GAL (CUP-14.22 OD, 6.6 THK, 304SS) (0.253) N (LFW, LFX) 2012-2013 02
127 11561583 PLUG, ENG BLK OIL GAL (M14X1.5X16, 22 OD) (0.253) N (LFW, LFX) 2012-2013 04
129 11561751 PLUG, ENG BLK OIL GAL (M20X1.5X30.5) N (LFW, LFX) 2012-2013 01
130 11569584 PLUG, ENG BLK CORE HOLE (CUP DIA 34.4MM) N (LFW, LFX) 2012-2013 02
131 12597210 PIN, TRANS LOC N 2012-2013 02
133 12637710 SEAL, CR/SHF RR OIL (CLEAN ALL SEALING SURFACES WITH BRAKE CLEANER, AND DRY, TO ENSURE BONDING W/SEALANT) N (LFW, LFX) 2012-2013 01
134 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF RR OIL SEAL HSG) 2012-2013 05
135 22531637 PIN, OIL PAN LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) NG (LFW, LFX) 2012-2013 02
137 12570326 PIN, CYL HD LOC N (LFW, LFX) 2012-2013 04
140 12597026 PLATE, A/TRNS FLEX N (LFW) 2012-2013 01
141 11518862 BOLT, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT) 2012-2013 08
200 12609597 ROD, CONN (INCLS 201, 202) N (LFW) 2012-2013 06
201 11519680 BOLT, CONN ROD (PART OF 200) (M9X1X53) N (LFW) 2012-2013 12
202 BUSHING, CONN ROD (PART OF 200) 2012-2013
203 12643667 BEARING KIT, CONN ROD N (LFW) (EXC CV2) 2012-2013 06
203 19301183 BEARING KIT, CONN ROD N (LFW, MH2, MH4, CV2) 2012-2012 06
210 12631195 PISTON, (W/PIN) (INCLS 211, 212) (STD) N (LFW) (EXC CV2) 2012-2013 03
210 12631196 PISTON, (W/PIN) (INCLS 211, 212) (STD) N (LFW) (EXC CV2) 2012-2013 03
211 PIN, PSTN (PART OF 210) 2012-2013
212 12566186 RETAINER, PSTN PIN (PART OF 210) (MAHLE PISTONS) NG (LFW) (EXC CV2) 2012-2013 02
212 19300907 RETAINER, PSTN PIN (PART OF 210) NG (LFW, CV2) 2012-2013 01
213 RING, PSTN CMPRN UPR (*KIT3) 2012-2013
214 RING, PSTN CMPRN LWR (*KIT3) 2012-2013
215 RAIL, PSTN OIL RING (*KIT3) 2012-2013
216 SPACER, PSTN OIL RING RL (*KIT3) 2012-2013
390 12626355 BALANCER, CR/SHF (SINGLE BELT W/KEYWAY) (ACDelco #12626355) N (LFW, LFX) 2012-2013 01
391 11569873 BOLT, CR/SHF BALR (M14X1.5X48.4) N (LFW, LFX) 2012-2013 01
490 12640455 NOZZLE, PSTN OIL N (LFX, LFW) 2012-2013 03
491 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PSTN OIL NOZ) 2012-2013 03
720 12615626 SENSOR, CR/SHF POSN (INCLS 721, 722) (ACDelco #213-4573) N (LFW, LFX) 2012-2013 01
721 11518792 RETAINER, CR/SHF POSN SEN BOLT (PART OF 720) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) N (LFW, LFX) 2012-2013 01
722 11562426 BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 720) 2012-2013 01
723 12605738 SENSOR, KNOCK (INCLS 724) (MATING CONN W/LEADS USE 88953268) (ACDelco #213-4404) N (LFW, LFX) 2012-2013 02
724 11519980 BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 723) 2012-2013 01
K01 12643670 BEARING KIT, CR/SHF (INCLS 122, 123) NG (LFW, LFX) 2012-2013 01
K02 12643668 BEARING KIT, CR/SHF THR (INCLS 123, 124) NG (LFW) 2012-2013 01
K03 12631194 RING KIT, PSTN (INCLS 213-216) N (LFW) (EXC CV2) 2012-2013 01
K03 19300906 RING KIT, PSTN (INCLS 213-216) NG26 (LFW, CV2, MH2, MH4) 2012-2012 06
