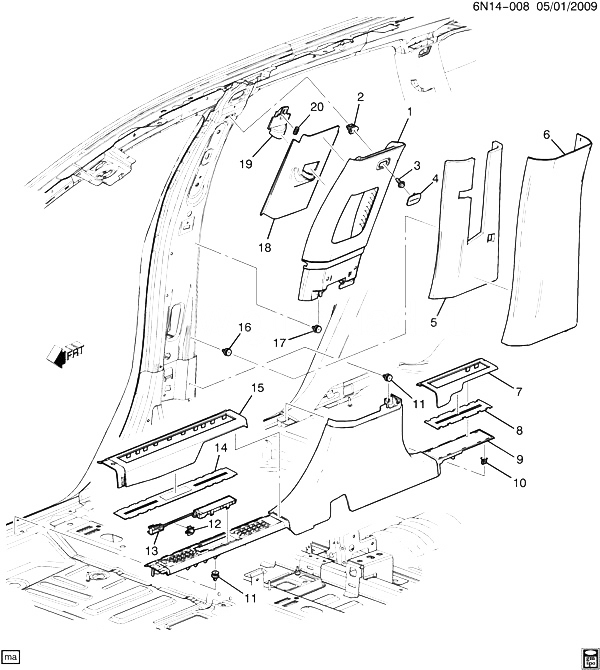

(6N14-008) 2010-2013 N TRIM/CENTER PILLAR CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20953432 PANEL, CTR PLR UPR TR (INCLS 2-4, 17-20) (TITANIUM) N (4AA, 4AJ) 2010-2012 01
001 22823093 PANEL, CTR PLR UPR TR (INCLS 2-4, 17-20) (SHALE) N (4AF, 4A5) 2011-2013 01
001 22823090 PANEL, CTR PLR UPR TR (INCLS 2-4, 17-20) (SHALE) N (4AF, 4A5) 2010-2013 01
001 22823092 PANEL, CTR PLR UPR TR (INCLS 2-4, 17-20) (TITANIUM) N (4AA, 4AJ) 2010-2012 01
002 11610205 RETAINER, CTR PLR UPR T/PNL (PART OF 1) (23X14.5X22.7) (SCREW ATTACHMENT) (10.056) N 2010-2013 02
003 11609465 BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 1) (8.977) 2010-2013 02
004 20823895 CAP, CTR PLR UPR T/PNL BOLT (PART OF 1) (TITANIUM) N (4AA, 4AJ) 2010-2012 02
004 20823898 CAP, CTR PLR UPR T/PNL BOLT (PART OF 1) (SHALE) NG (4AF, 4A5) 2010-2013 02
004 20823902 CAP, CTR PLR UPR T/PNL BOLT (PART OF 1) (TITANIUM) N (4AA, 4AJ) 2010-2012 01
004 20823905 CAP, CTR PLR UPR T/PNL BOLT (PART OF 1) (SHALE) NG (4AF, 4A5) 2010-2013 01
005 INSULATOR, CTR PLR LWR T/PNL (PART OF 6) 2010-2013
006 25943320 PANEL, CTR PLR LWR TR (INCLS 5, 16) (BLACK) N (4AA) 2010-2012 01
006 25943321 PANEL, CTR PLR LWR TR (INCLS 5, 16) (TITANIUM) N (4AJ) 2010-2012 01
006 25943324 PANEL, CTR PLR LWR TR (INCLS 5, 16) (TITANIUM) N (4AJ) 2010-2012 01
006 22823130 PANEL, CTR PLR LWR TR (INCLS 5, 16) (SHALE) N (4AF, 4A5) 2010-2013 01
006 22823132 PANEL, CTR PLR LWR TR (INCLS 5, 16) (BLACK) N (4AA) 2010-2012 01
006 22823134 PANEL, CTR PLR LWR TR (INCLS 5, 16) (SHALE) N (4AF, 4A5) 2010-2013 01
007 COVER, BODY SI RR T/PNL INS (PART OF 9) 2010-2013
008 INSERT, RR S/D SILL TR PLT (PART OF 9) 2010-2013
009 20993827 PLATE, FRT S/D SILL TR (INCLS 7, 8, 10-15) (TITANIUM) (W/SS ILLUM CADILLAC LOGO SILL PLATES) (14.730) N (TSQ, 4AJ) 2010-2012 01
009 22823113 MOLDING, S/D SILL GARN (INCLS 7, 8, 10-15) (TITANIUM) (14.730) N (TSQ, 4AJ) 2011-2011 01
009 22823114 MOLDING, S/D SILL GARN (INCLS 7, 8, 10-15) (SHALE) (14.730) N (TSQ, 4AF, 4A5) 2011-2011 01
009 22823116 MOLDING, S/D SILL GARN (INCLS 7, 8, 10-15) (BLACK) (14.730) N (TSQ, 4AA) 2011-2011 01
009 22823117 MOLDING, S/D SILL GARN (INCLS 7, 8, 10-15) (TITANIUM) (14.730) N (TSQ, 4AJ) 2011-2011 01
009 22823118 MOLDING, S/D SILL GARN (INCLS 7, 8, 10-15) (SHALE) (14.730) N (TSQ, 4AF, 4A5) 2011-2011 01
009 20993826 MOLDING, S/D SILL GARN (INCLS 7, 8, 10-15) (BLACK) (W/SS ILLUM CADILLAC LOGO SILL PLATES) (14.730) N (TSQ, 4AA) 2011-2011 01
009 20993838 TRIM, CTR PLR LWR (INCLS 7, 8, 10-15) (BLACK) (W/SS ILLUM CADILLAC LOGO SILL PLATES) NG26 (TSQ, 4AA) 2010-2011 01
009 22782187 PLATE, FRT S/D SILL TR (INCLS 7, 8, 10-15) (TITANIUM) (W/SS ILLUM CADILLAC LOGO SILL PLATES) (14.730) NG (TSQ, 4AJ) 2010-2011 01
009 22782188 PLATE, FRT S/D SILL TR (INCLS 7, 8, 10-15) (SHALE) (W/SS ILLUM CADILLAC LOGO SILL PLATES) (14.730) N 2010-2013 01
009 22782176 PLATE, FRT S/D SILL TR (INCLS 7, 8, 10-15) (SHALE) (W/SS ILLUM CADILLAC LOGO SILL PLATES) (14.730) NG26 (4AF, 4A5) 2010-2011 01
010 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 9) 2010-2013 02
011 RETAINER, FRT S/D T/PNL (PART OF 9) 2010-2013
012 CONNECTOR, R/CMPT C/LP CBL (PART OF 9) 2010-2013
013 HOUSING, STEPWELL LP (PART OF 9) 2010-2013
014 INSERT, FRT S/D SILL TR PLT (PART OF 9) 2010-2013
015 COVER, BODY L/PLR T/PNL (PART OF 9) 2010-2013
016 11562568 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE IN 0.8-7.0 THK PNL, GMP.POM.025NATU (PART OF 6) (8.950) 2010-2013 04
017 11562568 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE IN 0.8-7.0 THK PNL, GMP.POM.025NATU (PART OF 1) (8.950) 2010-2013 04
018 20953436 COVER, F/SEAT SHLDR BELT GDE ADJR (PART OF 1) (TITANIUM) N (4AA, 4AJ) 2011-2012 01
018 20953437 COVER, F/SEAT SHLDR BELT GDE ADJR (PART OF 1) (SHALE) N (4AF, 4A5) 2011-2012 01
018 20953439 COVER, F/SEAT SHLDR BELT GDE ADJR (PART OF 1) (TITANIUM) N (4AA, 4AJ) 2011-2013 01
018 20953440 COVER, F/SEAT SHLDR BELT GDE ADJR (PART OF 1) (SHALE) N (4AF, 4A5) 2011-2013 01
019 PUSHBUTTON, D/SEAT BELT GDE ADJR REL (PART OF 1) 2010-2013
019 PUSHBUTTON, P/SEAT SHLDR BELT GDE ADJR REL (PART OF 1) 2010-2013
020 SPRING, D/SEAT SHLDR BELT GDE ADJR (PART OF 1) 2010-2013
020 SPRING, P/SEAT SHLDR BELT GDE ADJR (PART OF 1) 2010-2013
