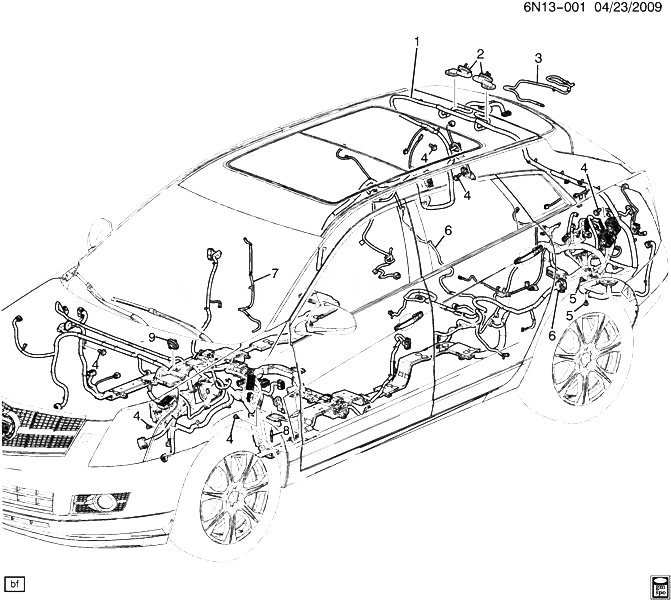

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22785065 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (EXC AAB, F46, KA6, TB5, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785066 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (F46) (EXC AAB, F45, KA6, TB5, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785067 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (KA6) (EXC F46, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785068 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (F46, KA6) (EXC F45, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785073 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (F45, KA6) (EXC T89) |
2011-2011 |
01 |
| 001 |
22785074 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (KA6, TT6) (EXC F46, T89) |
2011-2011 |
01 |
| 001 |
22785078 |
HARNESS, BODY WRG (INCLS 2, 9) (BUILT W/VES CONNECTOR) |
N (AAB) (EXC F46, KA6, TB5, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785079 |
HARNESS, BODY WRG (INCLS 2, 9) (BUILT W/VES CONNECTOR) |
N (TB5) (EXC F46, KA6, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785080 |
HARNESS, BODY WRG (INCLS 2, 9) (BUILT W/VES CONNECTOR) |
N (AAB, F46) (EXC F45, KA6, TB5, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785081 |
HARNESS, BODY WRG (INCLS 2, 9) (BUILT W/VES CONNECTOR) |
N (F46, TB5) (EXC F45, KA6, TT6, T89) |
2011-2011 |
01 |
| 001 |
22785082 |
HARNESS, BODY WRG (INCLS 2, 9) (BUILT W/VES CONNECTOR) |
N (TT6) (EXC F46, KA6, TB5, T89) |
2011-2011 |
01 |
| 001 |
22785083 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (TB5, TT6) (EXC F46, KA6, T89) |
2011-2011 |
01 |
| 001 |
22785084 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (F45) (EXC KA6, TB5, T89) |
2011-2011 |
01 |
| 001 |
22785085 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (F45, TB5) (EXC KA6, T89) |
2011-2011 |
01 |
| 001 |
22785069 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, LHD, T89) (EXC AAB, ATH, F45, TB5, TT6, TT8) (EXPORT) |
2011-2011 |
01 |
| 001 |
22785070 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, AAB, LHD, T89) (EXC ATH, F45, TB5, TT6, TT8) (EXPORT) |
2011-2011 |
01 |
| 001 |
22785072 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, ATH, LHD, T89) (EXC F45, TT6, TT8) (EXPORT) |
2011-2011 |
01 |
| 001 |
22785075 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, F45, LHD, T89) (EXC ATH, TB5) (EXPORT) |
2011-2011 |
01 |
| 001 |
22785076 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, F45, LHD, TB5, T89) (EXC ATH) (EXPORT) |
2011-2011 |
01 |
| 001 |
22785071 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, LHD, TB5, T89) (EXC ATH, F45, TT6, TT8) (EXPORT) |
2011-2011 |
01 |
| 001 |
22785077 |
HARNESS, BODY WRG (INCLS 2, 9) |
N (LF1, ATH, F45, LHD, T89) (EXPORT) |
2011-2011 |
01 |
| 002 |
20810961 |
GROMMET, L/GATE WRG HARN (PART OF 1) |
N |
2010-2013 |
01 |
| 003 |
20930848 |
HOSE, WSWA SOLV CNTNR (RR SPOILER) |
N |
2011-2012 |
01 |
| 004 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) |
|
2010-2013 |
06 |
| 005 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (BODY RR WRG HARN CLIP) |
|
2010-2013 |
02 |
| 006 |
|
HARNESS, CHAS RR WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATE VEIW) |
|
2010-2013 |
|
| 007 |
22806269 |
HOSE, WSWA SOLV CNTNR (REAR JUMPER) |
N |
2010-2012 |
01 |
| 008 |
11609867 |
RIVET, 3/16-0.575, 0.375 OD, SAE1006 STL, GMW3044 (FUEL SDR WRG HARN CONN) |
|
2010-2013 |
02 |
| 009 |
22709699 |
GROMMET, WRG HARN (PART OF 1) (TO I/P) |
N |
2010-2013 |
01 |
