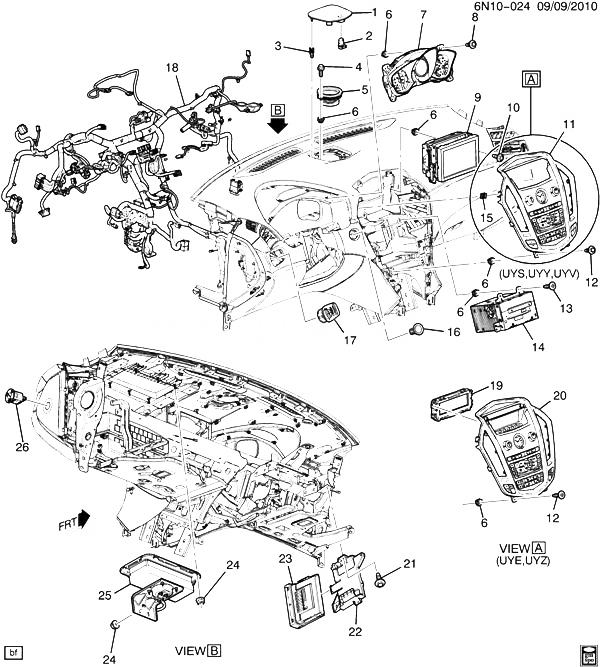

(6N10-024) 2011-2012 N ПРИБОРНАЯ ПАНЕЛЬ PART 3 ELECTRICAL CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25926825 GRILLE, RDO FRT SPKR (INCLS 2, 3) (BLACK) N (4AA, 4AJ, 4A5) 2011-2012 01
001 20900341 GRILLE, RDO FRT SPKR (INCLS 2, 3) (BROWNSTONE) N (4AF) 2011-2012 01
002 13578465 SENSOR, SUN LOAD TEMP DAYTIME RUNNING LP AMB LGT (PART OF 1) (ACDelco #13578465) N 2011-2012 01
003 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 1) 2011-2012 04
004 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT CTR SPKR) 2011-2012 02
005 25840446 SPEAKER, RDO FRT CTR (ACDelco #25840446) N (UQA, UQS) 2011-2012 01
006 11610157 NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P CARR) (10.701) 2011-2012 40
007 20997894 CLUSTER, INST N (LAU, U30) (EXC UC2, U19) 2011-2011 01
007 20997896 CLUSTER, INST (ACDelco #20997896) N (LF1, U30) (EXC UC2, U19) 2011-2011 01
007 20997895 CLUSTER, INST (ACDelco #20997895) N (LAU, UC2, U19, U30) (EXPORT) 2011-2011 01
007 20997897 CLUSTER, INST (ACDelco #20997897) N (LF1, UC2, U19, U30) (EXPORT) 2011-2011 01
008 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (INST CSTR) (9.665) 2011-2012 04
009 DISPLAY, DRVR INFO (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (9.680) 2011-2012
010 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (DRVR INFO DISPLAY) 2011-2012 02
011 CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 15) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (ARGENT) 2011-2012
012 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) 2011-2012 02
013 11609457 SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (RDO) 2011-2012 04
014 RADIO, AM/FM STEREO VIDEO DISC PLYR NAVNMP3HARD DR (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) 2011-2012
015 CLIP, STEREO CLK RDO (PART OF 11, 20) 2011-2012
016 20911718 SWITCH, IGN START (ACDelco #20911718) NG 2011-2012 01
017 20888228 SWITCH, HDLP (ARGENT) N (LHD) (EXC T79, T84, T96) 2011-2012 01
017 20888243 SWITCH, FOG LP HDLP (ARGENT) (ACDelco #20888243) N (LHD, T96) (EXC T79, T84) 2011-2012 01
017 22753504 SWITCH, FOG LP HDLP (ACDelco #22753504) (LABELED 22753504) N (CV5, LHD, T85) (EXPORT) 2011-2012 01
017 20888246 SWITCH, FOG LP HDLP (ARGENT) (ACDelco #20888246) N (LHD, T79, T84, T96) (EXPORT) 2011-2012 01
017 20888247 SWITCH, FOG LP HDLP (ARGENT) N (RHD, T79, T85, T96) (EXPORT) 2011-2011 01
017 20888248 SWITCH, FOG LP HDLP (ARGENT) N (RHD, T79, T96) (EXC T85) (EXPORT) 2011-2011 01
017 20888249 SWITCH, FOG LP HDLP (ARGENT) (ACDelco #20888249) N (LHD, T79, T96) (EXC T84) (EXPORT) 2011-2012 01
017 25893078 SWITCH, FOG LP HDLP (ARGENT) N (RHD, T79, T85, T96) (EXPORT) 2011-2011 01
018 HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2011-2012
019 DISPLAY, DRVR INFO (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) 2011-2012
020 CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 15) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (ARGENT) 2011-2012
021 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (BCM BRKT) 2011-2012 02
022 25824019 BRACKET, BCM N (LHD) 2011-2012 01
023 13501739 MODULE, BODY CONT (SEE GROUP 02.000 MODULE/BODY CONTROL FOR DETAILED ILLUSTRATED VIEW) (2.560) (ACDelco #13501739) N 2011-2011 01
024 11570142 NUT, I/P AIRBAG N 2011-2012 08
025 22814346 AIRBAG, I/P (SEALED CONNECTOR, OVAL SHAPED) (FOR 1ST DES SEE 22790747) N (AY0) (2ND DES) 2011-2011 01
025 22790747 AIRBAG, I/P (UNSEALED CONNECTOR, SQUARE SHAPED) (FOR 2ND DES SEE 22814346) N (AY0) (1ST DES) 2011-2011 01
026 13268602 SWITCH, I/P AIRBAG (BLACK) N (C99) (EXPORT) 2011-2012 01
