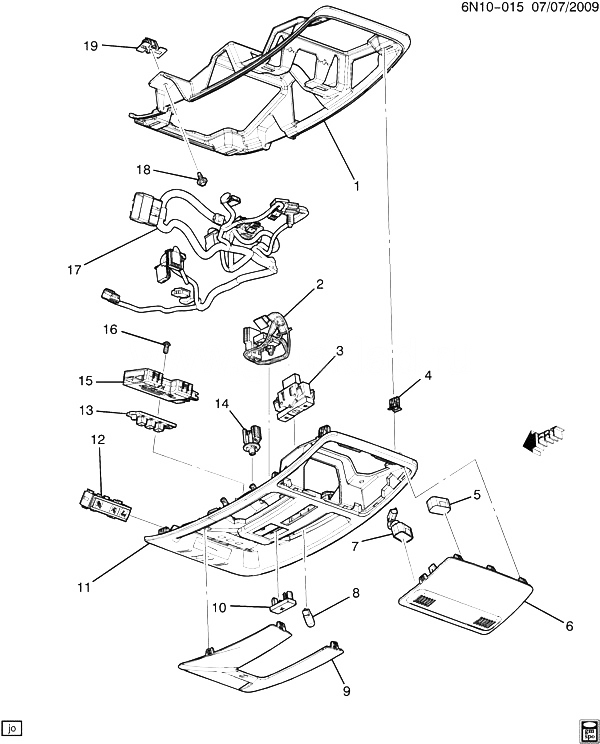

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20889337 |
PLATE, RF CNSL BKG (INCLS 18, 19) |
NG (EXC C3U) |
2010-2011 |
01 |
| 002 |
25964422 |
HARNESS, RDG LP WRG (PART OF 11) |
N |
2010-2011 |
01 |
| 003 |
25964421 |
SWITCH, DM RDG LP (PART OF 11) (ACDelco #25964421) |
N |
2010-2011 |
01 |
| 004 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 11) |
|
2010-2011 |
06 |
| 005 |
25964511 |
PLATE, M/TEL MIC OPG TR (PART OF 11) (BLACK) |
N |
2010-2011 |
01 |
| 006 |
25964503 |
PLATE, RF CNSL OPG TR (PART OF 11) (SHALE) |
NG (4AF, 4A5) |
2010-2011 |
01 |
| 006 |
25964504 |
PLATE, RF CNSL OPG TR (PART OF 11) (TITANIUM) |
NG (4AA, 4AJ) |
2010-2011 |
01 |
| 006 |
25964506 |
PLATE, RF CNSL OPG TR (PART OF 11) (TITANIUM) |
NG (4AA, 4AJ) |
2010-2011 |
01 |
| 006 |
25964505 |
PLATE, RF CNSL OPG TR (PART OF 11) (SHALE) |
NG (4AF, 4A5) |
2010-2011 |
01 |
| 006 |
20920278 |
PLATE, RF CNSL OPG TR (PART OF 11) (TITANIUM) |
NG (4AA, 4AJ) |
2010-2011 |
01 |
| 006 |
20920280 |
PLATE, RF CNSL OPG TR (PART OF 11) (SHALE) |
NG (4AF, 4A5) |
2010-2011 |
01 |
| 007 |
15241529 |
MICROPHONE, MOBILE TEL (PART OF 11) (2-WAY CAVITY) |
N (UE1) |
2010-2011 |
01 |
| 007 |
13242355 |
MICROPHONE, MOBILE TEL (PART OF 11) (3-WAY CAVITY) |
N (UG1, UPH, UYY, U19) (EXPORT) |
2011-2011 |
01 |
| 008 |
01999382 |
BULB, (PART OF 11) (ACDelco #W5WLL) (LONGER LIFE) |
|
2010-2011 |
02 |
| 009 |
25964415 |
LENS, DM LP (PART OF 11) |
N (UG1) |
2010-2011 |
01 |
| 010 |
20817667 |
PUSHBUTTON, RDG LP SW (PART OF 11) (ARGENT) |
N |
2010-2011 |
01 |
| 010 |
20817689 |
PUSHBUTTON, RDG LP SW (PART OF 11) (BLACK) |
N |
2010-2011 |
01 |
| 010 |
20817690 |
PUSHBUTTON, RDG LP SW (PART OF 11) (ARGENT) |
N |
2010-2011 |
01 |
| 010 |
20817691 |
PUSHBUTTON, RDG LP SW (PART OF 11) (BLACK) |
N |
2010-2011 |
01 |
| 011 |
20846685 |
CONSOLE, RF (INCLS 2-10, 12-17) (TITANIUM) |
NG (AL0, UA6, UE1, UG1, 4AA, 4AJ) (EXC C3U, UPH, UPJ, U19) |
2010-2011 |
01 |
| 011 |
20846686 |
CONSOLE, RF (INCLS 2-10, 12-17) (SHALE) |
NG (AL0, LHD, UA6, UE1, UG1, 4AF, 4A5) (EXC C3U, UPH, UPJ, U19) |
2010-2011 |
01 |
| 011 |
20846679 |
CONSOLE, RF (INCLS 2-10, 12-17) (TITANIUM) |
NG (AL0, LHD, UA6, UE1, UG1, U19, 4AA, 4AJ) (EXC C3U, UPH, UPJ) (EXPORT) |
2010-2011 |
01 |
| 011 |
20846688 |
CONSOLE, RF (INCLS 2-10, 12-17) (SHALE) |
NG (AL0, LHD, UA6, UE1, UG1, U19, 4AF, 4A5) (EXC C3U, UPH, UPJ) (EXPORT) |
2010-2011 |
01 |
| 012 |
20846676 |
DISPLAY, I/P AIRBAG ARMING STATUS (PART OF 11) |
N (EXC U19) |
2010-2011 |
01 |
| 012 |
20846675 |
DISPLAY, I/P AIRBAG ARMING STATUS (PART OF 11) |
N (U19) (EXPORT) |
2010-2011 |
01 |
| 013 |
25924768 |
PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 11) (GRAY) |
N (UG1) |
2010-2011 |
01 |
| 013 |
25992324 |
PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 11) (BLACK) |
N (4AA, 4AF, 4AJ, 4A5) |
2010-2011 |
01 |
| 014 |
|
LAMP, F/FLR CNSL FLOOD (PART OF 11) |
|
2010-2011 |
|
| 015 |
13501111 |
TRANSMITTER, GARAGE DR OPENER (PART OF 11) |
N (UG1) |
2010-2011 |
01 |
| 016 |
11588920 |
SCREW, W/RND WA, M3.5X1.59X9.5, 6 THD, 7 O.D., GM512M, GMW3044 (PART OF 11) |
|
2010-2011 |
02 |
| 017 |
22769129 |
HARNESS, RF CNSL WRG (PART OF 11) |
N (AL0, LHD, UA6, UG1, UPH, UYY, U19) (EXC C3U) (EXPORT) |
2011-2011 |
01 |
| 017 |
20786008 |
HARNESS, RF CNSL WRG (PART OF 11) |
N (AL0, UA6, UE1, UG1) (EXC C3U) |
2010-2011 |
01 |
| 018 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 1) (8.977) |
|
2010-2011 |
AR |
| 019 |
11569965 |
NUT, RF CNSL BRKT (PART OF 1) (M4.2X1.41) (PUSH IN) (12.8 HOLE) (FOR .7-1.1 PANEL RNG) (10.219) |
NG |
2010-2011 |
03 |
