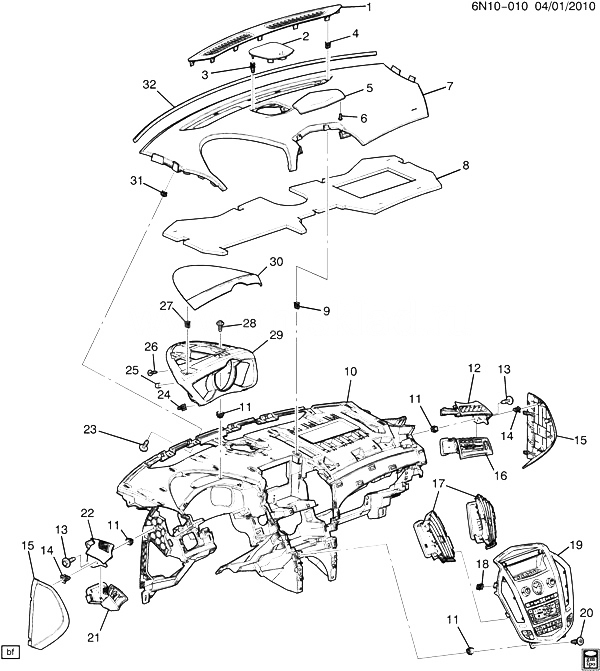

(6N10-010) 2010-2012 N ПРИБОРНАЯ ПАНЕЛЬ PART 1 TRIM/UPPER CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20870531 GRILLE, W/S DEFR NOZ (INCLS 4) (BLACK) N (4AA, 4AJ, 4A5) 2010-2012 01
001 20900342 GRILLE, W/S DEFR NOZ (INCLS 4) (BROWN) N (4AF) 2010-2012 01
002 25926825 GRILLE, RDO FRT SPKR (INCLS 3) (BLACK) N (4AA, 4AJ, 4A5) 2010-2012 01
002 20900341 GRILLE, RDO FRT SPKR (INCLS 3) (BROWNSTONE) N (4AF) 2010-2012 01
003 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 2) 2010-2012 04
004 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 1) 2010-2012 10
005 20908396 COVER, I/P UPR TR (INCLS 6) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (BLACK) (POP UP CVR FOR NAV DISPLAY) N (UXY, UYS, UYT, UYU, UYW, UYX, UYY, U44, 4AA, 4AJ, 4A5) 2011-2012 01
005 20908397 COVER, I/P UPR TR (INCLS 6) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (BROWNSTONE) (POP UP CVR FOR NAV DISPLAY) N (UXY, UYS, UYT, UYU, UYW, UYX, UYY, U44, 4AF) 2011-2012 01
005 20837457 COVER, I/P UPR TR (INCLS 6) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (BLACK) NG (UYE, UYF, UYZ, UZZ, 4AA, 4AJ, 4A5) (EXPORT) 2011-2012 01
005 20899813 COVER, I/P UPR TR (INCLS 6) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (BROWNSTONE) NG (UYE, UYF, UYZ, UZZ, 4AF) (EXPORT) 2011-2012 01
006 11570587 BOLT, I/P T/PNL (PART OF 5) (D 30 X 1.12 X 10) (10.260) N 2010-2012 AR
007 22891902 PANEL, I/P UPR TR (INCLS 9, 31) (BLACK) N (4A5) 2011-2012 01
007 22891904 PANEL, I/P UPR TR (INCLS 9, 31) (BROWN) (USE T/W SEAL-20910870) N (4AF) 2011-2012 01
007 22891903 PANEL, I/P UPR TR (INCLS 9, 31) (BLACK) N (LHD, 4AA, 4AJ) 2011-2012 01
008 20821135 INSULATOR, I/P N 2010-2012 01
009 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 7) 2010-2012 15
010 22821092 CARRIER, I/P (INCLS 11) N 2010-2012 01
011 11610157 NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 10) (10.701) 2010-2012 40
012 DEFLECTOR, I/P OTR AIR OTLT (PART OF 16) 2010-2012
013 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P OTR AIR OTLT) 2010-2012 02
014 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 15) 2010-2012 03
015 20944721 PANEL, I/P SI TR (INCLS 14) (BROWNSTONE) N (4AF) (EXC C99) 2011-2012 01
015 20944725 PANEL, I/P SI TR (INCLS 14) (BLACK) NG (4AA, 4AJ, 4A5) 2011-2012 01
015 20944726 PANEL, I/P SI TR (INCLS 14) (BROWNSTONE) NG (4AF) 2011-2012 01
015 20944728 PANEL, I/P SI TR (INCLS 14) (BLACK) (PUNCHED HOLE FOR PSIR DISABLE SW) NG (C99, 4AA, 4AJ, 4A5) 2011-2012 01
015 20944729 PANEL, I/P SI TR (INCLS 14) (BROWNSTONE) (PUNCHED HOLE FOR PSIR DISABLE SW) NG (C99, 4AF) 2011-2012 01
015 20944720 PANEL, I/P SI TR (INCLS 14) (BLACK) NG (4AA, 4AJ, 4A5) (EXC C99) 2010-2012 01
016 22786380 OUTLET, I/P OTR AIR (INCLS 12) (CHROME/BLACK) N (4AA, 4AJ, 4A5) 2010-2012 01
016 22786379 OUTLET, I/P OTR AIR (INCLS 12) (CHROME/BROWN) N (4AF) 2010-2012 01
017 22778658 OUTLET, I/P CTR AIR (INBOARD) N 2010-2012 01
017 22778659 OUTLET, I/P CTR AIR (INBOARD) N 2010-2012 01
018 CLIP, I/P (PART OF 19) 2010-2012
019 CONTROL, AM/FM STEREO CLK CD PLYR RDO (INCLS 18) (SEE GROUP 09.000 RADIO MOUNTING DISPLAY FOR DETAILED ILLUSTRATED VIEW) (ARGENT) 2010-2012
020 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) 2010-2012 02
021 22786377 OUTLET, I/P OTR AIR (INCLS 22) (CHROME/BLACK) N (4AA, 4AJ, 4A5) 2010-2012 01
021 22786376 OUTLET, I/P OTR AIR (INCLS 22) (CHROME/BROWN) N (4AF) 2010-2012 01
022 DEFLECTOR, I/P OTR AIR OTLT (PART OF 21) 2010-2012
023 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P UPR) 2010-2012 15
024 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 29) 2010-2012 02
025 25603681 INSULATOR, I/P CSTR TR PLT (PART OF 29) NG 2010-2012 10
026 11609465 BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 29) (8.977) 2010-2012 02
027 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 30) 2010-2012 05
028 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P CSTR TR PLT) 2010-2012 03
029 20890400 PLATE, I/P CSTR TR (INCLS 24-26) (CHROME) NG (4AA, 4AF, 4AJ, 4A5) 2010-2012 01
030 20773427 COVER, I/P CSTR TR PLT (INCLS 27) (BLACK) NG (4A5) 2010-2012 01
030 25926849 COVER, I/P CSTR TR PLT (INCLS 27) (BLACK) NG (4AA, 4AJ) 2010-2012 01
030 20899852 COVER, I/P CSTR TR PLT (INCLS 27) (BROWNSTONE) NG (4AF) 2010-2012 01
031 11610157 NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 7) (10.701) 2010-2012 15
032 20910870 SEAL, I/P TR PAD NG 2011-2012 01
