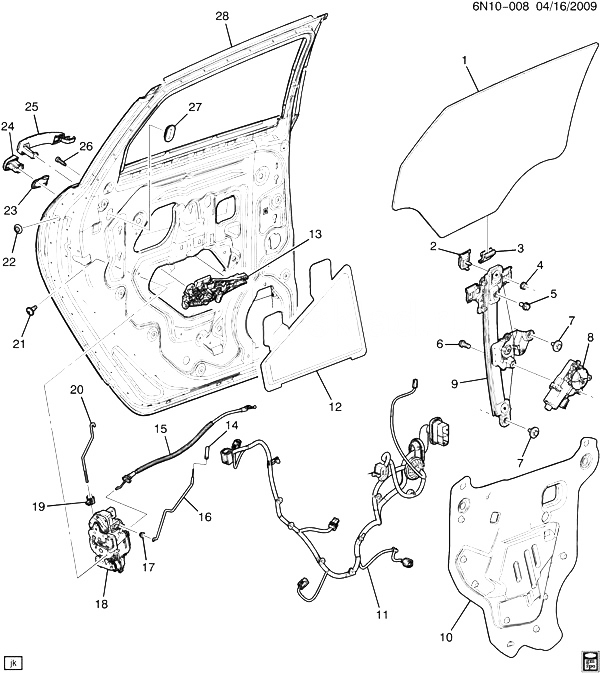

(6N10-008) 2010-2013 N ФУРНИТУРА ДВЕРИ/ЗАДНЯЯ PART 2 CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20816094 WINDOW, RR S/D N (EXC ANJ) 2010-2013 01
001 20816095 WINDOW, RR S/D N (EXC ANJ) 2010-2013 01
001 20816105 WINDOW, RR S/D N (ANJ) 2010-2013 01
001 20816106 WINDOW, RR S/D N (ANJ) 2010-2013 01
002 PLATE, RR S/D WDO REG BKG (PART OF 9) 2010-2013
003 CLIP, RR S/D WDO REG (PART OF 9) 2010-2013
004 NUT, RR S/D WDO REG (PART OF 9) 2010-2013
005 BOLT, RR S/D WDO REG (PART OF 9) 2010-2013
006 BOLT, RR S/D WDO REG MOT (PART OF 9) 2010-2013
007 11561596 BOLT, RR S/D WDO REG (10.783) N 2010-2013 06
008 25909230 MOTOR, RR S/D WDO REG (PART OF 9) (ACDelco #25909230) N 2010-2012 01
008 25909231 MOTOR, RR S/D WDO REG (PART OF 9) (ACDelco #25909231) N 2010-2012 01
009 22847911 REGULATOR, RR S/D WDO (INCLS 2-6, 8) (ACDelco #22847911) N 2010-2012 01
009 22847912 REGULATOR, RR S/D WDO (INCLS 2-6, 8) (ACDelco #22847912) N 2010-2012 01
010 20869126 DEFLECTOR, RR S/D WAT N 2010-2013 01
010 20869127 DEFLECTOR, RR S/D WAT N 2010-2013 01
011 20846361 HARNESS, RR S/D DR WRG N (EXC ATH, TSQ) 2011-2011 01
011 20846365 HARNESS, RR S/D DR WRG N (ATH, TSQ) 2011-2011 01
011 20846366 HARNESS, RR S/D DR WRG N (TSQ) 2011-2011 01
011 22751944 HARNESS, RR S/D DR WRG N (ATH) (EXC TSQ) 2011-2011 01
011 22751945 HARNESS, RR S/D DR WRG N (ATH) (EXC TSQ) 2011-2011 01
012 15929063 INSULATOR, RR S/D (RR DOOR INNER PANEL) N 2010-2013 02
013 13574804 BRACKET, RR S/D O/S HDL (INCLS 26) N (EXC ATH) 2010-2012 01
013 13505891 BRACKET, RR S/D O/S HDL (INCLS 26) (INCLS MICRO SWITCH) N (ATH) 2010-2012 01
013 13574803 BRACKET, RR S/D O/S HDL (INCLS 26) N (EXC ATH) 2010-2012 01
013 13505892 BRACKET, RR S/D O/S HDL (INCLS 26) N (ATH) 2010-2012 01
014 KNOB, RR S/D LKG ROD (*KIT1) 2010-2013
015 25778585 CABLE, RR S/D I/S HDL N 2010-2013 02
016 ROD, RR S/D LKG (*KIT1) 2010-2013
017 10399379 CLIP, RR S/D LKG ROD (PART OF 18) (OD 9.7 MM) N 2010-2013 02
018 13503767 LOCK, RR S/D (INCLS 17, 19) N (ATH) (EXC AF8) 2010-2012 01
018 13503769 LOCK, RR S/D (INCLS 17, 19) N (AF8, ATH) 2010-2012 01
018 13503770 LOCK, RR S/D (INCLS 17, 19) N (AF8, ATH) 2010-2012 01
018 13503786 LOCK, RR S/D (INCLS 17, 19) N (AF8) (EXC ATH) 2010-2012 01
018 13579540 LOCK, RR S/D (INCLS 17, 19) N (ATH) (EXC AF8) 2010-2012 01
018 13579551 LOCK, RR S/D (INCLS 17, 19) N (EXC AF8, ATH) 2010-2012 01
018 13579552 LOCK, RR S/D (INCLS 17, 19) N (EXC AF8, ATH) 2010-2012 01
018 13579553 LOCK, RR S/D (INCLS 17, 19) N (AF8) (EXC ATH) 2010-2012 01
019 13210733 CLIP, RR S/D O/S HDL ROD (PART OF 18) (PUSH-IN HINGED) (W/WINGED BEZEL) N 2010-2013 01
020 25778589 ROD, RR S/D O/S HDL N 2010-2013 01
020 25778590 ROD, RR S/D O/S HDL N 2010-2013 01
021 11570218 BOLT, RR S/D LK (6 X 1 X 17, 9.85) (16.330) N 2010-2013 06
022 13500936 PLUG, RR S/D ACC HOLE (19.5MM OD) (12.940) N 2010-2013 02
023 13502036 INSULATOR, RR S/D LK CYL BZL (10.550) N 2010-2013 02
024 25936881 COVER, RR S/D LK CYL OPG (PAINT TO MATCH) N 2010-2013 02
025 25936893 HANDLE, RR S/D O/S (PAINT TO MATCH) (W/CHROME INSERT) N 2010-2012 02
026 BOLT, RR S/D O/S HDL HSG (PART OF 13) 2010-2013
027 20880973 GROMMET, RR S/D LKG ROD (16.341) N 2011-2013 02
028 22800229 DOOR, RR SI (SEE GROUP 12.000 SHEET METAL/BODY FOR DETAILED ILLUSTRATED VIEW) N 2010-2013 01
028 22800230 DOOR, RR SI (SEE GROUP 12.000 SHEET METAL/BODY FOR DETAILED ILLUSTRATED VIEW) N 2010-2013 01
K01 25956865 KNOB, RR S/D LKG ROD (INCLS 14, 16) (CHROME) N 2010-2013 01
K01 25956866 KNOB, RR S/D LKG ROD (INCLS 14, 16) (CHROME) N 2010-2013 01
