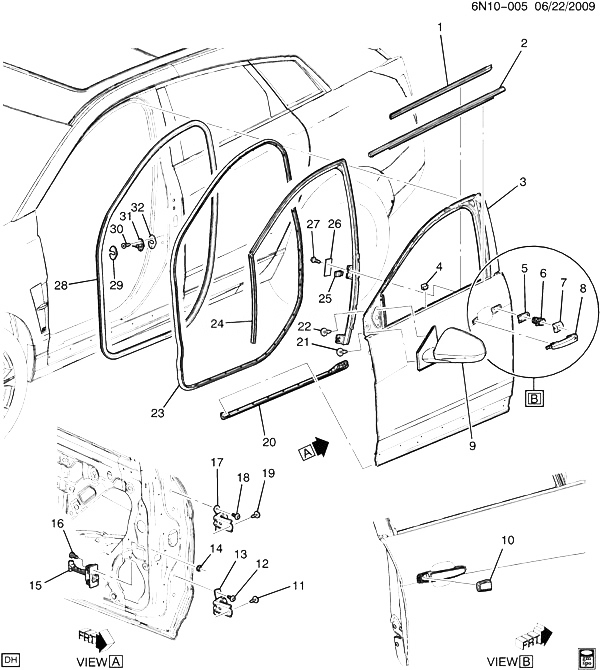

(6N10-005) 2010-2013 N ФУРНИТУРА ДВЕРИ/ПЕРЕДНЯЯ PART 1 CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22773041 SEALING STRIP, FRT S/D WDO INR NG 2010-2013 01
001 22773040 SEALING STRIP, FRT S/D WDO INR NG 2010-2013 01
002 20945538 MOLDING, FRT S/D WDO BELT RVL N 2010-2013 01
002 20945537 MOLDING, FRT S/D WDO BELT RVL N 2010-2013 01
003 DOOR, FRT SI (SEE GROUP 12.000 SHEET METAL/BODY PART 2-SIDE FRAME DOORS FOR DETAILED ILLUSTRATED VIEW) 2010-2013
004 13148147 RETAINER, FRT S/D TR (NON PUSH IN) (INNERMOST DR LOCATIONS - POS 2 AND 3) N 2010-2013 10
005 13502036 INSULATOR, FRT S/D LK CYL BZL N 2010-2013 02
006 20912091 CYLINDER, FRT S/D LK N (UA2, UA6) 2010-2013 01
007 25936865 BEZEL, FRT S/D LK CYL (PAINT TO MATCH) N 2010-2013 01
008 20827614 HANDLE, FRT S/D O/S (SEE GROUP 10.000 DOOR HARDWARE/FRONT PART 2 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) (W/CHROME INSERT) N (ATH) 2010-2012 02
008 25936893 HANDLE, FRT S/D O/S (SEE GROUP 10.000 DOOR HARDWARE/FRONT PART 2 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) (W/CHROME INSERT) N (EXC ATH) 2010-2013 02
009 MIRROR, O/S RR VIEW (SEE GROUP 10.000 MIRRORS/REAR VIEW-EXTERIOR FOR DETAILED ILLUSTRATEDVIEW) 2010-2013
010 25936881 COVER, FRT S/D LK CYL OPG (PAINT TO MATCH) (10.552) N 2010-2013 01
011 11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (RR S/D UPR HGE (BODY SI)) 2010-2013 04
012 11610041 BOLT, HFH W/SHLDR, M8X1.25X25, 12.55 THD, 21 OD, 10.9 (FRT S/D LWR HGE (DR SI)) 2010-2013 04
013 13501716 HINGE, FRT S/D LWR N 2010-2013 01
013 13501715 HINGE, FRT S/D LWR N 2010-2013 01
014 11503747 NUT, M6X1 (FRT S/D CHK LINK (DR SI)) 2010-2013 04
015 22792600 LINK, FRT S/D CHK N 2010-2013 02
016 11570007 BOLT, HEX W/CON WA, M8X1.25X23, 16 THD, 15 OD, 10.9, GMW3359 (BLACK), GMW146 (FRT S/D CHK LINK (BODY SI)) 2010-2013 02
017 13501716 HINGE, FRT S/D UPR (10.454) N 2010-2013 01
017 13501715 HINGE, FRT S/D UPR (10.454) N 2010-2013 01
018 11610041 BOLT, HFH W/SHLDR, M8X1.25X25, 12.55 THD, 21 OD, 10.9 (FRT S/D UPR HGE (DR SI)) 2010-2013 04
019 11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (FRT S/D LWR HGE (BODY SI)) 2010-2013 04
020 22740134 WEATHERSTRIP, FRT S/D LWR AUX N 2010-2013 01
020 22740135 WEATHERSTRIP, FRT S/D LWR AUX N 2010-2013 01
021 11570136 BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (O/S RR VIEW MIR) 2010-2013 04
022 11570779 SCREW, PAN HD W/CON WA, M6X1X23, 13 THD, 17 OD, 8.8, GMW4205 (O/S RR VIEW MIR) 2010-2013 02
023 20981187 WEATHERSTRIP, FRT S/D N 2010-2013 01
023 20981186 WEATHERSTRIP, FRT S/D N 2010-2013 01
024 20869144 WEATHERSTRIP, FRT S/D WDO (INCLS 25-27) N 2010-2013 01
024 20869145 WEATHERSTRIP, FRT S/D WDO (INCLS 25-27) N 2010-2013 01
025 NUT, FRT S/D WDO W/STR (PART OF 24) 2010-2013
026 RETAINER, FRT S/D WDO W/STR (PART OF 24) 2010-2013
027 11562426 BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 24) 2010-2013 04
028 25997401 WEATHERSTRIP, FRT S/D AUX N 2010-2013 01
028 25997402 WEATHERSTRIP, FRT S/D AUX N 2010-2013 01
029 13503106 COVER, FRT S/D LAT STKR (BLACK) N 2010-2013 02
030 11518445 SCREW, FLAT-HD HEX ALLEN, CSINK, M8X1.25X25, 18.05 THD, 14.7 OD, 8.8, GMW3044. (FRT S/D LAT STKR) 2010-2013 04
031 13503001 STRIKER, FRT S/D LK N 2010-2013 02
032 13500419 SPACER, FRT S/D LAT STKR N 2010-2013 AR
