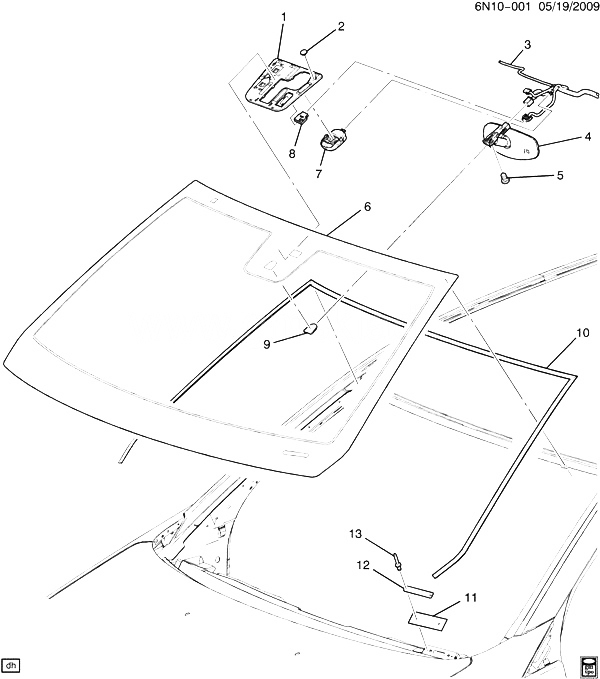

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25993681 |
BRACKET, M/FUNC ACSRY |
N |
2010-2012 |
01 |
| 002 |
|
PIN, I/S RR VIEW MIR CVR BRKT (PART OF 6) |
|
2010-2012 |
|
| 003 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 10.000 ROOF TRIM/INTERIOR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2012 |
|
| 004 |
20945096 |
MIRROR, I/S RR VIEW (INCLS 5) |
N (DD8, UVC, UYE, UYZ, UZZ) (EXC UE1) |
2011-2011 |
01 |
| 004 |
20945097 |
MIRROR, I/S RR VIEW (INCLS 5) |
N (DD8, UE1, UVC, UYE, UYF, UYZ) |
2011-2011 |
01 |
| 004 |
20866747 |
MIRROR, I/S RR VIEW (INCLS 5) |
N (DD8, UYW) (EXC UE1) |
2011-2012 |
01 |
| 004 |
13503047 |
MIRROR, I/S RR VIEW (INCLS 5) |
N (DD8, UVC, UXG, UXY, UYS, UYU, UYX, UYY, U44) (EXC UE1) |
2011-2011 |
01 |
| 004 |
13503047 |
MIRROR, I/S RR VIEW (INCLS 5) |
N (DD8, UYE, UYZ) (EXC UE1, UVC) |
2011-2012 |
01 |
| 004 |
22911377 |
MIRROR, I/S RR VIEW (INCLS 5) |
N (UE1) (EXC DD8) |
2010-2012 |
01 |
| 004 |
13584891 |
MIRROR, I/S RR VIEW (INCLS 5) (ROUND BOTTOM SHAPE) |
N (DD8, UE1, UYE, UYZ) (EXC UVC) |
2011-2012 |
01 |
| 004 |
13584891 |
MIRROR, I/S RR VIEW (INCLS 5) (ROUND BOTTOM SHAPE) |
N (DD8, UE1, UVC, UYS, UYT) |
2011-2012 |
01 |
| 005 |
|
BOLT, I/S RR VIEW MIR SWIV MT (PART OF 4) |
|
2010-2012 |
|
| 006 |
20882819 |
WINDSHIELD, (INCLS 2, 9, 10) |
N (EXC A26, CEC) |
2010-2011 |
01 |
| 006 |
20882821 |
WINDSHIELD, (INCLS 2, 9, 10) |
N (A26) (EXC CEC) (EXPORT) |
2010-2011 |
01 |
| 006 |
22841975 |
WINDSHIELD, (INCLS 2, 9, 10) |
N (CEC) |
2010-2012 |
01 |
| 007 |
13317106 |
SENSOR, W/S O/S MSTRE |
N |
2010-2012 |
01 |
| 008 |
13231068 |
SENSOR, I/S AIR MSTRE W/S TEMP (ACDelco #13231068) |
N (ASV) |
2010-2012 |
01 |
| 009 |
25653132 |
BRACKET, I/S RR VIEW MIR (PART OF 6) (10.187) |
N |
2010-2012 |
01 |
| 010 |
|
MOLDING, W/S UPR RVL (PART OF 6) |
|
2010-2012 |
|
| 011 |
|
TAPE, VIN PLT |
|
2010-2012 |
|
| 012 |
|
PLATE, VIN |
|
2010-2012 |
|
| 013 |
|
RIVET, VIN PLT |
|
2010-2012 |
|
