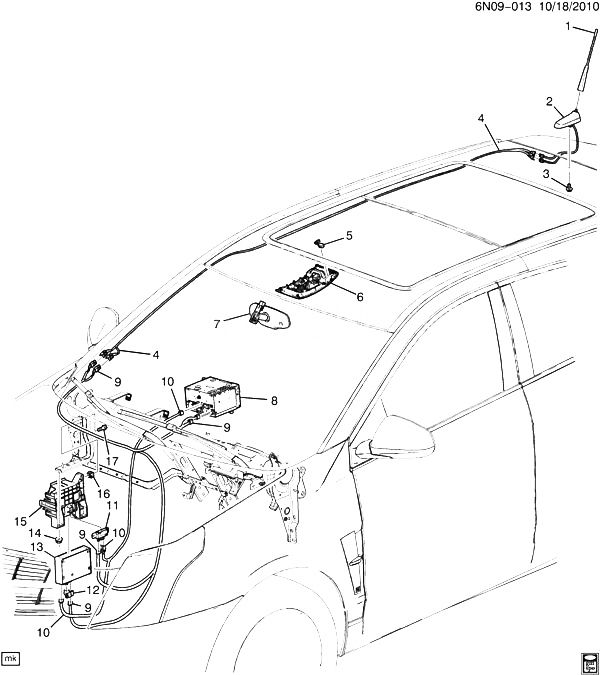

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22783398 |
ANTENNA, RDO (280MM) (ACDelco #22783398) |
N (EXC UBT) |
2010-2011 |
01 |
| 002 |
20870338 |
BASE, RDO ANT (INCLS 3) (BLACK) (ACDelco #20870338) |
N (UE1) (EXC U2K) |
2011-2012 |
01 |
| 002 |
20870347 |
BASE, RDO ANT (INCLS 3) (BLACK SEE NOTE N 1012 FOR PTM INFO) (ACDelco #20870347) |
N (UE1, U2K) |
2011-2012 |
01 |
| 002 |
20870356 |
BASE, RDO ANT (INCLS 3) (BLACK) (ACDelco #20870356) |
N (UBT) |
2011-2012 |
01 |
| 003 |
|
BOLT, RDO ANT (PART OF 2) |
|
2010-2012 |
|
| 004 |
20941494 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (HDLNR) (ACDelco #20941494) |
N (UE1, U2K) |
2011-2011 |
01 |
| 004 |
20941494 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (HDLNR) (9.647) (ACDelco #20941494) |
N (UE1, U2K) |
2011-2011 |
01 |
| 005 |
15241529 |
MICROPHONE, MOBILE TEL (PART OF 6) (2-WAY CAVITY) |
N (UE1) |
2010-2012 |
01 |
| 005 |
13242355 |
MICROPHONE, MOBILE TEL (PART OF 6) (3-WAY CAVITY) |
N (UG1, UPH, UYY, U19) (EXPORT) |
2011-2012 |
01 |
| 006 |
|
CONSOLE, RF (INCLS 5) (SEE GROUP 10.000 CONSOLE/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2012 |
|
| 007 |
20945097 |
MIRROR, I/S RR VIEW (SEE GROUP 10.000 WINDSHIELD TRIM HARDWARE FOR DETAILED ILLUSTRATED VIEW) |
N (DD8, UE1, UVC, UYE, UYF, UYZ) |
2011-2011 |
01 |
| 007 |
22911377 |
MIRROR, I/S RR VIEW (SEE GROUP 10.000 WINDSHIELD TRIM HARDWARE FOR DETAILED ILLUSTRATED VIEW) |
N (UE1) (EXC DD8) |
2010-2012 |
01 |
| 007 |
13584891 |
MIRROR, I/S RR VIEW (SEE GROUP 10.000 WINDSHIELD TRIM HARDWARE FOR DETAILED ILLUSTRATED VIEW) (ROUND BOTTOM SHAPE) |
N (DD8, UE1, UYE, UYZ) (EXC UVC) |
2011-2012 |
01 |
| 007 |
13584891 |
MIRROR, I/S RR VIEW (SEE GROUP 10.000 WINDSHIELD TRIM HARDWARE FOR DETAILED ILLUSTRATED VIEW) (ROUND BOTTOM SHAPE) |
N (DD8, UE1, UVC, UYS, UYT) |
2011-2012 |
01 |
| 008 |
|
RADIO, AM/FM STEREO VIDEO DISC PLYR NAVNMP3HARD DR (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2012 |
|
| 009 |
20941493 |
CABLE, DIGITAL RDO M/TEL VEH LOC ANT (IP) (ACDelco #20941493) |
N (UE1, UYE, UYZ, U2K) |
2011-2011 |
01 |
| 010 |
20941498 |
CABLE, VEH LOC ANT |
N (UE1, UYS, UYT) |
2011-2011 |
01 |
| 011 |
20960972 |
SPLITTER, NAVIGATION SIG |
N (UE1, UYS, UYT) |
2011-2012 |
01 |
| 012 |
15938939 |
ANTENNA, WIRELESS COMN INTERFACE (BLUETOOTH) (ACDelco #15938939) |
N (UE1, UPF) |
2010-2012 |
01 |
| 013 |
22739886 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #22739886) (LABELED 22739886) |
N (UE1, UPF) (EXC CZ2) |
2011-2011 |
01 |
| 013 |
22782871 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (W/O BLUETOOTH) (ACDelco #22782871) |
N (UE1) (EXC CZ2, UPF) |
2011-2011 |
01 |
| 013 |
22782872 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (W/BLUETOOTH) (ACDelco #22782872) (LABELED 22782872) |
N (UE1, UPF) (EXC CZ2) |
2011-2011 |
01 |
| 013 |
22795875 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (W/BLUETOOTH) (ACDelco #22795875) (LABELED 22795875) |
N (CZ2, UE1, UPF) (EXPORT) |
2011-2011 |
01 |
| 013 |
22744520 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #22744520) |
N (CZ2, UE1, UPF) (EXPORT) |
2011-2011 |
01 |
| 014 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COMMUNICATION INTERFACE MDL BRKT) |
|
2010-2012 |
02 |
| 015 |
25775990 |
BRACKET, COMMUNICATION INTERFACE MDL (INCLS 16) |
N (UE1) |
2010-2012 |
01 |
| 016 |
15235111 |
RETAINER, COMMUNICATION INTERFACE MDL (PUSH IN) (PART OF 15) (M4.2 X 1.41 X 12.7) (10.230) |
N |
2010-2012 |
01 |
| 017 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (COMN INTERFACE MDL BRKT) |
|
2010-2012 |
01 |
