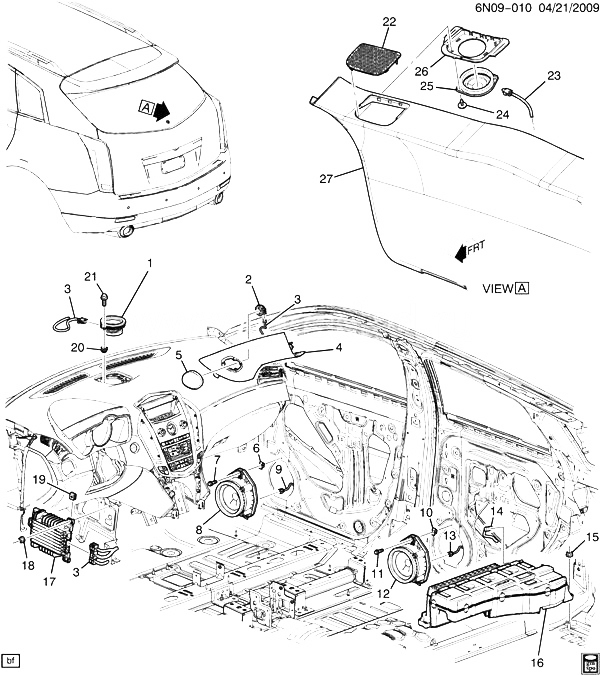

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25840446 |
SPEAKER, RDO FRT CTR (ACDelco #25840446) |
N (UQA, UQS) |
2010-2013 |
01 |
| 002 |
13240950 |
SPEAKER, RDO W/S SI G/MLDG (PART OF 4) (TWEETER) (ACDelco #13240950) |
N |
2010-2013 |
02 |
| 003 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMNET PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 004 |
|
MOLDING, W/S GARN (INCLS 2, 5) (SEE GROUP 14.000 TRIM/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 005 |
|
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 4) |
|
2010-2013 |
|
| 006 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
N |
2010-2013 |
02 |
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT S/D SPKR) (9.665) |
|
2010-2013 |
02 |
| 008 |
20970260 |
SPEAKER, RDO FRT S/D (ACDelco #20970260) |
N (UQA, UQS) |
2010-2013 |
02 |
| 009 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 010 |
11570654 |
NUT, RDO RR S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
N |
2010-2013 |
02 |
| 011 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO RR S/D SPKR) (9.665) |
|
2010-2013 |
02 |
| 012 |
20935387 |
SPEAKER, RDO RR S/D (ACDelco #20935387) |
N (UQA, UQS) |
2010-2013 |
02 |
| 013 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 10.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 014 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 015 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RDO R/CMPT SPKR) |
|
2010-2013 |
03 |
| 016 |
15950544 |
SPEAKER, RDO R/CMPT (ACDelco #15950544) |
N (UQA, UQS) |
2010-2013 |
01 |
| 017 |
20918769 |
AMPLIFIER, RDO SPKR (INCLS 19) (ACDelco #20918769) |
N (UQA, UQS) |
2010-2012 |
01 |
| 018 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RDO SPKR AMPF) |
|
2010-2013 |
03 |
| 019 |
|
NUT, RDO SPKR AMPF BRKT (PART OF 17) |
|
2010-2013 |
|
| 020 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RDO FRT SPKR) (10.701) |
|
2010-2013 |
02 |
| 021 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT CTR SPKR) |
|
2010-2013 |
02 |
| 022 |
20829217 |
GRILLE, RDO RR SPKR (PART OF 27) (BLACK) |
N (UQS, 4AA) |
2010-2012 |
01 |
| 022 |
20829216 |
GRILLE, RDO RR SPKR (PART OF 27) (BLACK) |
N (UQS, 4AA) |
2010-2012 |
01 |
| 022 |
20829218 |
GRILLE, RDO RR SPKR (PART OF 27) (TITANIUM) |
N (UQS, 4AJ) |
2010-2012 |
01 |
| 022 |
20829219 |
GRILLE, RDO RR SPKR (PART OF 27) (TITANIUM) |
N (UQS, 4AJ) |
2010-2012 |
01 |
| 022 |
20829220 |
GRILLE, RDO RR SPKR (PART OF 27) (SHALE) |
N (UQS, 4AF, 4A5) |
2010-2012 |
01 |
| 022 |
20829221 |
GRILLE, RDO RR SPKR (PART OF 27) (BLACK) |
N (UQS, 4AF, 4A5) |
2010-2012 |
01 |
| 022 |
22824390 |
GRILLE, RDO RR SPKR (PART OF 27) (BLACK) |
N (UQS, 4AA) |
2011-2012 |
01 |
| 022 |
22888013 |
GRILLE, RDO RR SPKR (PART OF 27) (SHALE) |
NG (UQS, 4AF, 4A5) |
2010-2012 |
01 |
| 023 |
22776600 |
HARNESS, L/GATE JPR WRG (SEE GROUP 12.000 LIFT GATE HARDWARE FOR DETAILED ILLUSTRATED VIEW) |
N |
2010-2012 |
01 |
| 024 |
11609462 |
SCREW, M4.2X1.41X13, GMW4205 (RDO L/GATE SPKR) |
|
2010-2013 |
04 |
| 025 |
15284791 |
SPEAKER, RDO L/GATE (MOLDING) (ACDelco #15284791) |
N (UQS) |
2010-2013 |
02 |
| 026 |
20788122 |
HOUSING, RDO RR SPKR (ACDelco #20788122) |
N (UQA, UQS) |
2010-2013 |
01 |
| 026 |
20788123 |
HOUSING, RDO RR SPKR (ACDelco #20788123) |
N (UQA, UQS) |
2010-2013 |
01 |
| 027 |
|
PANEL, L/GATE LWR TR FIN (INCLS 22) (SEE GROUP 14.000 TRIM/LIFTGATE FOR DETAILED ILLUSTRATED VIEW) (BLACK) |
|
2010-2013 |
|
