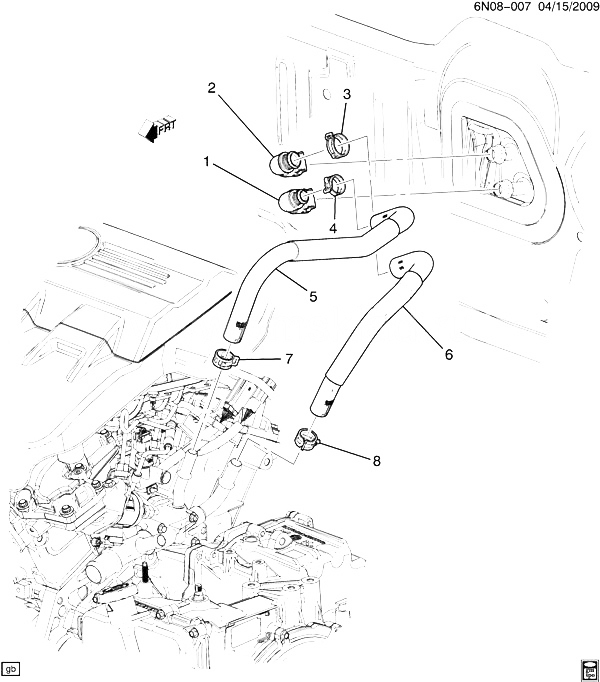

(6N08-007) 2011 N ШЛАНГИ И ТРУБКИ/ОБОГРЕВАТЕЛЬ (LF1/3.0Y) CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20778498 CONNECTOR, HTR OTLT HOSE (OUTLET) N (LF1) 2010-2011 01
002 09202168 CONNECTOR, HTR INL HOSE N (LF1) 2010-2011 01
003 90572594 CLAMP, HTR INL HOSE (GRAY) (27 NOM DIA, 12 WIDTH) (SPRINGBAND) N (LF1) 2010-2011 01
004 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR OTLT HOSE) 2010-2013 01
005 20795588 HOSE, HTR OTLT N (LF1) 2010-2011 01
006 20795120 HOSE, HTR INL N (LF1) 2010-2011 01
007 20778498 CONNECTOR, HTR OTLT HOSE (OUTLET) N (LF1) 2010-2011 01
008 90572594 CLAMP, HTR INL HOSE (GRAY) (27 NOM DIA, 12 WIDTH) (SPRINGBAND) N (LF1) 2010-2011 01
